What’s New 🔥THRU-BOLT™ ULTRA, The Newest Certified Mechanical Expansion Anchor with extreme tensile strength and shear load capacities

24 March 2026
What’s New 🔥THRU-BOLT™ ULTRA, The Newest Certified Mechanical Expansion Anchor with extreme tensile strength and shear load capacities
On this page

THRU-BOLT™ ULTRA raises the bar for mechanical expansion anchors.

ICCONS’ THRU-BOLT™ ULTRA, a new mechanical expansion anchor designed for high-performance anchoring in concrete. Built for medium to heavy-duty applications, THRU-BOLT™ ULTRA combines high approved tensile and shear loads with variable anchorage depths, giving installers and engineers more flexibility across a wide range of jobs.

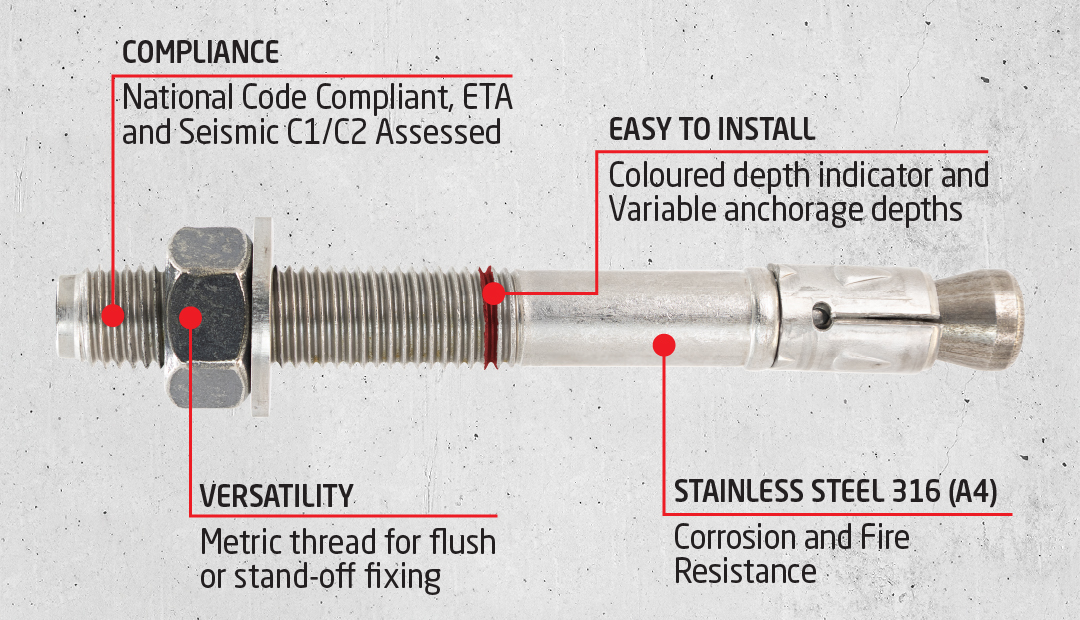

Key Features of THRU-BOLT™ ULTRA

  • Highest approved tensile and shear loads
  • Variable anchorage depths
  • Shallow minimum anchorage depths
  • ETA assessed for cracked and non-cracked concrete
  • Complies with AS 5216
  • NCC compliant
  • Seismic categories C1/C2
  • Fire resistance (R30–R120)
  • Optional adhesive filling (with Filling Washer) for enhanced seismic performance
  • Fast installation with fewer turns and coloured depth indicator
  • Approved for Dynamic (shock) loads by Swiss Federal Office
  • Suitable for Fiber-reinforced concrete (M8 and M10 sizes)
  • M20 version requires minimal borehole cleaning (no brushing needed)

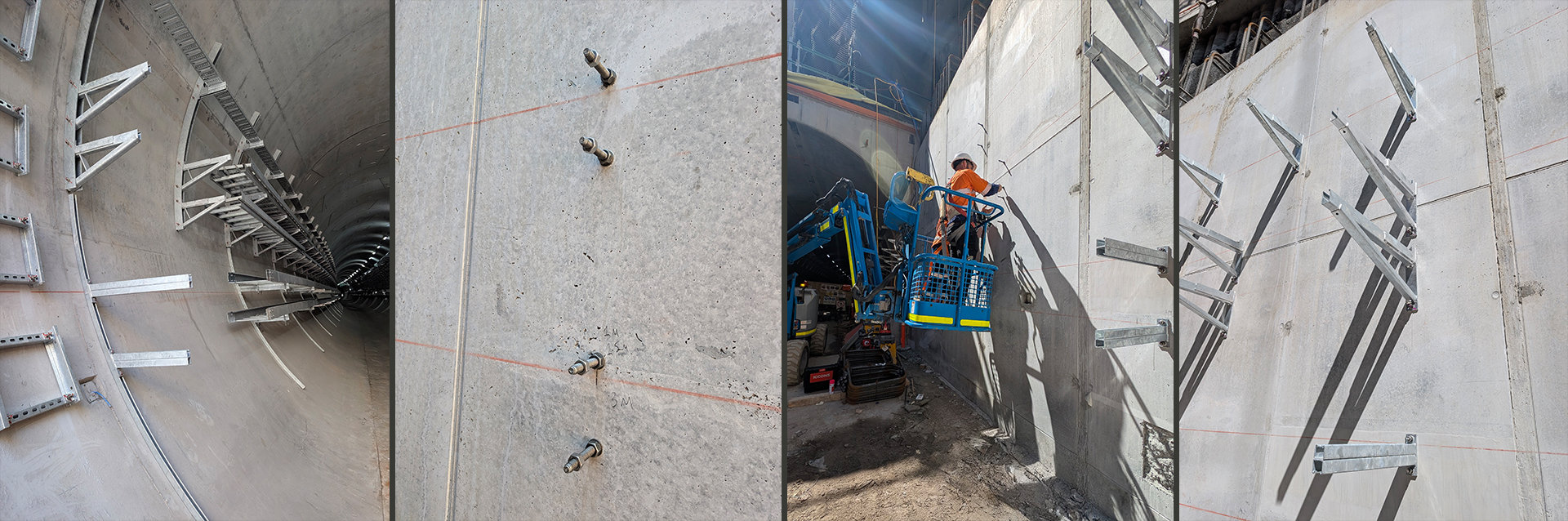

Applications

  • Structural steelwork
  • Civil Infrastructure/ Bridgework installation
  • Mechanical, Electrical, and Plumbing systems (cable trays/ladders, pipe supports, HVAC ducts, and utility channels)
  • Facades & Cladding
  • Fixing heavy-duty brackets, shelving, and supports
  • Seismic Applications

Flexible embedment for demanding applications

One of the key advantages of THRU-BOLT™ ULTRA is its variable anchorage depth design. At standard embedment, it delivers high load performance, while deeper settings can provide even greater capacity. Reduced embedment options can also help minimise drilling effort and reduce the chance of reinforcement strikes on site.

This flexibility makes THRU-BOLT™ ULTRA a practical option where installation conditions vary from project to project, or where fixture thickness and embedment requirements need to be balanced carefully.

Designed for speed on site

THRU-BOLT™ ULTRA™ has been designed to support faster installation, with fewer turns required during setting and a coloured visual depth indicator to assist with embedment confirmation. For installers working across repetitive anchoring tasks, those details can make on-site installation more efficient and consistent, leading to savings.

Note: M20 version requires minimal borehole cleaning, with no brushing needed under the stated installation method.

Built for structural and non-structural concrete anchoring

THRU-BOLT™ ULTRA is designed for use in cracked and non-cracked concrete and is suited to a broad range of structural and non-structural applications such as structural steelwork, civil infrastructure and bridgework installation, MEP systems such as cable trays, ladders, pipe supports, HVAC ducts and utility channels, as well as façades, cladding, heavy-duty brackets, shelving, supports, seismic applications, timber construction and support structures.

Engineered for approvals, compliance and performance

THRU-BOLT™ ULTRA is ETA assessed for C1 and C2 seismic performance in cracked and non-cracked concrete. It also complies with AS 5216 and is NCC compliant and is fire resistance (R30 - R120).

It is approved for dynamic shock loads by the Swiss Federal Office, and M8 and M10 sizes are suitable for fibre-reinforced concrete. Optional adhesive filling with a filling washer is also available for enhanced seismic performance.

Takeaways and Benefits

THRU-BOLT™ ULTRA™ gives trades, engineers and specifiers a mechanical expansion anchor that combines high approved load performance with genuine installation flexibility. Variable anchorage depths help adapt the fixing to the job, shallow minimum embedment options can reduce drilling effort, and features like the visual depth indicator and fewer installation turns support faster, more controlled installation. With ETA assessed for C1 and C2 seismic performance in cracked and non-cracked concrete, fire resistance, NCC compliance and AS 5216 compliance, it is a strong option for projects where performance and compliance both need to be addressed.

Range Overview

  • Available in 316 Stainless Steel (A4)
  • Size range from M8 to M20
  • Includes multiple length options across the range to suit different fixture thicknesses and embedment requirements
  • Designed to support minimum, standard and maximum anchorage depth configurations depending on size and application
  • Suitable for a wide range of structural and non-structural concrete fixing applications
  • M8 and M10 fastener sizes are suitable for use in fibre-reinforced concrete.
  • M20 option allows minimal borehole cleaning during installation
  • Compatible with ICCONS DESIGN PRO for AS 5216 compliant anchor design workflows
316 Stainless
Steel (A4)
Part No.		 Item
Description		 Drill
Diameter (mm)		 Min. Drill
Depth (mm)		 Min. Anchor
Embedment
hnom (mm)		 Max. Fixture
Thickness
tfix (mm)		 Head/
Socket
Size (mm)		 Installation
Torque (Nm)		 ETA
Option		 SEISMIC
Assessment		 Qty
TBU08065SS 8 x 65mm 8 45 43 10 13 15 Option 1 C1 & C21 100
TBU08075SS 8 x 75mm 8 45 43 20 13 15 Option 1 C1 & C21 100
TBU08095SS 8 x 95mm 8 45 43 40 13 15 Option 1 C1 & C21 100
TBU08115SS 8 x 115mm 8 45 43 60 13 15 Option 1 C1 & C21 100
TBU10075SS 10 x 75mm 10 51 49 15 17 40 Option 1 C1 & C2 50
TBU10095SS 10 x 95mm 10 51 49 35 17 40 Option 1 C1 & C2 50
TBU10100SS 10 x 100mm 10 51 49 40 17 40 Option 1 C1 & C2 50
TBU10110SS 10 x 110mm 10 51 49 50 17 40 Option 1 C1 & C2 50
TBU10130SS 10 x 130mm 10 51 49 70 17 40 Option 1 C1 & C2 50
TBU12085SS 12 x 85mm 12 63 60 10 19 60/55 Option 1 C1 & C2 25
TBU12105SS 12 x 105mm 12 63 60 30 19 60/55 Option 1 C1 & C2 25
TBU12110SS 12 x 110mm 12 63 60 35 19 60/55 Option 1 C1 & C2 25
TBU12125SS 12 x 125mm 12 63 60 50 19 60/55 Option 1 C1 & C2 25
TBU12145SS 12 x 145mm 12 63 60 70 19 60/55 Option 1 C1 & C2 25
TBU12160SS 12 x 160mm 12 63 60 85 19 60/55 Option 1 C1 & C2 25
TBU16115SS 16 x 115mm 16 82 79 15 24 110/100 Option 1 C1 & C2 20
TBU16135SS 16 x 135mm 16 82 79 35 24 110/100 Option 1 C1 & C2 20
TBU16145SS 16 x 145mm 16 82 79 45 24 110/100 Option 1 C1 & C2 20
TBU16170SS 16 x 170mm 16 82 79 70 24 110/100 Option 1 C1 & C2 20
TBU20165SS 20 x 165mm 20 107 104 40 30 160/200 Option 1 C1 & C2 10
TBU20195SS 20 x 195mm 20 107 (121)2 104 70 30 160/200 Option 1 C1 & C2 10


THRU-BOLT™ ULTRA FAQ

1. What is THRU-BOLT™ ULTRA used for?
THRU-BOLT™ ULTRA is used for medium to heavy-duty anchoring into cracked and non-cracked concrete. Typical applications include structural steelwork, civil infrastructure, MEP supports, façade systems, cladding, heavy-duty brackets, shelving and seismic applications.

2. Can THRU-BOLT™ ULTRA be used in cracked concrete?

3. Is THRU-BOLT™ ULTRA AS 5216 compliant?

4. Is THRU-BOLT™ ULTRA NCC compliant?
Yes. ICCONS THRU-BOLT™ ULTRA is NCC compliant.

5. Is THRU-BOLT™ ULTRA seismic assessed?
Yes. THRU-BOLT™ ULTRA is assessed for seismic categories C1 and C2. Optional adhesive filling with a filling washer is also available for enhanced seismic performance.

6. Is THRU-BOLT™ ULTRA fire resistant?
Yes. THRU-BOLT™ ULTRA is fire resistance (R30-R120).

7. What sizes does THRU-BOLT™ ULTRA come in?
The range include sizes from M8 through to M20.

8. What finishes are available for THRU-BOLT™ ULTRA?
THRU-BOLT™ ULTRA comes in 316 Stainless Steel (A4) for high corrosion resistance.

9. What makes THRU-BOLT™ ULTRA different from a standard mechanical anchor?
THRU-BOLT™ ULTRA is engineered to deliver high approved tensile and shear capacities, with flexible anchorage depths and shallow minimum embedment options. It also allows for close edge distances and spacing, with faster installation via a visual depth indicator and fewer nut turns to achieve the specified torque. Additionally, it has been ETA assessed for C1 and C2 seismic performance in both cracked and non-cracked concrete. Additionally, it has been ETA assessed for C1 and C2 seismic performance in both cracked and non-cracked concrete.

10. Is THRU-BOLT™ ULTRA available now?
Yes. THRU-BOLT™ ULTRA™ is available now.

11. Where to buy THRU-BOLT™ ULTRA in Australia?
You can purchase ICCONS® THRU-BOLT™ ULTRA through authorised ICCONS® distributors across Australia. Use the ICCONS® online "Find a Dealer" tool to locate your nearest distributor.

For more information, contact ICCONS® engineers or explore our comprehensive design tools and technical resources.

Note: ICCONS® has taken extreme care in compiling the above information. ICCONS® may change our products at any time as may our competitors. ICCONS® believe the information is true and correct as of the date of this article.
