BoxBolt

Product Summary

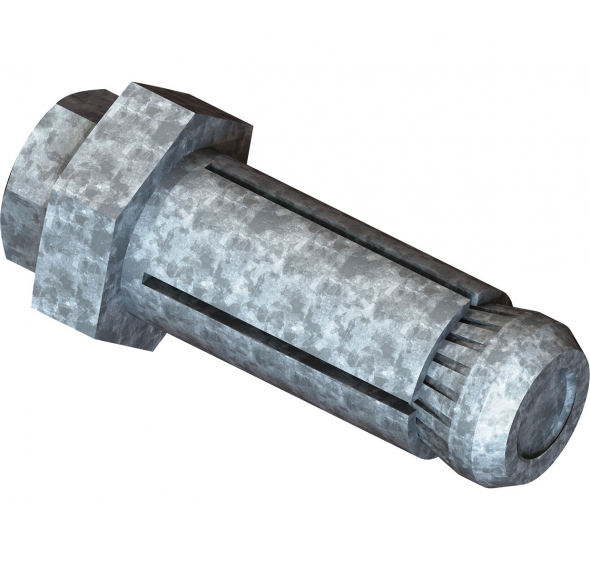

BoxBolt is a fully tested and approved blind connection solution for connecting to hollow section steel or where access is restricted to one side only. The BoxBolt is suitable for use with rectangular, square and even circular hollow sections. The BoxBolt features a hexagon head design to aid installation with a standard torque wrench. The BoxBolt is available in three finishes; Zinc Plated for the less hostile environments, Hot Dip Galvanized for the more aggressive environments, and Stainless Steel for the most demanding of applications. Combined with three lengths per size of BoxBolt make it extremely flexible to suit its environment and application.

Exclusively for ICONX Account Holders. Apply Today.

Browse the ICCONS Dealer Network to find one near you.

See Product List Available in 23 variations
  • Product List
  • Features & Applications
  • Downloads
  • Video

Specifications

Part No / Finish
Description
Drill Diameter
Max Material Thickness
Max Torque
Quantity
UoM
Price

Zinc
Gal
BXB-BQ1G08
BOXBOLT M8 X 50 - SIZE 1 HDG ETA HSS CAVITY BOLT
14
5 - 26
25
100
BXB-BQ1G10
BOXBOLT M10 X 50 - SIZE 1 HDG ETA HSS CAVITY BOLT
18
5 - 23
45
100
BXB-BQ1G12
BOXBOLT M12 X 55 - SIZE 1 HDG ETA HSS CAVITY BOLT
20
5 - 25
80
100
BXB-BQ1G16
BOXBOLT M16 X 75 - SIZE 1 HDG ETA HSS CAVITY BOLT
26
5 - 35
190
100
BXB-BQ1G20
BOXBOLT M20 X 100 - SIZE 1 HDG ETA HSS CAVITY BOLT
33
8 - 42
300
100
BXB-BQ1Z08
BOXBOLT M8 X 50 - SIZE 1 ZINC ETA HSS CAVITY BOLT
14
5 - 26
25
100
BXB-BQ1Z10
BOXBOLT M10 X 50 - SIZE 1 ZINC ETA HSS CAVITY BOLT
18
5 - 23
45
100
BXB-BQ1Z12
BOXBOLT M12 X 55 - SIZE 1 ZINC ETA HSS CAVITY BOLT
20
5 - 25
80
100
BXB-BQ1Z16
BOXBOLT M16 X 75 - SIZE 1 ZINC ETA HSS CAVITY BOLT
26
5 - 35
190
100
BXB-BQ1Z20
BOXBOLT M20 X 100 - SIZE 1 ZINC ETA HSS CAVITY BOLT
33
8 - 42
300
100
BXB-BQ2G08
BOXBOLT M8 X 70 - SIZE 2 HDG ETA HSS CAVITY BOLT
14
18 - 46
25
100
BXB-BQ2G10
BOXBOLT M10 70 - SIZE 2 HDG ETA HSS CAVITY BOLT
18
18 - 43
45
100
BXB-BQ2G12
BOXBOLT M12 X 80 - SIZE 2 HDG ETA HSS CAVITY BOLT
20
20 - 50
80
100
BXB-BQ2G16
BOXBOLT M16 X 100 - SIZE 2 HDG ETA HSS CAVITY BOLT
26
30 - 60
190
100
BXB-BQ2G20
BOXBOLT M20 X 120 - SIZE 2 HDG ETA HSS CAVITY BOLT
33
35 - 72
300
100
BXB-BQ2Z12
BOXBOLT M12 X 80 - SIZE 2 ZINC ETA HSS CAVITY BOLT
20
20 - 50
80
100
BXB-BQ2Z16
BOXBOLT M16 X 100 - SIZE 2 ZINC ETA HSS CAVITY BOLT
26
30 - 60
190
100
BXB-BQ3G08
BOXBOLT M8 X 90 - SIZE 3 HDG ETA HSS CAVITY BOLT
14
30 - 66
25
100
BXB-BQ3G10
BOXBOLT M10 X 90 - SIZE 3 HDG ETA HSS CAVITY BOLT
18
35 - 63
45
100
BXB-BQ3G12
BOXBOLT M12 X 100 - SIZE 3 HDG ETA HSS CAVITY BOLT
20
40 - 70
80
100
BXB-BQ3G20
BOXBOLT M20 X 150 - SIZE 3 HDG ETA HSS CAVITY BOLT
33
65 - 102
300
100
BXB-BQ3Z10
BOXBOLT M10 X 90 - SIZE 3 ZINC ETA HSS CAVITY BOLT
18
35 - 63
45
100
BXB-BQ3Z12
BOXBOLT M12 X 100 - SIZE 3 ZINC ETA HSS CAVITY BOLT
20
40 - 70
80
100

Features & Applications

Features
• Best approved performance
• Lowest labor cost
• Easy to use
• All steel section shapes
• Approved and sure loads
• Aesthetic finish
• Ideal for combined loads
• Different corrosion resistent options

Downloads

Downloads

Video

Video

BoxBolt is a fully tested and approved blind connection solution for connecting to hollow section steel or where access is restricted to one side only. The BoxBolt is suitable for use with rectangular, square and even circular hollow sections. The BoxBolt features a hexagon head design to aid installation with a standard torque wrench. The BoxBolt is available in three finishes; Zinc Plated for the less hostile environments, Hot Dip Galvanized for the more aggressive environments, and Stainless Steel for the most demanding of applications. Combined with three lengths per size of BoxBolt make it extremely flexible to suit its environment and application.

BoxBolt is a fully tested and approved blind connection solution for connecting to hollow section steel or where access is restricted to one side only. The BoxBolt is suitable for use with rectangular, square and even circular hollow sections. The BoxBolt features a hexagon head design to aid installation with a standard torque wrench. The BoxBolt is available in three finishes; Zinc Plated for the less hostile environments, Hot Dip Galvanized for the more aggressive environments, and Stainless Steel for the most demanding of applications. Combined with three lengths per size of BoxBolt make it extremely flexible to suit its environment and application.
