Thunderbolt PRO - Thru-Screw

Product Summary

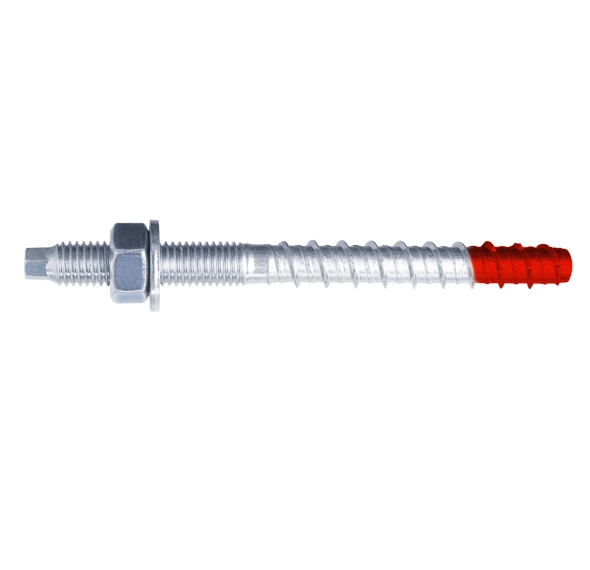

Introducing the Thunderbolt®PRO Thru-Screw – the latest addition to our already extensive Screw-Bolt range.
This innovative fastener gives you the performance of a Thunderbolt®PRO Screw-bolt with the adjustability of a threaded stud. It features a metric external thread, allowing fitment for a wide variety of nut, washer, and/or coupler combinations, as well as enabling easy adjustment or levelling of the fixture.
Thanks to its external thread design, the Thunderbolt®PRO can also be pre-installed, making it ideal for fastening and packing out stand-off base plates.
The range is available in Mechanically Galvanised and 316 (A4) Stainless-Steel finishes, with both finishes available in 8mm (with M10), 10mm (with M12), while the mechanical Gal range also includes 14mm (with M16) threaded section.
Both the Galvanised and Stainless-Steel versions are Option 1 cracked concrete assessed, AS 5216 compliant and fire assessed. Additionally, the Mechanically Galvanised version is Seismic C1 & C2 assessed, while the Stainless-Steel version is Seismic C1

Add to Sitebox Available in 10 variations

Submit your Sitebox and an ICCONS representative will be in touch.

Find a dealer

Browse the ICCONS Dealer Network to find one near you.

Dealer Login
Back
  • Product List
  • Features & Applications
  • Downloads

Specifications

Part No / Finish
Description
Drill Diameter
Head Type
Embedment Depth
Max Material Thickness
Head Width
Clearance Hole
External Thread
ETA Approval
ETA Approval
Max Torque
Quantity
UoM
Price

Gal
SS
SXTBTS08110G-M10-29
THRU-SCREW 8 X 110MM(M10) GAL - ETA OPT 1
8
HEX
65
29
7
12
M10
Option 1
350
100
SXTBTS08110SS-M10-29
THRU-SCREW 8 X 110MM(M10) 316 SS - ETA OPT 1
8
HEX
65
29
7
12
M10
Option 1
600
100
SXTBTS08130G-M10-49
THRU-SCREW 8 X 130MM(M10) GAL - ETA OPT 1
8
HEX
65
49
7
12
M10
Option 1
350
100
SXTBTS08130SS-M10-49
THRU-SCREW 8 X 130MM(M10) 316 SS - ETA OPT 1
8
HEX
65
49
7
12
M10
Option 1
600
100
SXTBTS10120G-M12-16
THRU-SCREW 10 X 120MM(M12) GAL - ETA OPT 1
10
HEX
85
16
8
14
M12
Option 1
600
100
SXTBTS10120SS-M12-16
THRU-SCREW 10 X 120MM(M12) 316 SS - ETA OPT 1
10
HEX
85
16
8
14
M12
Option 1
600
100
SXTBTS10140G-M12-36
THRU-SCREW 10 X 140MM(M12) GAL - ETA OPT 1
10
HEX
85
36
8
14
M12
Option 1
600
100
SXTBTS10140SS-M12-36
THRU-SCREW 10 X 140MM(M12) 316 SS - ETA OPT 1
10
HEX
85
36
8
14
M12
Option 1
600
100
SXTBTS14155G-M16-16
THRU-SCREW 14 X 155MM(M16) GAL - ETA OPT 1
14
HEX
115
16
12
18
M16
Option 1
600
100
SXTBTS14185G-M16-46
THRU-SCREW 14 X 185MM(M16) GAL - ETA OPT 1
14
HEX
115
46
12
18
M16
Option 1
600
100

Features & Applications

Features:
• Mech Gal & SS options
• External metric thread
• ETA Option 1 Cracked Concrete
• Seismic C1 (Gal & SS)
• Seismic C2 (Gal)
• Fully Removable and adjustable
• ICCONS DesignPRO ready

Applications:
• Steel base plates
• Fencing
• Shelving & Racking
• Civil Infrastructure/ Bridgework
• Telecommunications
• Balustrading
• Permanent or temporary applications
