Thunderbolt PRO - Track Hawk

Product Summary

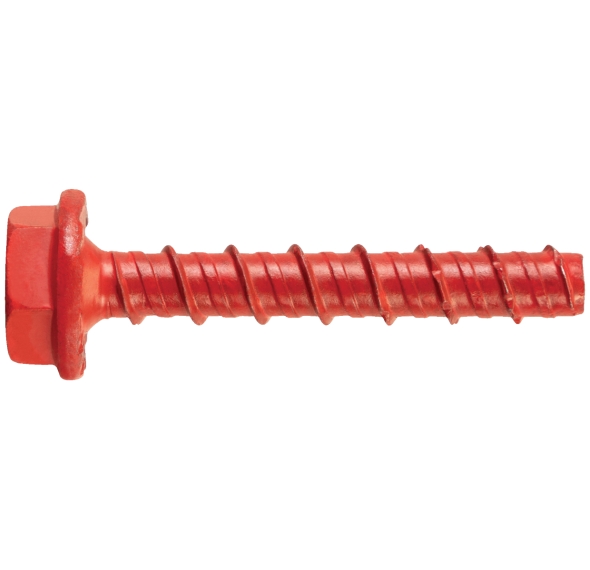

The Thunderbolt PRO Track Hawk is the ultimate Seismic Screw-Bolt for light gauge steel to concrete applications, designed for maximum strength and reliability in seismic environments. With its all red coating, it offers easy anchor identification and certification, ensuring compliance with safety standards. The large 13mm hex head not only provides a simple installation process but also offers excellent visual identification and unmatched track clamping force. For added versatility, the Torx 30 internal drive allows an alternative installation method, while stamped head markings make it easy to identify the diameter, length, and ICCONS ID for traceability.
This fastener features an asymmetric thread profile that delivers unparalleled grip, ensuring a strong bite into concrete. Lightning lock under head serrations provide additional clamping performance, making the connection more secure. The Nautilus C coating enhances corrosion resistance, making it durable for long-term use in harsh environments. Whether you're working on new construction or retrofitting existing structures, the Thunderbolt PRO Track Hawk is the reliable solution for securing light gauge steel to concrete with confidence.

Exclusively for ICONX Account Holders. Apply Today.

Browse the ICCONS Dealer Network to find one near you.

  • Specifications
  • Features & Applications
  • Downloads

Specifications

Part No / Finish
Description
Drill Diameter
Head Type
Embedment Depth
Max Material Thickness
Head Width
Clearance Hole
ETA Approval
Quantity
UoM
Price

Gal
SXTBTH06043G
THUNDERBOLT PRO HEX TRACK HAWK 6 X 43MM GAL - ETA SEISMIC
6
13 EXT / T30 INT
35
5
15
9
Option 1 & RNSS
100

Features & Applications

Features:
• ALL Red coating for easy anchor ID and certification
• Large 13mm hex head for easy install, visual ID and unmatched track clamping force
• Torx 30 internal drive as alternative installation method
• Stamped head markings for easy identification and traceability (diameter, length & ICCONS ID)
• Asymmetric thread profile for unparalleled bite into concrete
• Lightning lock under head serrations for additional clamping performance
• Nautilus C coating for increased corrosion performance
