STA-EVO Heavy Duty Anchor Bolt - Hex Head

New NCC
STA-EVO Heavy Duty Anchor Bolt - Hex Head

Product Summary

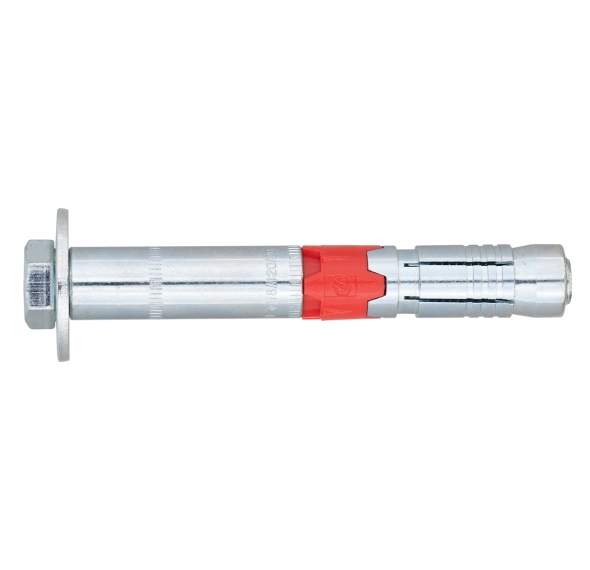

The ICCONS STA-EVO Hex is a heavy-duty mechanical expansion anchor for structural and safety-critical fixings in concrete. It uses a precision-engineered cone and expansion body so that, when tightened to the specified torque, the anchor expands evenly against the drilled hole. The one-piece sleeve splits into three segments that open together, spreading the load evenly around the hole rather than concentrating it at one point.
The STA-EVO Hex is suitable for cracked and non-cracked concrete, is compliant with seismic performance categories C1 and C2, and is fire rated. The anti-rotation segment holds the anchor in place during tightening, so installers can reach the specified torque without the anchor spinning in the hole.
Designed as a through-fixing, the STA-EVO Hex installs through the fixture in a single operation, keeping hole alignment accurate and installation efficient. It is available in sizes M8 to M24, and design support is available through ICCONS DesignPRO anchor design software.

Add to Sitebox Available in 12 variations

Submit your Sitebox and an ICCONS representative will be in touch.

Browse the ICCONS Dealer Network to find one near you.

  • Product List
  • Features & Applications
  • Downloads

Specifications

Part No
Description
Drill Diameter
Clearance Hole
Max Material Thickness
Thread Length
Head Width
Quantity
UoM
Price
STAEVO12090
HD SEISMIC HEX HEAD M8 X 90
12
14
15
90
13
100
STAEVO12120
HD SEISMIC HEX HEAD M8 X 120
12
14
45
120
13
100
STAEVO16100
HD SEISMIC HEX HEAD M10 X 100
16
18
15
100
17
100
STAEVO16120
HD SEISMIC HEX HEAD M10 X 120
16
18
35
120
17
100
STAEVO16140
HD SEISMIC HEX HEAD M10 X 140
16
18
55
140
17
100
STAEVO18110
HD SEISMIC HEX HEAD M12 X 110
18
20
10
110
19
100
STAEVO18120
HD SEISMIC HEX HEAD M12 X 120
18
20
20
120
19
100
STAEVO18150
HD SEISMIC HEX HEAD M12 X 150
18
20
50
150
19
100
STAEVO24140
HD SEISMIC HEX HEAD M16 X 140
24
26
20
140
24
100
STAEVO24170
HD SEISMIC HEX HEAD M16 X 170
24
26
50
170
24
100
STAEVO28170
HD SEISMIC HEX HEAD M20 X 170
28
31
20
170
30
100
STAEVO28200
HD SEISMIC HEX HEAD M20 X 200
28
31
50
200
30
100

Features & Applications

Features
• Mechanical expansion anchor designed for high tension and shear loads in concrete
• Cone and body engineered for controlled, reliable expansion at installation torque
• One-piece sleeve with three expansion segments for uniform load transfer into the concrete
• Anti-rotation sleeve design prevents the anchor spinning during tightening
• Approved for use in cracked and non-cracked concrete
• Seismic compliance for performance categories C1 and C2
• Fire rated
• Through-fixing installation
• Hex head for straightforward installation with a standard socket or torque wrench
• Available in M8 to M24
• Supported in ICCONS DesignPRO anchor design software

Applications
• Structural steel connections: columns, base plates, beams and brackets
• Heavy machinery, plant and equipment hold-downs
• Pipe supports, cable ladder and services support frames
• Safety barriers, guardrails and crash barriers
• Cantilevered structures, canopies and façade support brackets
• Seismic anchoring of building services
