Trade Pack - Self Drilling Button Head - Coarse Thread

Trade Pack - Self Drilling Button Head - Coarse Thread

Product Summary

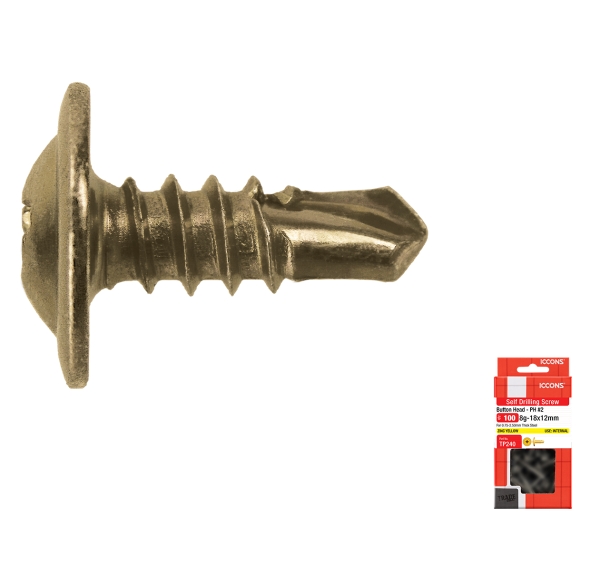

A coarse thread self drilling button head designed for a range of applications such as fixing light sheeting and cladding that require a flat head underside to allow for greater bearing on the surface material. The fine thread allows for a slightly faster install, whilst the self drilling point (aka tek point) eliminates the need for pre-drilling (please see screw self drilling capacities). The No. 2 Philips drive accompanied by the button head provides a capable screw with an aesthetic finish. Available in zinc yellow and class 3 galvanised finish, making this screw perfect for internal and external applications.

Dealer Login

Exclusively for ICONX Account Holders. Apply Today.

Find a dealer

Browse the ICCONS Dealer Network to find one near you.

See Product List Available in 10 variations
Show Related Products
Back
  • Product List
  • Features & Applications

Specifications

Part No / Finish
Description
Head Type
Thread Length
Material Thickness
Quantity
UoM
Price

Zinc
Gal
TP230
SD BUTTON C3 8-18 X 12 TRADE PACK OF 100
BUTTON / PH2
FULL
0.75 - 2.50
each
TP232
SD BUTTON C3 8-18 X 16 TRADE PACK OF 100
BUTTON / PH2
FULL
0.75 - 2.50
each
TP234
SD BUTTON C3 8-18 X 20 TRADE PACK OF 100
BUTTON / PH2
FULL
0.75 - 2.50
each
TP236
SD BUTTON C3 8-18 X 25 TRADE PACK OF 100
BUTTON / PH2
FULL
0.75 - 2.50
each
TP238
SD BUTTON C3 8-18 X 32 TRADE PACK OF 100
BUTTON / PH2
FULL
0.75 - 2.50
each
TP240
SD BUTTON ZY 8-18 X 12 TRADE PACK OF 100
BUTTON / PH2
FULL
0.75 - 2.50
each
TP242
SD BUTTON ZY 8-18 X 16 TRADE PACK OF 100
BUTTON / PH2
FULL
0.75 - 2.50
each
TP244
SD BUTTON ZY 8-18 X 20 TRADE PACK OF 100
BUTTON / PH2
FULL
0.75 - 2.50
each
TP246
SD BUTTON ZY 8-18 X 25 TRADE PACK OF 100
BUTTON / PH2
FULL
0.75 - 2.50
each
TP248
SD BUTTON ZY 8-18 X 32 TRADE PACK OF 100
BUTTON / PH2
FULL
0.75 - 2.50
each

Features & Applications

Features
• Self drilling point (aka tek point) eliminates the need for pre-drilling (please see screw self drilling capacities)
• Fine thread allows for quicker installation
• Button head allows for greater bearing on surface
• Aesthetic finish
• Available in a Zinc Yellow or Class 3 galvanised finish - perfect for internal and external applications

Applications
• Perfect for light sheeting or cladding applications that require a greater bearing on the surface material
