Self Drilling Hex - Coarse Thread

Self Drilling Hex - Coarse Thread

Product Summary

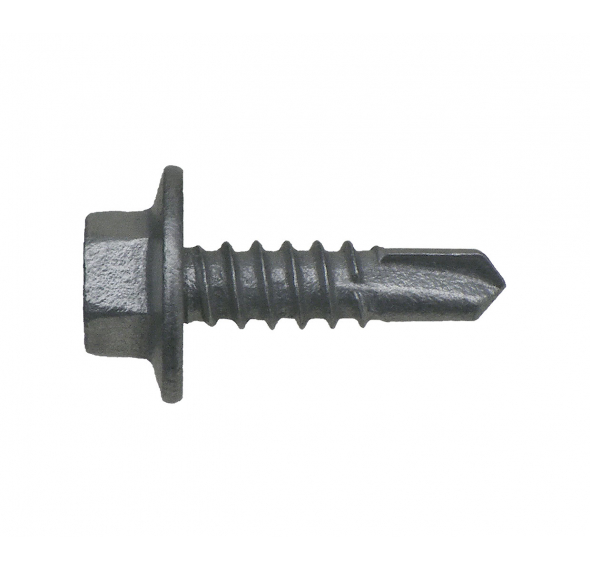

Self-drilling hex head screw for fastening through mild steel in metal brackets, components, steel sections and assemblies. This screw is an all-rounder with countless applications in the steel construction field, however the coarse thread has a slightly faster install than its fine thread counterpart leading it to have fast installation characteristics. The flanged hex head lends to high pull-out strength and available in both zinc and galvanised coating making them perfect for internal and external applications. ICCONS self drilling hex head screw has a hardened steel point (tek point), and coarse thread enabling the screw to drill and tap its own thread, without the need to pre-drill (please see screw self drilling capacities).

Exclusively for ICONX Account Holders. Apply Today.

Browse the ICCONS Dealer Network to find one near you.

See Product List Available in 38 variations
  • Product List
  • Features & Applications
  • Project Profiles
  • Downloads

Specifications

Part No / Finish
Description
Head Type
Thread Length
Material Thickness
Quantity
UoM
Price

Zinc
Gal
SS
SDHXC0812C4
100 - SD HEX COARSE C4 8-18 X 12
HEX 1/4
FULL
0.75 - 2.50
1000
SDHXC1016C3
138 - SD HEX COARSE C3 10-16 X 16
HEX 5/16
FULL
0.75 - 3.50
1000
SDHXC1016C4
104 - SD HEX COARSE C4 10-16 X 16
HEX 5/16
FULL
0.75 - 3.50
1000
SDHXC1016SS
350 - SD HEX COARSE 304SS 10-16 X 16
HEX 5/16
FULL
2.00 - 4.00
1000
SDHXC1016ZC
148 - SD HEX COARSE ZC 10-16 X 16
HEX 5/16
FULL
0.75 - 3.50
1000
SDHXC1016ZY
150 - SD HEX COARSE ZY 10-16 X 16
HEX 5/16
FULL
0.75 - 3.50
1000
SDHXC1025C3
139 - SD HEX COARSE C3 10-16 X 25
HEX 5/16
FULL
0.75 - 3.50
1000
SDHXC1025C4
106 - SD HEX COARSE C4 10-16 X 25
HEX 5/16
FULL
0.75 - 3.50
1000
SDHXC1025ZC
149 - SD HEX COARSE ZC 10-16 X 25
HEX 5/16
FULL
0.75 - 3.50
1000
SDHXC1220C3
140 - SD HEX COARSE C3 12-14 X 20
HEX 5/16
FULL
1.00 - 4.50
1000
SDHXC1220C4
110 - SD HEX COARSE C4 12-14 X 20
HEX 5/16
FULL
1.00 - 4.50
1000
SDHXC1220SS
354 - SD HEX COARSE 304SS 12-14 X 20
HEX 5/16
FULL
3.00 - 6.00
1000
SDHXC1220ZY
152 - SD HEX COARSE ZY 12-14 X 20
HEX 5/16
FULL
1.00 - 4.50
1000
SDHXC1225C4
109 - SD HEX COARSE C4 12-14 X 25
HEX 5/16
FULL
1.00 - 4.50
1000
SDHXC1230C3
142 - SD HEX COARSE C3 12-14 X 30
HEX 5/16
FULL
1.00 - 4.50
1000
SDHXC1230C4
111 - SD HEX COARSE C4 12-14 X 30
HEX 5/16
FULL
1.00 - 4.50
1000
SDHXC1235C3
144 - SD HEX COARSE C3 12-14 X 35
HEX 5/16
FULL
1.00 - 4.50
1000
SDHXC1235C4
112 - SD HEX COARSE C4 12-14 X 35
HEX 5/16
FULL
1.00 - 4.50
1000
SDHXC1245C4
114- SD HEX COARSE C4 12-14 X 45
HEX 5/16
FULL
1.00 - 4.50
1000
SDHXC1255C4
116 - SD HEX COARSE C4 12-14 X 55
HEX 5/16
42
1.00 - 4.50
1000
SDHXC1265C4
118 - SD HEX COARSE C4 12-14 X 65
HEX 5/16
50
1.00 - 4.50
1000
SDHXC1275C4
120 - SD HEX COARSE C4 12-14 X 75
HEX 5/16
50
1.00 - 4.50
1000
SDHXC14025C4
124 - SD HEX COARSE C4 14-10 X 25
HEX 3/8
FULL
1.00 - 5.00
1000
SDHXC14025SS
360 - SD HEX COARSE 304SS 14-14 X 25
HEX 3/8
FULL
1.50 - 6.00
1000
SDHXC14042C3
406 - SD HEX COARSE C3 14-10 X 42
HEX 3/8
FULL
1.00 - 5.00
1000
SDHXC14042C4
126 - SD HEX COARSE C4 14-10 X 42
HEX 3/8
FULL
1.00 - 5.00
1000
SDHXC14050C4
128 - SD HEX COARSE C4 14-10 X 50
HEX 3/8
FULL
1.00 - 5.00
1000
SDHXC14050SS
362 - SD HEX COARSE 304SS 14-14 X 50
HEX 3/8
FULL
1.50 - 6.00
1000
SDHXC14065C4
130 - SD HEX COARSE C4 14-10 X 65
HEX 3/8
35
1.00 - 5.00
1000
SDHXC14075C4
132 - SD HEX COARSE C4 14-10 X 75
HEX 3/8
35
1.00 - 5.00
1000
SDHXC14075SS
364 - SD HEX COARSE 304SS 14-14 X 75
HEX 3/8
62
1.50 - 6.00
1000
SDHXC14095C4
134 - SD HEX COARSE C4 14-10 X 95
HEX 3/8
50
1.00 - 5.00
1000
SDHXC14115C4
436 - SD HEX COARSE C4 14-14 X 115
HEX 3/8
70
1.00 - 5.00
1000
SDHXC14125C4
437 - SD HEX COARSE C4 14-14 X 125
HEX 3/8
70
1.00 - 5.00
1000
SDHXC14135C4
438 - SD HEX COARSE C4 14-14 X 135
HEX 3/8
70
1.00 - 5.00
1000
SDHXC14150C4
440 - SD HEX COARSE C4 14-14 X 150
HEX 3/8
70
1.00 - 5.00
1000
SDHXC14175C4
442 - SD HEX COARSE C4 14-14 X 175
HEX 3/8
70
1.00 - 5.00
1000
SDHXC14205C4
444 - SD HEX COARSE C4 14-14 X 205
HEX 3/8
70
1.00 - 5.00
1000

Features & Applications

Features
• Fast and easy installation
• Coarse thread for fast install
• Available in zinc, class 3 and 4 galvanised finish, perfect for internal or external applications
• High pull-out loads
• No pre-drilling (please see material thickness for drilling capacities)

Applications
• Ideal for fastening steel brackets, metal components, steel sections and assemblies
• Perfect for countless applications in the steel construction field
• Suitable for both internal and external applications
