Product Summary

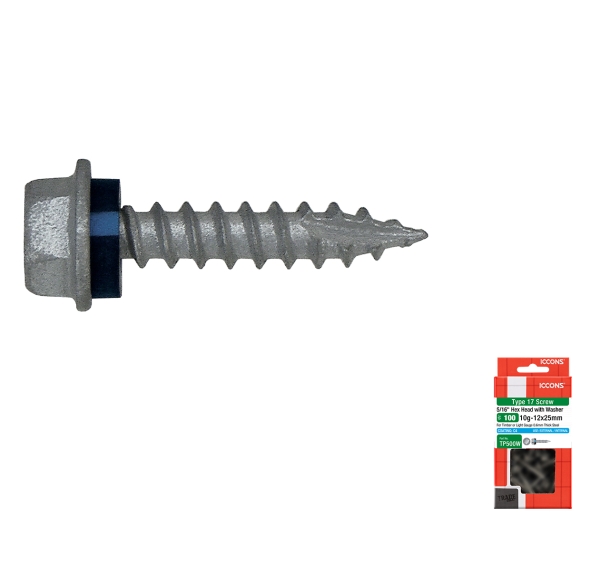

A coarse thread hex head screw with EPDM sealing washer designed for a range of general fastening applications such as fixing timber or thin steel to timber substrates, whilst eliminating the need for pre-drilling (some hardwood substrate may require pre-drilling). The Type 17 point is a sharp, fluted point offering great timber penetration and drive when accompanied by a coarse biting thread, ultimately allowing for a quicker and cleaner install. This screw is available in zinc yellow or class 4 galvanised variants, making it ideal for internal and external applications.

See Product List Available in 11 variations

Exclusively for ICONX Account Holders. Apply Today.

Browse the ICCONS Dealer Network to find one near you.

  • Product List
  • Features & Applications
  • Downloads

Specifications

Part No / Finish
Description
Head Type
Thread Length
Material Thickness
Quantity
UoM
Price

Gal
TP500W
TYPE 17 HEX WASHERED C4 10-12 X 25 TRADE PACK OF 100
HEX 5/16
FULL
23
each
TP504W
TYPE 17 HEX WASHERED C4 12-11 X 25 TRADE PACK OF 50
HEX 5/16
FULL
23
each
TP508W
TYPE 17 HEX WASHERED C4 12-11 X 40 TRADE PACK OF 50
HEX 5/16
FULL
30
each
TP510W
TYPE 17 HEX WASHERED C4 12-11 X 45 TRADE PACK OF 50
HEX 5/16
30
30
each
TP514W
TYPE 17 HEX WASHERED C4 12-11 X 65 TRADE PACK OF 20
HEX 5/16
43
30
each
TP516W
TYPE 17 HEX WASHERED C4 14-10 X 25 TRADE PACK OF 50
HEX 3/8
FULL
23
each
TP520W
TYPE 17 HEX WASHERED C4 14-10 X 50 TRADE PACK OF 20
HEX 3/8
33
35
each
TP522W
TYPE 17 HEX WASHERED C4 14-10 X 65 TRADE PACK OF 20
HEX 3/8
43
35
each
TP524W
TYPE 17 HEX WASHERED C4 14-10 X 75 TRADE PACK OF 20
HEX 3/8
50
35
each
TP526W
TYPE 17 HEX WASHERED C4 14-10 X 90 TRADE PACK OF 20
HEX 3/8
60
35
each
TP528W
TYPE 17 HEX WASHERED C4 14-10 X 100 TRADE PACK OF 20
HEX 3/8
60
35
each

Features & Applications

Features
• Hex head increases effective clamping area and pull-out resistance
• The Type 17 point is a sharp, fluted point offering great timber penetration and drive when accompanied by a coarse biting thread, ultimately allowing for a quicker and cleaner install
• EPDM sealer washer lends to water tight characteristics
• Available in zinc yellow or class 4 galvanised finish for indoor and outdoor applications

Applications
• Designed to fix timber or thin steel to timber substrates
