Product Summary

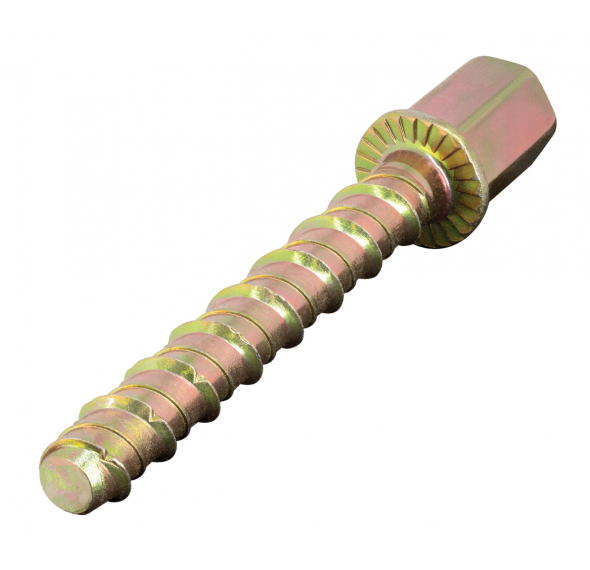

ICCONS Thunderbolt®PRO Tie-Down Anchor is the quickest and easiest way to provide uplift capacity for residential timber frame construction. The revolutionary hi-low cutting thread profile provides market leading tensile load performance for uplift applications. Installation is quick and easy, simply drill, clean the hole and screw in the anchor.

ICCONS Thunderbolt®Pro achieves the Highest Loads while generating low expansion forces which can make it a great alternative to adhesive anchors. The Thunderbolt®Pro is also completely removable making it ideal for temporary applications. Unlike mechanical expansion anchors, the Thunderbolt®Pro keys into the base material for the entire depth and diameter of the hole, not just at the base of the hole. This reduces high energy forces within the concrete allowing close anchor spacing and near-to edge anchor locations. 10 sharp thread forming teeth ensure the most secure connection in hard base materials. The Thunderbolt®Pro is a truly versatile anchor, as it can be installed in whole range of base materials such as concrete, block, brick, timber, marble, and stone, just to name a few. The highly engineered design of ICCONS Thunderbolt®Pro is the result of extensive testing and provides market leading load performance

Exclusively for ICONX Account Holders. Apply Today.

Browse the ICCONS Dealer Network to find one near you.

See Product List Available in 3 variations
  • Product List
  • Features & Applications
  • Downloads
  • Installation
  • Video

Specifications

Part No / Finish
Description
Drill Diameter
Head Type
Embedment Depth
Max Material Thickness
Head Width
Internal Thread
Quantity
UoM
Price

Zinc
Gal
SXTBTD12100G
THUNDERBOLT PRO TIE DOWN 12 X 100 GAL
12
HEX / INT THREAD
55
45
19
M12
100
SXTBTD12150
THUNDERBOLT PRO TIE DOWN 12 X 150
12
HEX / INT THREAD
60
90
19
M12
100
SXTBTD12150G
THUNDERBOLT PRO TIE DOWN 12 X 150 GAL
12
HEX / INT THREAD
60
90
19
M12
100

Features & Applications

Features
• High tensile Boron steel
• M12 Internal thread
• Quick install
• Removable
• Oversized flanged head resists base plate pullover
• Underside of head ensures anti-rotation design to resist loosening and improves dynamic load performance
• Chamfered tip centres anchor and aids in installation
• 15 Degree HI-LOW double lead thread has been optimised to provide fast installation while maintaining a high level of thread engagement
• Hardened thread cutting teeth for the hardest base materials
• Ideal for close-to-edge applications due to minimal expansion force

Applications
• Ideal for providing uplift capacity for frame construction
• Concrete
• Brick
• Block
• Timber
• Marble
• Stone

Downloads

Installation

Installation

  • Use the correct diameter drill bit
  • Drill a hole to the required anchor embedment depth, plus at least one anchor diameter deeper
  • DO NOT use a worn drill bit outside tolerance specification
  • Ensure the hole is drilled perpendicular to the concrete, with a maximum deviation up to 5 degrees. Failure to do so may cause anchor breakage
  • Clean dust and other materials from the hole. Use ICCONS Blow Pump for a perfect result
  • Use a torque wrench or an impact driver
  • Ensure correct clearance hole in the fixture
  • Apply pressure against the fixing
  • Rotate to engage the first thread
  • Tighten the anchor until it is firmly seated
  • When using an impact driver DO NOT overtighten! Follow the torque guidance table, failure to comply may result in anchor breakage. Refer to ICCONS TDS for further information
