Sleeve Anchors - Hex Head

Sleeve Anchors - Hex Head

Product Summary

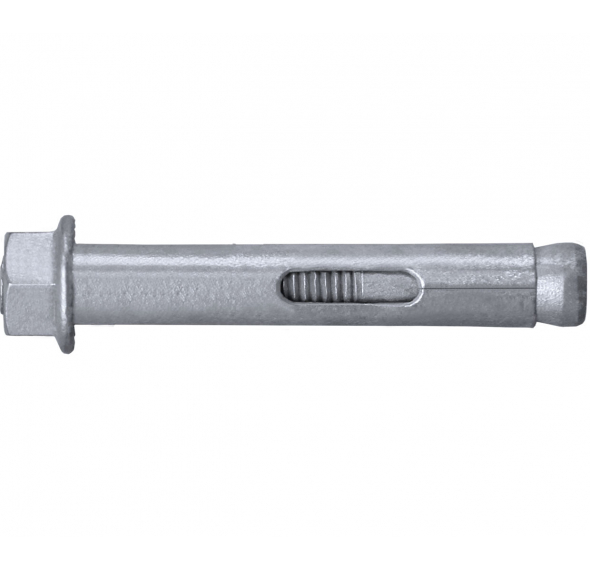

The Standard Hex Head Sleeve Anchor is a medium duty pre-assembled torque controlled expansion anchor consisting of a threaded plow bolt and a pressed carbon steel sleeve designed to expand when cone is tightened locking the sleeve against the wall of the hole. Features a hex head, ideal for various base materials such as concrete, solid brick or concrete block

Dealer Login

Exclusively for ICONX Account Holders. Apply Today.

Find a dealer

Browse the ICCONS Dealer Network to find one near you.

See Product List Available in 51 variations
Show Related Products
Back
  • Product List
  • Features & Applications
  • Downloads

Specifications

Part No / Finish
Description
Drill Diameter
Head Type
Embedment Depth
Max Material Thickness
Quantity
UoM
Price

Zinc
Gal
SS
SA06525
SLEEVE ANCHOR HEX HEAD 6.5 X 25
6,5
HEX
20
5
100
SA06535
SLEEVE ANCHOR HEX HEAD 6.5 X 35
6,5
HEX
30
5
100
SA06535SS
SLEEVE ANCHOR HEX HEAD 6.5 X 35 SS
6,5
HEX
30
5
100
SA06555
SLEEVE ANCHOR HEX HEAD 6.5 X 55
6,5
HEX
30
25
100
SA06555SS
SLEEVE ANCHOR HEX HEAD 6.5 X 55 SS
6,5
HEX
30
25
100
SA06575
SLEEVE ANCHOR HEX HEAD 6.5 X 75
6,5
HEX
30
45
100
SA06575SS
SLEEVE ANCHOR HEX HEAD 6.5 X 75 SS
6,5
HEX
30
45
100
SA08040
SLEEVE ANCHOR HEX HEAD 8 X 40
8
HEX
35
5
100
SA08040G
SLEEVE ANCHOR HEX HEAD 8 X 40 GAL
8
HEX
35
5
100
SA08040SS
SLEEVE ANCHOR HEX HEAD 8 X 40 SS
8
HEX
35
5
100
SA08065
SLEEVE ANCHOR HEX HEAD 8 X 65
8
HEX
35
30
100
SA08065G
SLEEVE ANCHOR HEX HEAD 8 X 65 GAL
8
HEX
35
30
100
SA08065SS
SLEEVE ANCHOR HEX HEAD 8 X 65 SS
8
HEX
35
30
100
SA08085
SLEEVE ANCHOR HEX HEAD 8 X 85
8
HEX
35
50
100
SA08085G
SLEEVE ANCHOR HEX HEAD 8 X 85 GAL
8
HEX
35
50
100
SA08085SS
SLEEVE ANCHOR HEX HEAD 8 X 85 SS
8
HEX
35
50
100
SA10040
SLEEVE ANCHOR HEX HEAD 10 X 40
10
HEX
34
6
100
SA10040G
SLEEVE ANCHOR HEX HEAD 10 X 40 GAL
10
HEX
34
6
100
SA10040SS
SLEEVE ANCHOR HEX HEAD 10 X 40 SS
10
HEX
34
6
100
SA10050
SLEEVE ANCHOR HEX HEAD 10 X 50
10
HEX
40
10
100
SA10050G
SLEEVE ANCHOR HEX HEAD 10 X 50 GAL
10
HEX
40
10
100
SA10050SS
SLEEVE ANCHOR HEX HEAD 10 X 50 SS
10
HEX
40
10
100
SA10060
SLEEVE ANCHOR HEX HEAD 10 X 60
10
HEX
40
20
100
SA10060G
SLEEVE ANCHOR HEX HEAD 10 X 60 GAL
10
HEX
40
20
100
SA10060SS
SLEEVE ANCHOR HEX HEAD 10 X 60 SS
10
HEX
40
20
100
SA10075
SLEEVE ANCHOR HEX HEAD 10 X 75
10
HEX
40
35
100
SA10075G
SLEEVE ANCHOR HEX HEAD 10 X 75 GAL
10
HEX
40
35
100
SA10075SS
SLEEVE ANCHOR HEX HEAD 10 X 75 SS
10
HEX
40
35
100
SA10095
SLEEVE ANCHOR HEX HEAD 10 X 95
10
HEX
40
55
100
SA10095G
SLEEVE ANCHOR HEX HEAD 10 X 95 GAL
10
HEX
40
55
100
SA10095SS
SLEEVE ANCHOR HEX HEAD 10 X 95 SS
10
HEX
40
55
100
SA10120
SLEEVE ANCHOR HEX HEAD 10 X 120
10
HEX
40
80
100
SA12060
SLEEVE ANCHOR HEX HEAD 12 X 60
12
HEX
50
10
100
SA12060G
SLEEVE ANCHOR HEX HEAD 12 X 60 GAL
12
HEX
50
10
100
SA12060SS
SLEEVE ANCHOR HEX HEAD 12 X 60 SS
12
HEX
50
10
100
SA12075
SLEEVE ANCHOR HEX HEAD 12 X 75
12
HEX
50
25
100
SA12075G
SLEEVE ANCHOR HEX HEAD 12 X 75 GAL
12
HEX
50
25
100
SA12075SS
SLEEVE ANCHOR HEX HEAD 12 X 75 SS
12
HEX
50
25
100
SA12100
SLEEVE ANCHOR HEX HEAD 12 X 100
12
HEX
50
50
100
SA12100G
SLEEVE ANCHOR HEX HEAD 12 X 100 GAL
12
HEX
50
50
100
SA12100SS
SLEEVE ANCHOR HEX HEAD 12 X 100 SS
12
HEX
50
50
100
SA12130
SLEEVE ANCHOR HEX HEAD 12 X 130
12
HEX
50
80
100
SA12130G
SLEEVE ANCHOR HEX HEAD 12 X 130 GAL
12
HEX
50
80
100
SA16065
SLEEVE ANCHOR HEX HEAD 16 X 65
16
HEX
55
10
100
SA16065G
SLEEVE ANCHOR HEX HEAD 16 X 65 GAL
16
HEX
55
10
100
SA16110
SLEEVE ANCHOR HEX HEAD 16 X 110
16
HEX
55
55
100
SA16110G
SLEEVE ANCHOR HEX HEAD 16 X 110 GAL
16
HEX
55
55
100
SA16145
SLEEVE ANCHOR HEX HEAD 16 X 145
16
HEX
55
90
100
SA20075
SLEEVE ANCHOR HEX HEAD 20 X 75
20
HEX
60
15
100
SA20105
SLEEVE ANCHOR HEX HEAD 20 X 105
20
HEX
60
45
100
SA20150
SLEEVE ANCHOR HEX HEAD 20 X 150
20
HEX
60
90
100

Features & Applications

Features
• Strong, yet economical expansion anchor
• Standard hex head for simple installation and removal
• Pre-assembled for fast and simple installation
• Ideal for through fastening applications

Applications
• Ideal for fixing steel brackets, and timber structures to solid base materials
• Suitable in concrete
• Stone
• Solid brick
• Concrete block
