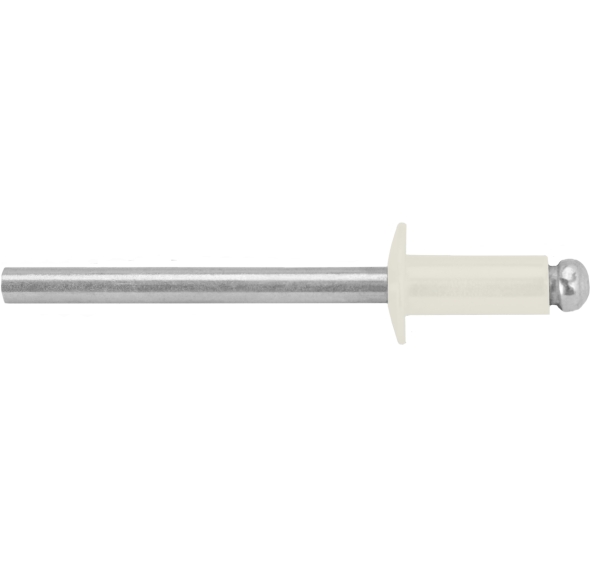

Painted - Aluminium / Aluminium - Dome Head Rivets

Painted - Aluminium / Aluminium - Dome Head Rivets

Product Summary

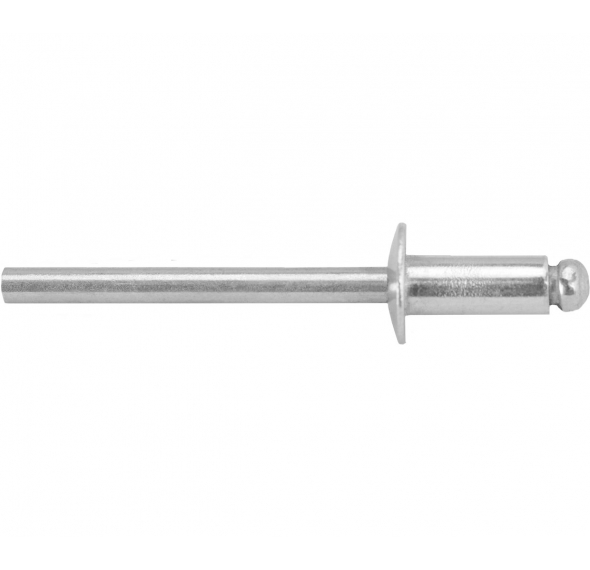

Consisting of high quality aluminium alloy mandrel and 5052 grade aluminium alloy body, the dome head rivet is great for applications where the corrosion of a steel mandrel is not acceptable. Suitable for both the Professional Blind Rivet Tool (hand held: RTP-55) as well as the Scell-It 18V Cordless Blind Rivet Tool (power tool: RT-18VE5).

Dealer Login

Exclusively for ICONX Account Holders. Apply Today.

Find a dealer

Browse the ICCONS Dealer Network to find one near you.

See Product List Available in 38 variations
Show Related Products
Back
  • Product List
  • Features & Applications
  • Downloads

Specifications

Part No
Description
Finish
Drill Diameter
Body Diameter
Body Length
Grip Range
Shear (N)
Tensile (N)
Quantity
UoM
Price
RD-AA43BA
RIVET DOME ALL ALUMINIUM 4-3 BASALT
ALUMINIUM
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AA43BG
RIVET DOME ALL ALUMINIUM 4-3 BLUEGUM
ALUMINIUM
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AA43CC
RIVET DOME ALL ALUMINIUM 4-3 CLASSIC CREAM
ALUMINIUM
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AA43CG
RIVET DOME ALL ALUMINIUM 4-3 COTTAGE GREEN
ALUMINIUM
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AA43DO
RIVET DOME ALL ALUMINIUM 4-3 DEEP OCEAN
ALUMINIUM
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AA43DU
RIVET DOME ALL ALUMINIUM 4-3 DUNE
ALUMINIUM
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AA43DW
RIVET DOME ALL ALUMINIUM 4-3 DOVER WHITE
ALUMINIUM
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AA43EH
RIVET DOME ALL ALUMINIUM 4-3 EVENING HAZE
ALUMINIUM
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AA43GU
RIVET DOME ALL ALUMINIUM 4-3 GULLY
ALUMINIUM
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AA43IS
RIVET DOME ALL ALUMINIUM 4-3 IRONSTONE
ALUMINIUM
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AA43JA
RIVET DOME ALL ALUMINIUM 4-3 JASPER
ALUMINIUM
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AA43MO
RIVET DOME ALL ALUMINIUM 4-3 MONUMENT
ALUMINIUM
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AA43MR
RIVET DOME ALL ALUMINIUM 4-3 MANOR RED
ALUMINIUM
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AA43NS
RIVET DOME ALL ALUMINIUM 4-3 NIGHT SKY
ALUMINIUM
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AA43PA
RIVET DOME ALL ALUMINIUM 4-3 PAPERBARK
ALUMINIUM
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AA43PE
RIVET DOME ALL ALUMINIUM 4-3 PALE EUCALYPT
ALUMINIUM
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AA43SG
RIVET DOME ALL ALUMINIUM 4-3 SHALE GREY
ALUMINIUM
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AA43SM
sqw
ALUMINIUM
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AA43W
RIVET DOME ALL ALUMINIUM 4-3 WHITE
ALUMINIUM
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AA43WA
RIVET DOME ALL ALUMINIUM 4-3 WALLABY
ALUMINIUM
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AA43WG
RIVET DOME ALL ALUMINIUM 4-3 WOODLAND GREY
ALUMINIUM
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AA43WS
RIVET DOME ALL ALUMINIUM 4-3 WINDSPRAY
ALUMINIUM
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AA54BA
RIVET DOME ALL ALUMINIUM 5-4 BASALT
ALUMINIUM
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AA54CC
RIVET DOME ALL ALUMINIUM 5-4 CLASSIC CREAM
ALUMINIUM
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AA54DU
RIVET DOME ALL ALUMINIUM 5-4 DUNE
ALUMINIUM
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AA54EH
RIVET DOME ALL ALUMINIUM 5-4 EVENING HAZE
ALUMINIUM
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AA54IS
RIVET DOME ALL ALUMINIUM 5-4 IRONSTONE
ALUMINIUM
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AA54JA
RIVET DOME ALL ALUMINIUM 5-4 JASPER
ALUMINIUM
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AA54MO
RIVET DOME ALL ALUMINIUM 5-4 MONUMENT
ALUMINIUM
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AA54MR
RIVET DOME ALL ALUMINIUM 5-4 MANOR RED
ALUMINIUM
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AA54NS
RIVET DOME ALL ALUMINIUM 5-4 NIGHT SKY
ALUMINIUM
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AA54PA
RIVET DOME ALL ALUMINIUM 5-4 PAPERBARK
ALUMINIUM
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AA54PE
RIVET DOME ALL ALUMINIUM 5-4 PALE EUCALYPT
ALUMINIUM
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AA54SG
RIVET DOME ALL ALUMINIUM 5-4 SHALE GREY
ALUMINIUM
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AA54SM
RIVET DOME ALL ALUMINIUM 5-4 SURF MIST
ALUMINIUM
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AA54WA
RIVET DOME ALL ALUMINIUM 5-4 WALLABY
ALUMINIUM
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AA54WG
RIVET DOME ALL ALUMINIUM 5-4 WOODLAND GREY
ALUMINIUM
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AA54WS
RIVET DOME ALL ALUMINIUM 5-4 WINDSPRAY
ALUMINIUM
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000

Features & Applications

Features
• 5052 grade aluminium alloy body and mandrel
• Suitable for both the Professional Blind Rivet Tool (hand held: RTP-55) as well as the Scell-It 18V Cordless Blind Rivet Tool (power tool: RT-18VE5)
• Designed to have an extended grip range

Applications
• Highly recommended for applications where the corrosion of a steel mandrel is unacceptable
• Outdoor / exposed application
• Corrosive environments
