FM753 Crack - Heavy Duty Through Anchor

Product Summary

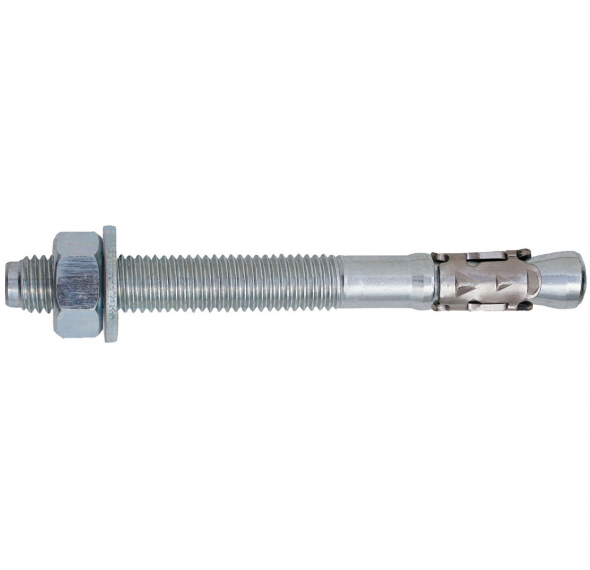

ICCONS FM753 Crack anchor is an extreme performance expansion anchor with seismic C1 and C2 certification. This anchor is ideal for applications requiring extreme load performance. The FM753 Crack is National Code Compliant, ETA approved, cracked concrete approved, seismic (C1 and C2) approved, fire rated and available in both 9.8 grade carbon steel and 316 stainless steel. Nine gripping dents for undercutting action into concrete.

OPTION 1 for CRACKED CONCRETE

Exclusively for ICONX Account Holders. Apply Today.

Browse the ICCONS Dealer Network to find one near you.

See Product List Available in 42 variations
  • Product List
  • Features & Applications
  • Project Profiles
  • Downloads
  • Video

Specifications

Part No / Finish
Description
Drill Diameter
Max Material Thickness
Head Width
Clearance Hole
Thread Length
ETA Approval
Quantity
UoM
Price

Gal
SS
FM753C08068G
HD SEISMIC THRU ANCHOR GAL 8 X 68 (75350b08068)
8
4
13
9
30
YES
100
FM753C08068SS
HD SEISMIC THRU ANCHOR SS 8 X 68 (75350008068)
8
4
13
9
30
YES
100
FM753C08075G
HD SEISMIC THRU ANCHOR GAL 8 X 75 (75350b08075)
8
10
13
9
30
YES
100
FM753C08075SS
HD SEISMIC THRU ANCHOR SS 8 X 75 (75350008075)
8
10
13
9
30
YES
100
FM753C08090G
HD SEISMIC THRU ANCHOR GAL 8 X 90 (75350b08090)
8
25
13
9
40
YES
100
FM753C08090SS
HD SEISMIC THRU ANCHOR SS 8 X 90 (75350008090)
8
25
13
9
40
YES
100
FM753C08115G
HD SEISMIC THRU ANCHOR GAL 8 X 115 (75350b08115)
8
50
13
9
60
YES
100
FM753C08115SS
HD SEISMIC THRU ANCHOR SS 8 X 115 (75350008115)
8
50
13
9
60
YES
100
FM753C08135G
HD SEISMIC THRU ANCHOR GAL 8 X 135 (75350b08135)
8
70
13
9
80
YES
100
FM753C08135SS
HD SEISMIC THRU ANCHOR SS 8 X 135 (75350008135)
8
70
13
9
80
YES
100
FM753C08165G
HD SEISMIC THRU ANCHOR GAL 8 X 165 (75350b08165)
8
100
13
9
80
YES
100
FM753C08165SS
HD SEISMIC THRU ANCHOR SS 8 X 165 (75350008165)
8
100
13
9
80
YES
100
FM753C10090G
HD SEISMIC THRU ANCHOR GAL 10 X 90 (75350b10090)
10
10
17
12
40
YES
100
FM753C10090SS
HD SEISMIC THRU ANCHOR SS 10 X 90 (75350010090)
10
10
17
12
40
YES
100
FM753C10105G
HD SEISMIC THRU ANCHOR GAL 10 X 105 (75350b10105)
10
25
17
12
55
YES
100
FM753C10105SS
HD SEISMIC THRU ANCHOR SS 10 X 105 (75350010105)
10
25
17
12
55
YES
100
FM753C10115G
HD SEISMIC THRU ANCHOR GAL 10 X 115 (75350b10115)
10
35
17
12
55
YES
100
FM753C10115SS
HD SEISMIC THRU ANCHOR SS 10 X 115 (75350010115)
10
35
17
12
55
YES
100
FM753C10135G
HD SEISMIC THRU ANCHOR GAL 10 X 135 (75350b10135)
10
55
17
12
85
YES
100
FM753C10135SS
HD SEISMIC THRU ANCHOR SS 10 X 135 (75350010135)
10
55
17
12
85
YES
100
FM753C10155G
HD SEISMIC THRU ANCHOR GAL 10 X 155 (75350b10155)
10
75
17
12
85
YES
100
FM753C10155SS
HD SEISMIC THRU ANCHOR SS 10 X 155 (75350010155)
10
75
17
12
85
YES
100
FM753C10185G
HD SEISMIC THRU ANCHOR GAL 10 X 185 (75350b10185)
10
105
17
12
85
YES
100
FM753C10185SS
HD SEISMIC THRU ANCHOR SS 10 X 185 (75350010185)
10
105
17
12
85
YES
100
FM753C12110G
HD SEISMIC THRU ANCHOR GAL 12 X 110 (75350b12110)
12
10
19
14
65
YES
100
FM753C12110SS
HD SEISMIC THRU ANCHOR SS 12 X 110 (75350012110)
12
10
19
14
65
YES
100
FM753C12120G
HD SEISMIC THRU ANCHOR GAL 12 X 120 (75350b12120)
12
20
19
14
65
YES
100
FM753C12120SS
HD SEISMIC THRU ANCHOR SS 12 X 120 (75350012120)
12
20
19
14
65
YES
100
FM753C12145G
HD SEISMIC THRU ANCHOR GAL 12 X 145 (75350b12145)
12
45
19
14
85
YES
100
FM753C12145SS
HD SEISMIC THRU ANCHOR SS 12 X 145 (75350012145)
12
45
19
14
85
YES
100
FM753C12170G
HD SEISMIC THRU ANCHOR GAL 12 X 170 (75350b12170)
12
70
19
14
85
YES
100
FM753C12170SS
HD SEISMIC THRU ANCHOR SS 12 X 170 (75350012170)
12
70
19
14
85
YES
100
FM753C12200G
HD SEISMIC THRU ANCHOR GAL 12 X 200 (75350b12200)
12
100
19
14
85
YES
100
FM753C12200SS
HD SEISMIC THRU ANCHOR SS 12 X 200 (75350012200)
12
100
19
14
85
YES
100
FM753C16130G
HD SEISMIC THRU ANCHOR GAL 16 X 130 (75350b16130)
16
10
24
18
65
YES
100
FM753C16130SS
HD SEISMIC THRU ANCHOR SS 16 X 130 (75350016130)
16
10
24
18
65
YES
100
FM753C16150G
HD SEISMIC THRU ANCHOR GAL 16 X 150 (75350b16150)
16
30
24
18
85
YES
100
FM753C16150SS
HD SEISMIC THRU ANCHOR SS 16 X 150 (75350016150)
16
30
24
18
85
YES
100
FM753C16185G
HD SEISMIC THRU ANCHOR GAL 16 X 185 (75350b16185)
16
60
24
18
85
YES
100
FM753C16185SS
HD SEISMIC THRU ANCHOR SS 16 X 185 (75350016185)
16
60
24
18
85
YES
100
FM753C16220G
HD SEISMIC THRU ANCHOR GAL 16 X 220 (75350b16220)
16
100
24
18
85
YES
100
FM753C16220SS
HD SEISMIC THRU ANCHOR SS 16 X 220 (75350016220)
16
100
24
18
85
YES
100

Features & Applications

Features
• Available in 9.8 grade carbon steel and 316 stainless steel (INOX A4)
• NCC: National Code Compliant
• CE Certified
• Seismic Certification (C1 and C2)
• Cracked Concrete approved
• Fire resistance Certification
• Extreme Load Performance

Applications
• Safety critical systems
• Facades
• Seismic areas
• Fixing machinery - production lines
• Scaffolding and shuttering
• Structural fixings

Project Case Studies

Downloads

Video

Video

Check out the video to see why ICCONS FM753 Crack is the Number 1 option for cracked concrete~

The FM753 Crack is ...

  • National Code Compliant
  • ETA approved
  • Cracked concrete approved
  • Seismic (C1 and C2) approved
  • Fire rated
  • Available in both 9.8 grade carbon steel and 316 stainless steel



Check out the video to see why ICCONS FM753 Crack is the Number 1 option for cracked concrete~

The FM753 Crack is ...

  • National Code Compliant
  • ETA approved
  • Cracked concrete approved
  • Seismic (C1 and C2) approved
  • Fire rated
  • Available in both 9.8 grade carbon steel and 316 stainless steel
