Trade Pack - Self Drilling Countersunk Head - Coarse Thread

Trade Pack - Self Drilling Countersunk Head - Coarse Thread

Product Summary

Self drilling coarse thread screws are used for fixing into metal such as in carport, shed, garage and steel frame construction. The hardened steel self drilling point (often going by its proprietary name tek point) can self drill through varying gauges of mild steel without the need for pre-drilling (see product attributes for material thickness constraints), accompanied by 18 TPI (thread per inch) coarse thread for rapid install into the steel. with its countersunk head, self drilling (tek) point and coarse thread, this screw is ideal for steel construction where a discrete finish is required.

Exclusively for ICONX Account Holders. Apply Today.

Browse the ICCONS Dealer Network to find one near you.

See Product List Available in 4 variations
  • Product List
  • Features & Applications

Specifications

Part No / Finish
Description
Head Type
Thread Length
Material Thickness
Quantity
UoM
Price

Zinc
Gal

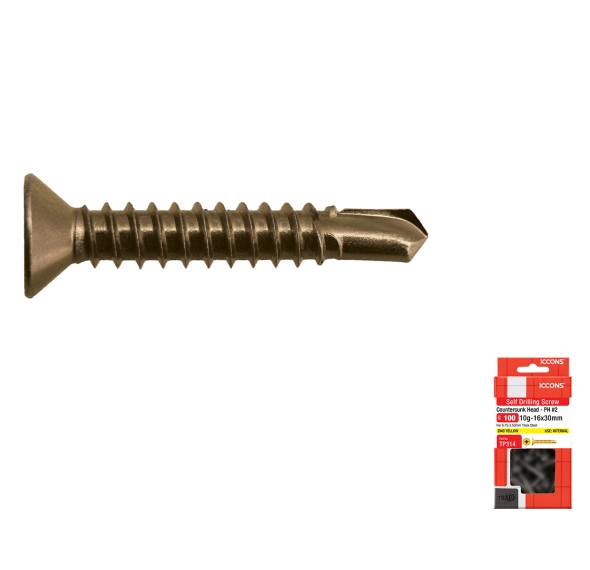

TP314
SD CSK COARSE ZY 10-16 X 30 TRADE PACK OF 100
CSK / PH2
FULL
0.75 - 3.50
each
TP316
SD CSK COARSE ZY 10-16 X 40 TRADE PACK OF 100
CSK / PH2
FULL
0.75 - 3.50
each
TP320
SD CSK COARSE C3 10-16 X 30 TRADE PACK OF 100
CSK / PH2
FULL
0.75 - 3.50
each
TP322
SD CSK COARSE C3 10-16 X 40 TRADE PACK OF 50
CSK / PH2
FULL
0.75 - 3.50
each

Features & Applications

Features
• Self drilling tip eliminates the need for pre-drilling
• Coarse thread allows for quicker installation
• Countersunk head allows for a flush finish
• Available in a Zinc Yellow or Class 3 galvanised finish

Applications
• carport, shed, garage and steel frame construction
• Application seeking a discrete finish (countersunk head)
