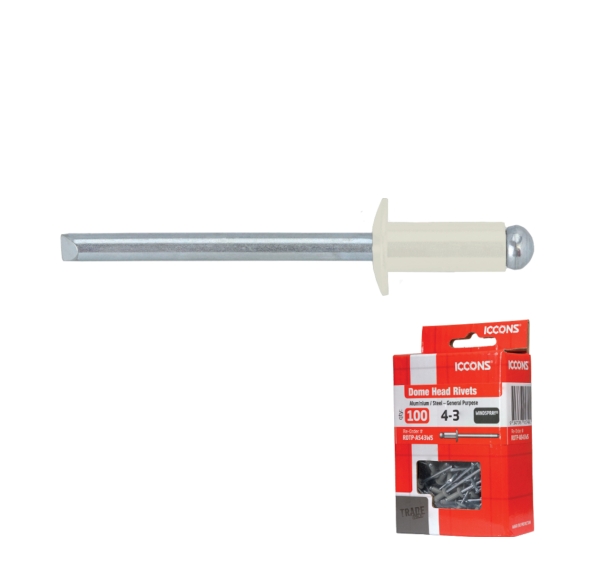

Painted - Aluminium / Steel - Dome Head Rivets (Trade Pack)

Painted - Aluminium / Steel - Dome Head Rivets (Trade Pack)

Product Summary

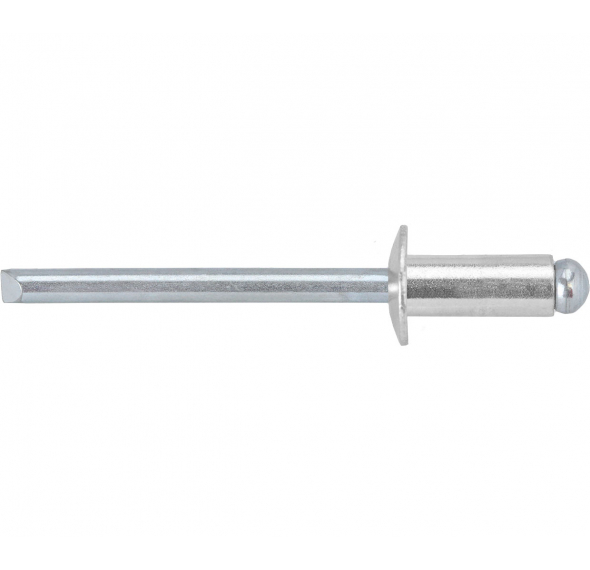

Consisting of high quality, low carbon content, zinc plated steel mandrel and 5050 grade aluminium alloy body, the Scell-it dome head rivet is suitable for applications where a clean, dome head finish is required. Suitable for both the Professional Blind Rivet Tool (hand held: RTP-55) as well as the Scell-It 18V Cordless Blind Rivet Tool (power tool: RT-18VE5). The entire Scell-it rivet range is ideal for applications in manufacturing, maintenance, assembly, repair and DIY projects.

Dealer Login

Exclusively for ICONX Account Holders. Apply Today.

Find a dealer

Browse the ICCONS Dealer Network to find one near you.

See Product List Available in 39 variations
Show Related Products
Back
  • Product List
  • Features & Applications
  • Downloads

Specifications

Part No
Description
Finish
Drill Diameter
Body Diameter
Body Length
Grip Range
Shear (N)
Tensile (N)
Quantity
UoM
Price
RDTP-AS43BA
RIVET AS 4-3 (100) BASALT
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
each
RDTP-AS43CC
RIVET AS 4-3 (100) CLASSIC CREAM
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
each
RDTP-AS43CG
RIVET AS 4-3 (100) COTTAGE GREEN
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
each
RDTP-AS43DO
RIVET AS 4-3 (100) DEEP OCEAN
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
each
RDTP-AS43DU
RIVET AS 4-3 (100) DUNE
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
each
RDTP-AS43EH
RIVET AS 4-3 (100) EVENING HAZE
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
each
RDTP-AS43GU
RIVET AS 4-3 (100) GULLY
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
each
RDTP-AS43IS
RIVET AS 4-3 (100) IRONSTONE
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
each
RDTP-AS43JA
RIVET AS 4-3 (100) JASPER
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
each
RDTP-AS43MA
RIVET AS 4-3 (100) MANGROVE
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
each
RDTP-AS43MO
RIVET AS 4-3 (100) MONUMENT
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
each
RDTP-AS43MR
RIVET AS 4-3 (100) MANOR RED
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
each
RDTP-AS43NS
RIVET AS 4-3 (100) NIGHTSKY
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
each
RDTP-AS43PE
RIVET AS 4-3 (100) PALE EUCALYPT
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
each
RDTP-AS43SG
RIVET AS 4-3 (100) SHALE GREY
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
each
RDTP-AS43SM
RIVET AS 4-3 (100) SURFMIST
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
each
RDTP-AS43WA
RIVET AS 4-3 (100) WALLABY
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
each
RDTP-AS43WG
RIVET AS 4-3 (100) WOODLAND GREY
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
each
RDTP-AS43WS
RIVET AS 4-3 (100) WINDSPRAY
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
each
RDTP-AS54BA
RIVET AS 5-4 (100) BASALT
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
each
RDTP-AS54CC
RIVET AS 5-4 (100) CLASSIC CREAM
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
each
RDTP-AS54CG
RIVET AS 5-4 (100) COTTAGE GREEN
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
each
RDTP-AS54CO
RIVET AS 5-4 (100) COVE
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
each
RDTP-AS54DO
RIVET AS 5-4 (100) DEEP OCEAN
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
each
RDTP-AS54DU
RIVET AS 5-4 (100) DUNE
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
each
RDTP-AS54EH
RIVET AS 5-4 (100) EVENING HAZE
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
each
RDTP-AS54GU
RIVET AS 5-4 (100) GULLY
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
each
RDTP-AS54IS
RIVET AS 5-4 (100) IRONSTONE
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
each
RDTP-AS54JA
RIVET AS 5-4 (100) JASPER
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
each
RDTP-AS54MO
RIVET AS 5-4 (100) MONUMENT
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
each
RDTP-AS54MR
RIVET AS 5-4 (100) MANOR RED
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
each
RDTP-AS54NS
RIVET AS 5-4 (100) NIGHT SKY
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
each
RDTP-AS54PA
RIVET AS 5-4 (100) PAPERBARK
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
each
RDTP-AS54PE
RIVET AS 5-4 (100) PALE EUCALYPT
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
each
RDTP-AS54SG
RIVET AS 5-4 (100) SHALE GREY
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
each
RDTP-AS54SM
RIVET AS 5-4 (100) SURFMIST
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
each
RDTP-AS54WA
RIVET AS 5-4 (100) WALLABY
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
each
RDTP-AS54WG
RIVET AS 5-4 (100) WOODLAND GREY
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
each
RDTP-AS54WS
RIVET AS 5-4 (100) WINDSPRAY
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
each

Features & Applications

Features
• 5050 grade aluminium alloy body and low carbon content, zinc plated steel mandrel
• Quick and easy to use
• Suitable for both the Professional Blind Rivet Tool (hand held: RTP-55) as well as the Scell-It 18V Cordless Blind Rivet Tool (power tool: RT-18VE5)
• Designed to have an extended grip range
• Available in COLORBOND colour range

Applications
• Applications where a dome head finish is required
• Perfect for manufacturing, maintenance, assembly, repair and DIY projects
