Painted - Self Drilling Hex 5 Series - Fine Thread

Painted - Self Drilling Hex 5 Series - Fine Thread

Product Summary

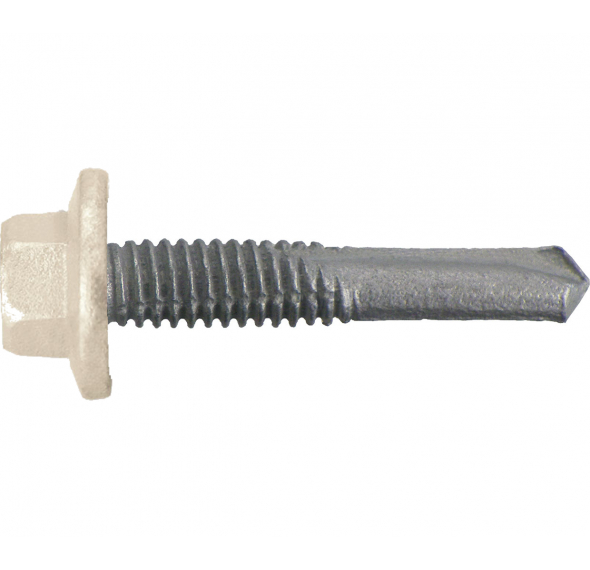

Self drilling hex head screw with a 5 series drill point (aka series 500) for drilling through up to 12mm mild steel in metal brackets, components, steel sections and assemblies. The flanged hex head lends to high pull-out strength. Available in both class 4 galvanised finish and stainless steel variants making them perfect for internal, external and high corrosion affected applications. ICCONS 5 series (series 500) self drilling hex head screw has a hardened steel point, and fine thread enabling the screw to drill and tap its own thread, without the need to pre-drill (please see screw self drilling capacities).

Exclusively for ICONX Account Holders. Apply Today.

Browse the ICCONS Dealer Network to find one near you.

See Product List Available in 28 variations
  • Product List
  • Features & Applications
  • Downloads

Specifications

Part No / Finish
Description
Head Type
Thread Length
Material Thickness
Quantity
UoM
Price

Gal
190-BA
SD HEX 5 SERIES FINE C4 12-24 X 32 BASALT
HEX 5/16
FULL
3.00-12.00
1000
190-BU
SD HEX 5 SERIES FINE C4 12-24 X 32 BUSHLAND
HEX 5/16
FULL
3.00-12.00
1000
190-CC
SD HEX 5 SERIES FINE C4 12-24 X 32 CLASSIC CREAM
HEX 5/16
FULL
3.00-12.00
1000
190-CG
SD HEX 5 SERIES FINE C4 12-24 X 32 COTTAGE GREEN
HEX 5/16
FULL
3.00-12.00
1000
190-CO
SD HEX 5 SERIES FINE C4 12-24 X 32 COVE
HEX 5/16
FULL
3.00-12.00
1000
190-DO
SD HEX 5 SERIES FINE C4 12-24 X 32 DEEP OCEAN
HEX 5/16
FULL
3.00-12.00
1000
190-DU
SD HEX 5 SERIES FINE C4 12-24 X 32 DUNE
HEX 5/16
FULL
3.00-12.00
1000
190-EH
SD HEX 5 SERIES FINE C4 12-24 X 32 EVENING HAZE
HEX 5/16
FULL
3.00-12.00
1000
190-GU
SD HEX 5 SERIES FINE C4 12-24 X 32 GULLY
HEX 5/16
FULL
3.00-12.00
1000
190-HE
SD HEX 5 SERIES FINE C4 12-24 X 32 HEADLAND
HEX 5/16
FULL
3.00-12.00
1000
190-IS
SD HEX 5 SERIES FINE C4 12-24 X 32 IRONSTONE
HEX 5/16
FULL
3.00-12.00
1000
190-JA
SD HEX 5 SERIES FINE C4 12-24 X 32 JASPER
HEX 5/16
FULL
3.00-12.00
1000
190-LO
SD HEX 5 SERIES FINE C4 12-24 X 32 LOFT
HEX 5/16
FULL
3.00-12.00
1000
190-MA
SD HEX 5 SERIES FINE C4 12-24 X 32 MANGROVE
HEX 5/16
FULL
3.00-12.00
1000
190-MO
SD HEX 5 SERIES FINE C4 12-24 X 32 MONUMENT
HEX 5/16
FULL
3.00-12.00
1000
190-MR
SD HEX 5 SERIES FINE C4 12-24 X 32 MANOR RED
HEX 5/16
FULL
3.00-12.00
1000
190-NS
SD HEX 5 SERIES FINE C4 12-24 X 32 NIGHT SKY
HEX 5/16
FULL
3.00-12.00
1000
190-PA
SD HEX 5 SERIES FINE C4 12-24 X 32 PAPERBARK
HEX 5/16
FULL
3.00-12.00
1000
190-PE
SD HEX 5 SERIES FINE C4 12-24 X 32 PALE EUCALYPT
HEX 5/16
FULL
3.00-12.00
1000
190-PL
SD HEX 5 SERIES FINE C4 12-24 X 32 PLANTATION
HEX 5/16
FULL
3.00-12.00
1000
190-SA
SD HEX 5 SERIES FINE C4 12-24 X 32 SANDBANK
HEX 5/16
FULL
3.00-12.00
1000
190-SG
SD HEX 5 SERIES FINE C4 12-24 X 32 SHALE GREY
HEX 5/16
FULL
3.00-12.00
1000
190-SM
SD HEX 5 SERIES FINE C4 12-24 X 32 SURF MIST
HEX 5/16
FULL
3.00-12.00
1000
190-TE
SD HEX 5 SERIES FINE C4 12-24 X 32 TERRAIN
HEX 5/16
FULL
3.00-12.00
1000
190-WA
SD HEX 5 SERIES FINE C4 12-24 X 32 WALLABY
HEX 5/16
FULL
3.00-12.00
1000
190-WG
SD HEX 5 SERIES FINE C4 12-24 X 32 WOODLAND GREY
HEX 5/16
FULL
3.00-12.00
1000
190-WI
SD HEX 5 SERIES FINE C4 12-24 X 32 WILDERNESS
HEX 5/16
FULL
3.00-12.00
1000
190-WS
SD HEX 5 SERIES FINE C4 12-24 X 32 WINDSPRAY
HEX 5/16
FULL
3.00-12.00
1000

Features & Applications

Features
• for fastening steel up to 12mm thick
• Easy installation
• Fine thread for better adjustment capabilities
• Available in class 4 galvanised finish and stainless steel, perfect for internal, external, and high corrosion effected applications
• High pull-out loads
• No pre-drilling (please see material thickness for drilling capacities)

Applications
• Ideal for fastening steel brackets, metal components, steel sections and assemblies
• Perfect for internal, external and high corrosion effected applications
