Trade Pack - Self Drilling Hex 5 Series - Fine Thread

Trade Pack - Self Drilling Hex 5 Series - Fine Thread

Product Summary

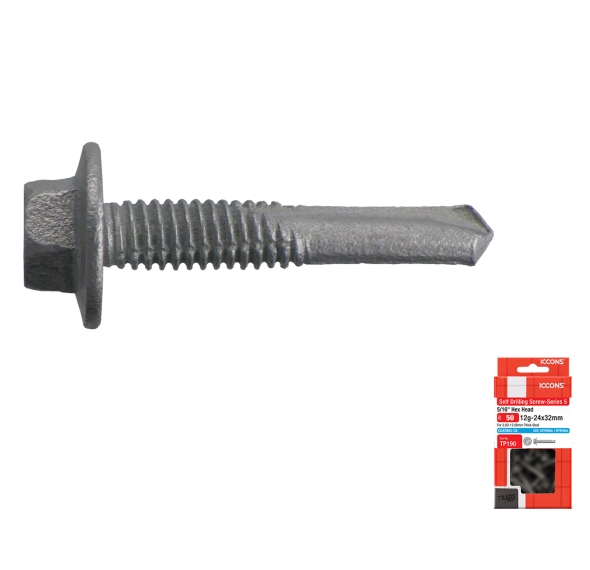

Self drilling hex head screw with a 5 series drill point (aka series 500) for drilling through up to 12mm mild steel in metal brackets, components, steel sections and assemblies. The flanged hex head lends to high pull-out strength. Available in both class 4 galvanised finish and stainless steel variants making them perfect for internal, external and high corrosion affected applications. ICCONS 5 series (series 500) self drilling hex head screw has a hardened steel point, and fine thread enabling the screw to drill and tap its own thread, without the need to pre-drill (please see screw self drilling capacities).

See Product List Available in 4 variations

Exclusively for ICONX Account Holders. Apply Today.

Browse the ICCONS Dealer Network to find one near you.

  • Product List
  • Features & Applications
  • Downloads

Specifications

Part No / Finish
Description
Head Type
Thread Length
Material Thickness
Quantity
UoM
Price

Gal
TP190
SD HEX 5 SERIES FINE C4 12-24 X 32 TRADE PACK OF 50
HEX 5/16
FULL
3.00-12.00
each
TP192
SD HEX 5 SERIES FINE C4 12-24 X 50 TRADE PACK OF 20
HEX 5/16
FULL
3.00-12.00
each
TP194
SD HEX 5 SERIES FINE C4 12-24 X 65 TRADE PACK OF 20
HEX 5/16
50
3.00-12.00
each
TP196
SD HEX 5 SERIES FINE C4 12-24 X 85 TRADE PACK OF 20
HEX 5/16
50
3.00-12.00
each

Features & Applications

Features
• for fastening steel up to 12mm thick
• Easy installation
• Fine thread for better adjustment capabilities
• Available in class 4 galvanised finish and stainless steel, perfect for internal, external, and high corrosion effected applications
• High pull-out loads
• No pre-drilling (please see material thickness for drilling capacities)

Applications
• Ideal for fastening steel brackets, metal components, steel sections and assemblies
• Perfect for internal, external and high corrosion effected applications
