Thunderbolt Pro - Countersunk Head

Product Summary

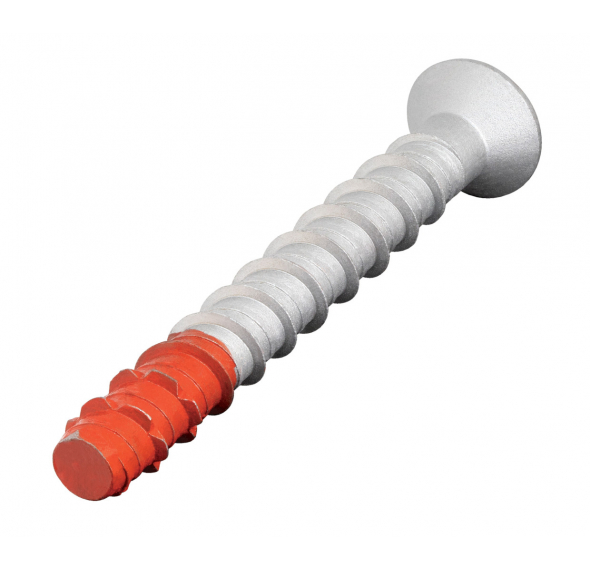

ICCONS® Thunderbolt®PRO Countersunk Head is the latest high tensile screw-in, self tapping concrete and masonry screw anchor for use in a wide range of applications found in the residential, commercial and infrastructure construction spaces. The Thunderbolt®PRO is the most complete screw-bolt range on the market with the entire range AS5216:2021 Compliant, ETA assessments for cracked concrete, fire performance and seismic ratings (please see technical data for specification requirements).

Installation is quick and easy, simply drill, clean the hole and screw in the anchor. The Thunderbolt®PRO can be easily removed and does not leave residue or metal components in the drilled hole that can cause corrosion. Available in zinc, galvanised and stainless steel finishes, both hex and countersunk head styles and ranging from 5mm to 18mm in various lengths, ICCONS® new and improved Thunderbolt®PRO is the anchor for all applications.

ICCONS Thunderbolt®Pro achieves the Highest Loads while generating Low Expansion forces which can make it a great alternative to adhesive anchors. The Thunderbolt®Pro is also completely removable making it ideal for temporary applications. Unlike mechanical expansion anchors, the Thunderbolt®Pro keys into the base material for the entire depth and diameter of the hole, not just at the base of the hole. This reduces high energy forces within the concrete allowing close anchor spacing and near-to edge anchor locations. 10 sharp thread forming teeth ensure the most secure connection in hard base materials. The Thunderbolt®Pro is a truly versatile anchor, as it can be installed in whole range of base materials such as concrete, block, brick, timber, marble, and stone, just to name a few. The precisely engineered design of ICCONS Thunderbolt®Pro is the result of extensive testing and provides market leading load performance. ICCONS Thunderbolt®Pro is a one piece, fast, efficient and cost effective fixing solution for any job

Exclusively for ICONX Account Holders. Apply Today.

Browse the ICCONS Dealer Network to find one near you.

See Product List Available in 22 variations
  • Product List
  • Features & Applications
  • Downloads
  • Installation
  • Video

Specifications

Part No / Finish
Description
Drill Diameter
Head Type
Embedment Depth
Max Material Thickness
CSK Drill Size
CSK Head Height
Clearance Hole
ETA Approval
Quantity
UoM
Price

Gal
SS
SXTBCS06050G
THUNDER BOLT PRO CSK 6 X 50MM GAL - ETA SEISMIC
6
CSK / T30
40
10
15
4.5
9
Option 1 & RNSS
100
SXTBCS06050SS
THUNDER BOLT PRO CSK 6 X 50MM 316 SS - ETA SEISMIC
6
CSK / T30
40
10
4.5
9
Option 1
100
SXTBCS06075G
THUNDER BOLT PRO CSK 6 X 75MM GAL - ETA SEISMIC
6
CSK / T30
55
20
15
4.5
9
Option 1 & RNSS
100
SXTBCS06075SS
THUNDER BOLT PRO CSK 6 X 75MM 316 SS - ETA SEISMIC
6
CSK / T30
55
20
4.5
9
Option 1
100
SXTBCS06100G
THUNDER BOLT PRO CSK 6 X 100 GAL - ETA SEISMIC
6
CSK / T30
55
45
15
4.5
9
Option 1 & RNSS
100
SXTBCS08060G
THUNDER BOLT PRO CSK 8 X 60MM GAL - ETA SEISMIC
8
CSK / T45
50
10
21
6.5
12
Option 1
100
SXTBCS08075G
THUNDER BOLT PRO CSK 8 X 75MM GAL - ETA SEISMIC
8
CSK / T45
50
25
21
6.5
12
Option 1
100
SXTBCS08075SS
THUNDER BOLT PRO CSK 8 X 75 316 SS - ETA SEISMIC
8
CSK / T45
50
25
6.5
12
Option 1
100
SXTBCS08100G
THUNDER BOLT PRO CSK 8 X 100MM GAL - ETA SEISMIC
8
CSK / T45
50
50
21
6.5
12
Option 1
100
SXTBCS08100SS
THUNDER BOLT PRO CSK 8 X 100 316 SS - ETA SEISMIC
8
CSK / T45
65
35
6.5
12
Option 1
100
SXTBCS08130G
THUNDER BOLT PRO CSK 8 X 130 GAL - ETA SEISMIC
8
CSK / T45
65
50
21
6.5
12
Option 1
100
SXTBCS10060G
THUNDER BOLT PRO CSK 10 X 60 GAL - ETA OPT 1
10
CSK / T50
55
5
24.5
7.3
14
Option 1
100
SXTBCS10065G
THUNDER BOLT PRO CSK 10 X 65MM GAL - ETA OPT 1
10
CSK / T50
55
10
24.5
7.3
14
Option 1
100
SXTBCS10075G
THUNDER BOLT PRO CSK 10 X 75MM GAL - ETA OPT 1
10
CSK / T50
55
20
24.5
7.3
14
Option 1
100
SXTBCS10075SS
THUNDER BOLT PRO CSK 10 X 75 316 SS - ETA SEISMIC
10
CSK / T50
55
20
7.3
14
Option 1
100
SXTBCS10100G
THUNDER BOLT PRO CSK 10 X 100MM GAL - ETA SEISMIC
10
CSK / T50
85
15
24.5
7.3
14
Option 1
100
SXTBCS10100SS
THUNDER BOLT PRO CSK 10 X 100 316 SS - ETA SEISMIC
10
CSK / T50
85
15
7.3
14
Option 1
100
SXTBCS12085G
THUNDERBOLT PRO CSK HEX 12 X 85MM GAL - ETA OPT 1
12
CSK / T55
75
10
28
8
16
Option 1
100
SXTBCS12100G
THUNDER BOLT PRO CSK 12 X 100MM GAL - ETA OPT 1
12
CSK / T55
75
25
28
8
16
Option 1
100
SXTBCS12100SS
THUNDER BOLT PRO CSK 12 X 100 316 SS - ETA SEISMIC
12
CSK / T55
75
25
8
16
Option 1
100
SXTBCS12150G
THUNDER BOLT PRO CSK 12 X 150MM GAL - ETA SEISMIC
12
CSK / T55
105
45
28
8
16
Option 1
100
SXTBCS12150SS
THUNDER BOLT PRO CSK 12 X 150 316 SS - ETA SEISMIC
12
CSK / T55
105
45
8
16
Option 1
100

Features & Applications

Features
• Optimum high-performance concrete and masonry screw bolt anchor
• AS 5216 compliant
• ETA assessed for cracked concrete and fire performance
• Countersunk head design with “lightning bolt” locking serrations for a secure fix
• Also available in Hex Head and Internal thread head designs
• Stamped head markings for easy identification and traceability
• Zinc, corrosion resistant Nautilus® C and stainless steel coating options
• Fast installation at reduced torque
• No expansion, ideal for close to edge applications
• Suitable for installation with impact drivers
• Removable
• Available on ICCONS Designfix software

Applications
• Structural fixings in cracked and uncracked concrete
• Tunnel fit out
• Cable tray support systems
• Seismic bracing of MEP systems
• Fastening steel strut channel and support straps for MEP
• Facade structures
• Guard rails
• Bollards and protective barriers
• Machinery and plant equipment
• Stadium and theatre seating
• Acoustic barriers
• balustrades and hand rails
• Scaffolding ties
• Formwork
• Plumbing and fire services
• Steel frame construction
• Timber frame construction
• Glazing, windows and storefronts
• Racking and shelving
• Fixings wood structures in concrete

Downloads

Installation

Installation

  • Use the correct diameter drill bit
  • Drill a hole to the required anchor embedment depth, plus at least one anchor diameter deeper
  • DO NOT use a worn drill bit outside tolerance specification
  • Ensure the hole is drilled perpendicular to the concrete, with a maximum deviation up to 5 degrees. Failure to do so may cause anchor breakage
  • Clean dust and other materials from the hole. Use ICCONS Blow Pump for a perfect result
  • Use a torque wrench or an impact driver
  • Ensure correct clearance hole in the fixture
  • Apply pressure against the fixing
  • Rotate to engage the first thread
  • Tighten the anchor until it is firmly seated
  • When using an impact driver DO NOT overtighten! Follow the torque guidance table, failure to comply may result in anchor breakage. Refer to ICCONS TDS for further information
