SDS Plus Trijet - Premium Long Life Bit

SDS Plus Trijet - Premium Long Life Bit

Product Summary

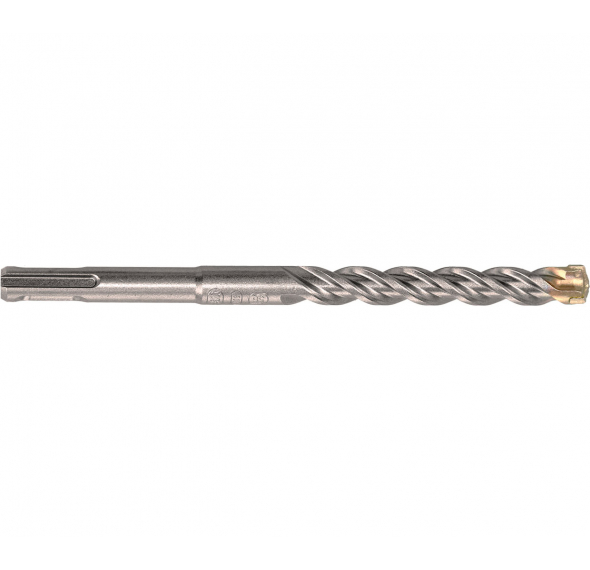

ICCONS enduro Trijet hammer drill bit by Heller (SDS-Plus) perfectly unites speed and robustness - even in reinforced concrete. The embedded carbide tip makes this drill bit extremely resilient. Users also benefit from very low vibration and positioning characteristics due to helix design. The enduro Trijet SDS-Plus hammer drill bit s also equipped with impeller cutting edge (for better dust removal), robust tungsten carbide head, and when drilling into rebar the Trijet tip has over 9 times service life when compared to trade series 2 cutter drill bits. If you are after the highest quality SDS-Plus drill bits for drilling through concrete, reinforced concrete, asphalt, clinker, marble, brickwork, stone, and granite, the Enduro Trijet by Heller is the best in the business.

See Product List Available in 33 variations

Exclusively for ICONX Account Holders. Apply Today.

Browse the ICCONS Dealer Network to find one near you.

  • Product List
  • Features & Applications

Specifications

Part No
Description
Diameter
Working Length
Total Length
Quantity
UoM
Price
HTJ05.0-110
SDS PLUS TRIJET 5.0 X 110MM (26740 3)
5
50
110
each
HTJ05.0-160
SDS PLUS TRIJET 5.0 X 160MM (26741 0)
5
100
160
each
HTJ05.5-110
SDS PLUS TRIJET 5.5 X 110MM (26742 7)
5.5
50
110
each
HTJ05.5-160
SDS PLUS TRIJET 5.5 X 160MM (26743 4)
5.5
100
160
each
HTJ06.0-110
SDS PLUS TRIJET 6.0 X 110MM (26744 1)
6
50
110
each
HTJ06.0-160
SDS PLUS TRIJET 6.0 X 160MM (26745 8)
6
100
160
each
HTJ06.0-210
SDS PLUS TRIJET 6.0 X 210MM (26746 5)
6
150
210
each
HTJ06.5-110
SDS PLUS TRIJET 6.5 X 110MM (26748 9)
6.5
50
110
each
HTJ06.5-160
SDS PLUS TRIJET 6.5 X 160MM (26749 6)
6.5
100
160
each
HTJ06.5-210
SDS PLUS TRIJET 6.5 X 210MM (26750 2)
6.5
150
210
each
HTJ07.0-160
SDS PLUS TRIJET 7.0 X 160MM (26751 9)
7
100
160
each
HTJ08.0-160
SDS PLUS TRIJET 8.0 X 160MM (26754 0)
8
100
160
each
HTJ08.0-210
SDS PLUS TRIJET 8.0 X 210MM (26755 7)
8
150
210
each
HTJ08.0-260
SDS PLUS TRIJET 8.0 X 260MM (26756 4)
8
200
260
each
HTJ08.0-310
SDS PLUS TRIJET 8.0 X 310MM (26757 1)
8
250
310
each
HTJ10.0-160
SDS PLUS TRIJET 10.0 X 160MM (26760 1)
10
100
160
each
HTJ10.0-210
SDS PLUS TRIJET 10.0 X 210MM (26761 8)
10
150
210
each
HTJ10.0-260
SDS PLUS TRIJET 10.0 X 260MM (26762 5)
10
200
260
each
HTJ10.0-310
SDS PLUS TRIJET 10.0 X 310MM (26763 2)
10
250
310
each
HTJ12.0-160
SDS PLUS TRIJET 12.0 X 160MM (26766 3)
12
100
160
each
HTJ12.0-210
SDS PLUS TRIJET 12.0 X 210MM (26767 0)
12
150
210
each
HTJ12.0-260
SDS PLUS TRIJET 12.0 X 260MM (26768 7)
12
200
260
each
HTJ12.0-310
SDS PLUS TRIJET 12.0 X 310MM (26769 4)
12
250
310
each
HTJ13.0-160
SDS PLUS TRIJET 13.0 X 160MM (28086 0)
13
100
160
each
HTJ13.0-250
SDS PLUS TRIJET 13.0 X 250MM (28087 7)
13
200
250
each
HTJ13.0-300
SDS PLUS TRIJET 13.0 X 300MM (28088 4)
13
250
300
each
HTJ14.0-250
SDS PLUS TRIJET 14.0 X 250MM (26774 8)
14
200
250
each
HTJ15.0-160
SDS PLUS TRIJET 15.0 X 160MM (28089 1)
15
100
160
each
HTJ15.0-250
SDS PLUS TRIJET 15.0 X 250MM (28090 7)
15
200
250
each
HTJ15.0-300
SDS PLUS TRIJET 15.0 X 300MM (28091 4)
15
250
300
each
HTJ16.0-200
SDS PLUS TRIJET 16.0 X 200MM (26778 6)
16
150
200
each
HTJ16.0-250
SDS PLUS TRIJET 16.0 X 250MM (26779 3)
16
200
250
each
HTJ16.0-300
SDS PLUS TRIJET 16.0 X 300MM (26780 9)
16
250
300
each

Features & Applications

Features
• Impeller cutting edge with 3 blades for more effective material removal
• Increased power transmission when drilling thanks to shaft-form head design
• Long service life thanks to extremely wear-resistant single-phase tungsten carbide alloy
• Robust head geometry thanks to embedded tungsten carbide head, will withstand multi impacts with reinforcement
• Compared to an average 2-cutter the Trijet achieves nine times the service life when drilling through rebar. Please note: Drilling through reinforced concrete is only permitted after approval by the structural engineer
• Extremely fast removal of dust without blow-out thanks to wide spiral form
• Optimized low-vibration triple spiral
• DuraTec hardening technique by means of high-temperature soldering and shot-blasting technology
• Certified by the Prüfgemeinschaft Mauerbohrer (PGM) in accordance with the requirements of the Deutsches Institute für Bautechnik (DIBt)

Applications
• Heavy concrete
• Reinforced concrete
• Prestressed concrete
• Asphalt
• Concrete
• Sand and lime stone
• Clinker
• Marble
• Brickwork
• Natural stone
• Granite
