Aluminium / Steel - Countersunk Head Rivets

Aluminium / Steel - Countersunk Head Rivets

Product Summary

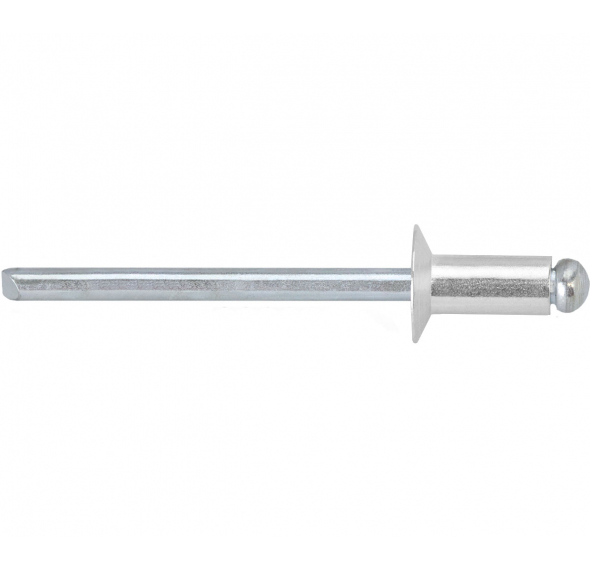

Consisting of high quality zinc plated steel mandrel and 5056 grade aluminium alloy body, the countersunk head rivet is perfect for applications where a flush, aesthetic finish is required. Ideal for applications such as guttering, downpipes and general assembly. Suitable for both the Professional Blind Rivet Tool (hand held: RTP-55) as well as the Scell-It 18V Cordless Blind Rivet Tool (power tool: RT-18VE5).

Exclusively for ICONX Account Holders. Apply Today.

Browse the ICCONS Dealer Network to find one near you.

See Product List Available in 15 variations
  • Product List
  • Features & Applications
  • Downloads

Specifications

Part No
Description
Finish
Drill Diameter
Body Diameter
Body Length
Grip Range
Shear (N)
Tensile (N)
Quantity
UoM
Price
RC-AS42
RIVET COUNTERSUNK ALU-STEEL 4-2
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
7
1.6 - 3.2
530
670
1000
RC-AS43
RIVET COUNTERSUNK ALU-STEEL 4-3
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RC-AS44
RIVET COUNTERSUNK ALU-STEEL 4-4
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
10.2
4.8 - 6.4
530
670
1000
RC-AS45
RIVET COUNTERSUNK ALU-STEEL 4-5
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
11.7
6.4 - 7.9
530
670
1000
RC-AS46
RIVET COUNTERSUNK ALU-STEEL 4-6
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
13.3
7.9 - 9.5
530
670
1000
RC-AS52
RIVET COUNTERSUNK ALU-STEEL 5-2
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
7.6
0.5 - 3.2
850
1020
1000
RC-AS53
RIVET COUNTERSUNK ALU-STEEL 5-3
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
9.2
3.2 - 4.8
850
1020
1000
RC-AS54
RIVET COUNTERSUNK ALU-STEEL 5-4
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RC-AS56
RIVET COUNTERSUNK ALU-STEEL 5-6
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
14
7.9 - 9.5
850
1020
1000
RC-AS610
RIVET COUNTERSUNK ALU-STEEL 6-10
ALUMINIUM / STEEL
4.9MM (#11)
4.8MM (3/16)
21
12.7 - 15.9
1160
1430
1000
RC-AS62
RIVET COUNTERSUNK ALU-STEEL 6-2
ALUMINIUM / STEEL
4.9MM (#11)
4.8MM (3/16)
8.3
0.5 - 3.2
1160
1430
1000
RC-AS63
RIVET COUNTERSUNK ALU-STEEL 6-3
ALUMINIUM / STEEL
4.9MM (#11)
4.8MM (3/16)
9.8
3.2 - 4.8
1160
1430
1000
RC-AS64
RIVET COUNTERSUNK ALU-STEEL 6-4
ALUMINIUM / STEEL
4.9MM (#11)
4.8MM (3/16)
11.4
4.8 - 6.4
1160
1430
1000
RC-AS66
RIVET COUNTERSUNK ALU-STEEL 6-6
ALUMINIUM / STEEL
4.9MM (#11)
4.8MM (3/16)
14.6
7.9 - 9.5
1160
1430
1000
RC-AS68
RIVET COUNTERSUNK ALU-STEEL 6-8
ALUMINIUM / STEEL
4.9MM (#11)
4.8MM (3/16)
17.8
9.5 - 12.7
1160
1430
1000

Features & Applications

Features
• 5056 grade aluminium alloy body
• Designed to have an extended grip range
• Suitable for both the Professional Blind Rivet Tool (hand held: RTP-55) as well as the Scell-It 18V Cordless Blind Rivet Tool (power tool: RT-18VE5)

Applications
• Ideal for light duty applications
• Perfect for guttering, downpipes, letterboxes and general assembly
