Painted - Type 17 Hex Top Grip with Sealing Washer - Coarse Thread

Painted - Type 17 Hex Top Grip with Sealing Washer - Coarse Thread

Product Summary

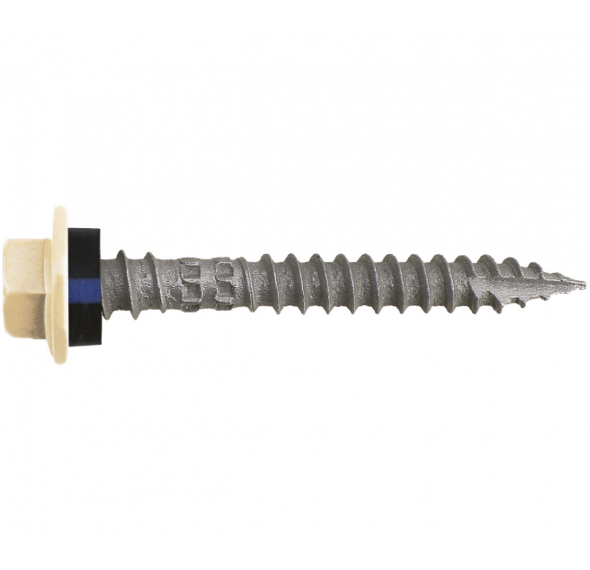

Type 17 hex head top grip with Dekfast Multiseal washer for fastening metal roof sheet to timber battens or other timber substrates. This screw is perfect in steel roof construction where the sharp, fluted (type 17) point can easily drive into timber substrates. The flanged hex head lends to high pull-out strength and a class 4 galvanised coating results in strong corrosion resistance. Top grip thread ensures a secure hold on sheeting and prevents dimpling. ICCONS top grip threaded screws also come with upper shank protection the removes burrs that may damage the Dekfast Multiseal washer, and helps protect the galvanised coating on the upper thread. ICCONS Class 4 galvanised coating leaves little swarf (dust) for a quicker clean-up and high corrosion resistance.

See Product List Available in 27 variations

Exclusively for ICONX Account Holders. Apply Today.

Browse the ICCONS Dealer Network to find one near you.

  • Product List
  • Features & Applications
  • Downloads

Specifications

Part No / Finish
Description
Head Type
Embedment Depth
Thread Length
Quantity
UoM
Price

Gal
546W-BA
TYPE 17 HEX TOP GRIP C4 12-11 X 50 BASALT
HEX 5/16
30
FULL
1000
546W-BU
TYPE 17 HEX TOP GRIP C4 12-11 X 50 BUSHLAND
HEX 5/16
30
FULL
1000
546W-CC
TYPE 17 HEX TOP GRIP C4 12-11 X 50 CLASSIC CREAM
HEX 5/16
30
FULL
1000
546W-CG
TYPE 17 HEX TOP GRIP C4 12-11 X 50 COTTAGE GREEN
HEX 5/16
30
FULL
1000
546W-CO
TYPE 17 HEX TOP GRIP C4 12-11 X 50 COVE
HEX 5/16
30
FULL
1000
546W-DO
TYPE 17 HEX TOP GRIP C4 12-11 X 50 DEEP OCEAN
HEX 5/16
30
FULL
1000
546W-DU
TYPE 17 HEX TOP GRIP C4 12-11 X 50 DUNE
HEX 5/16
30
FULL
1000
546W-EH
TYPE 17 HEX TOP GRIP C4 12-11 X 50 EVENING HAZE
HEX 5/16
30
FULL
1000
546W-GU
TYPE 17 HEX TOP GRIP C4 12-11 X 50 GULLY
HEX 5/16
30
FULL
1000
546W-HE
TYPE 17 HEX TOP GRIP C4 12-11 X 50 HEADLAND
HEX 5/16
30
FULL
1000
546W-IS
TYPE 17 HEX TOP GRIP C4 12-11 X 50 IRONSTONE
HEX 5/16
30
FULL
1000
546W-JA
TYPE 17 HEX TOP GRIP C4 12-11 X 50 JASPER
HEX 5/16
30
FULL
1000
546W-LO
TYPE 17 HEX TOP GRIP C4 12-11 X 50 LOFT
HEX 5/16
30
FULL
1000
546W-MA
TYPE 17 HEX TOP GRIP C4 12-11 X 50 MANGROVE
HEX 5/16
30
FULL
1000
546W-MO
TYPE 17 HEX TOP GRIP C4 12-11 X 50 MONUMENT
HEX 5/16
30
FULL
1000
546W-MR
TYPE 17 HEX TOP GRIP C4 12-11 X 50 MANOR RED
HEX 5/16
30
FULL
1000
546W-NS
TYPE 17 HEX TOP GRIP C4 12-11 X 50 NIGHT SKY
HEX 5/16
30
FULL
1000
546W-PA
TYPE 17 HEX TOP GRIP C4 12-11 X 50 PAPERBARK
HEX 5/16
30
FULL
1000
546W-PE
TYPE 17 HEX TOP GRIP C4 12-11 X 50 PALE EUCALYPT
HEX 5/16
30
FULL
1000
546W-SA
TYPE 17 HEX TOP GRIP C4 12-11 X 50 SANDBANK
HEX 5/16
30
FULL
1000
546W-SG
TYPE 17 HEX TOP GRIP C4 12-11 X 50 SHALE GREY
HEX 5/16
30
FULL
1000
546W-SM
TYPE 17 HEX TOP GRIP C4 12-11 X 50 SURF MIST
HEX 5/16
30
FULL
1000
546W-TE
TYPE 17 HEX TOP GRIP C4 12-11 X 50 TERRAIN
HEX 5/16
30
FULL
1000
546W-WA
TYPE 17 HEX TOP GRIP C4 12-11 X 50 WALLABY
HEX 5/16
30
FULL
1000
546W-WG
TYPE 17 HEX TOP GRIP C4 12-11 X 50 WOODLAND GREY
HEX 5/16
30
FULL
1000
546W-WI
TYPE 17 HEX TOP GRIP C4 12-11 X 50 WILDERNESS
HEX 5/16
30
FULL
1000
546W-WS
TYPE 17 HEX TOP GRIP C4 12-11 X 50 WINDSPRAY
HEX 5/16
30
FULL
1000

Features & Applications

Features
• 11 TPI for fast and easy installation
• Upper shank protection removes burrs that may damage the Dekfast Multiseal washer, and helps protect the coating on the upper thread
• The Type 17 point is a sharp, fluted point offering great timber penetration and drive when accompanied by a coarse biting thread, ultimately allowing for a quicker and cleaner install
• Dekfast Multiseal washer
• Available in Class 4 galvanised finish, perfect for external applications
• High pull-out loads
• No pre-drilling (some hardwoods may require pre-drilling)

Applications
• Ideal for fastening metal roof sheets to timber battens and other timber substrates
