Toge TSM B - Rod Hanger External Thread

NCC
Toge TSM B - Rod Hanger External Thread

Product Summary

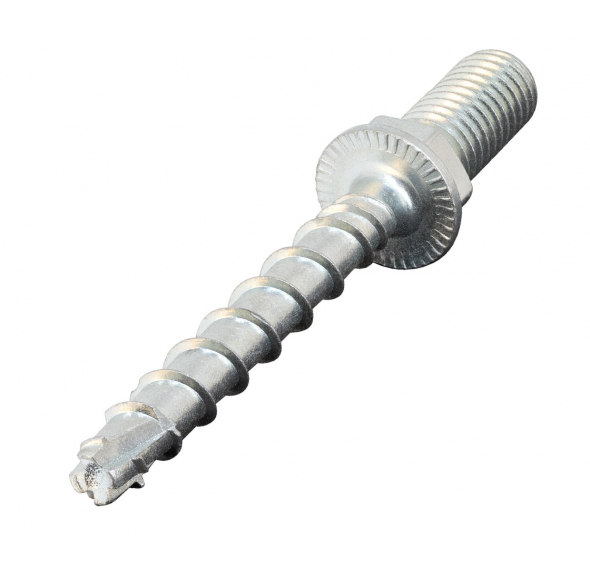

The Toge TSM Rod Hanger features quick and safe installation, high load capacities in both cracked and non-cracked concrete with undercut load transmission.
Toge TSM Rod Hanger is Australian Standard Compliant (AS5216:2021), ETA Approved in Cracked Concrete, Fire Rated and Seismic Rated.
The Toge TSM Rod Hanger is perfect for applications requiring safety critical threaded rod suspension, such as AC ducting, hanging pipe, fire protection, cable tray installation, and many other mechanical and electrical applications.

Toge Dubel is one of the leading innovative screw manufacturers in the world, specialising in concrete screw anchor technology. Screw-Bolts give a positive connection that is free of expansion pressure in most base materials lending them to great close-to-edge fixing characteristics.

Exclusively for ICONX Account Holders. Apply Today.

Browse the ICCONS Dealer Network to find one near you.

See Product List Available in 3 variations
  • Product List
  • Features & Applications
  • Downloads

Specifications

Part No / Finish
Description
Drill Diameter
Head Type
Embedment Depth
Head Width
External Thread
ETA Approval
Quantity
UoM
Price

Zinc
TSMB06040ZG
TSM BOLT 6 X 40 M8 EXT SW10 DRIVE ZINC (355 006 040)
6
HEX / EXT THREAD
40
10
M8
Option 1 & RNSS
100
TSMB06040ZG-M10
TSM BOLT 6 X 40 M10 EXT SW10 DRIVE ZINC (355 206 040)
6
HEX / EXT THREAD
40
13
M10
Option 1 & RNSS
100
TSMB06055ZG
TSM BOLT 6 X 55 M8 EXT SW10 DRIVE ZINC (355 006 055)
6
HEX / EXT THREAD
55
10
M8
Option 1 & RNSS
100

Features & Applications

Features
• National Code Compliant (NCC)
• ETA Approved
• Seismic Rated
• Fire Rated
• CE Certified
• Quick and safe installation
• High load capacities in both cracked and non-cracked concrete
• Easily removed and does not leave residue or metal components
• Loads can be achieved immediately upon installation

Applications
• Suspending threaded rod
• Suspending conduit
• HVAC ductwork and strut channels
• AC ducting
• Hanging pipe
• Fire protection
• Cable tray applications
• Pipeline fastening
• Ceiling suspension fastening
• Suitable for concrete substrates
