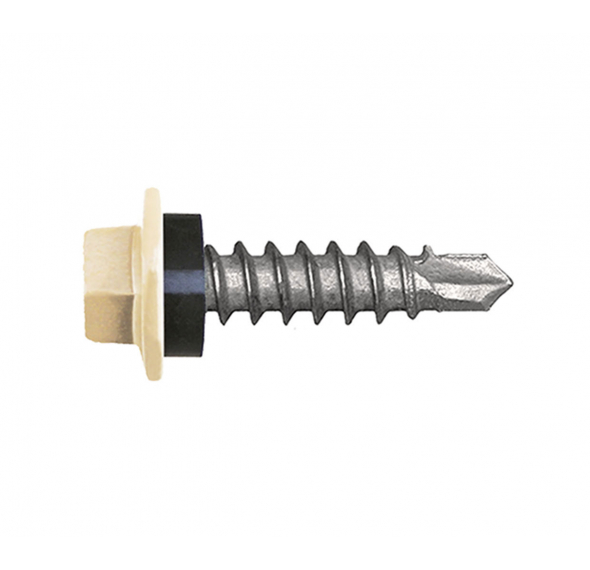

Painted - Wall-Stars with Sealing Washer - Cladding Screw To Metal Or Timber

Product Summary

Wall stars with an EPDM sealing washer are a self-drilling universal cladding screw for fastening cladding to thin metal battens, steel purlins or alternatively can be used to fasten to timber battens where a rubber seal is required. This screw is perfect in residential and commercial construction where cladding to steel or timber is required. Universal self drilling point enables the tip to drill through light gauge mild steel and timber alike. The flanged hex head lends to high pull-out strength and a class 4 galvanised coating results in strong corrosion resistance.

Dealer Login

Exclusively for ICONX Account Holders. Apply Today.

Find a dealer

Browse the ICCONS Dealer Network to find one near you.

See Product List Available in 54 variations

Back

Download Tech Specs

Product List
Features & Applications
Downloads

Specifications

Gal

166-WO

SD HEX METAL/TIMBER C5 13-11 X 25 WOLLEMI

HEX 5/16

FULL

0.55-1.90

1000

166W-BA

SD HEX METAL/TIMBER WASHERED C4 13-11 X 25 BASALT

HEX 5/16

FULL

1000

166W-BG

SD HEX METAL/TIMBER WASHERED C4 13-11 X 25 BLUEGUM

HEX 5/16

FULL

0.55-1.90

1000

166W-CC

SD HEX METAL/TIMBER WASHERED C4 13-11 X 25 CLASSIC CREAM

HEX 5/16

FULL

0.55-1.90

1000

166W-CG

SD HEX METAL/TIMBER WASHERED C4 13-11 X 25 COTTAGE GREEN

HEX 5/16

FULL

0.55-1.90

1000

166W-CO

SD HEX METAL/TIMBER WASHERED C4 13-11 X 25 COVE

HEX 5/16

FULL

0.55-1.90

1000

166W-DO

SD HEX METAL/TIMBER WASHERED C4 13-11 X 25 DEEP OCEAN

HEX 5/16

FULL

0.55-1.90

1000

166W-DU

SD HEX METAL/TIMBER WASHERED C4 13-11 X 25 DUNE

HEX 5/16

FULL

0.55-1.90

1000

166W-DW

SD HEX METAL/TIMBER WASHERED C4 13-11 X 25 DOVER WHITE

HEX 5/16

FULL

0.55-1.90

1000

166W-EH

SD HEX METAL/TIMBER WASHERED C4 13-11 X 25 EVENING HAZE

HEX 5/16

FULL

0.55-1.90

1000

166W-GU

SD HEX METAL/TIMBER WASHERED C4 13-11 X 25 GULLY

HEX 5/16

FULL

0.55-1.90

1000

166W-IS

SD HEX METAL/TIMBER WASHERED C4 13-11 X 25 IRONSTONE

HEX 5/16

FULL

0.55-1.90

1000

166W-JA

SD HEX METAL/TIMBER WASHERED C4 13-11 X 25 JASPER

HEX 5/16

FULL

0.55-1.90

1000

166W-LO

SD HEX METAL/TIMBER WASHERED C4 13-11 X 25 LOFT

HEX 5/16

FULL

0.55-1.90

1000

166W-MA

SD HEX METAL/TIMBER WASHERED C4 13-11 X 25 MANGROVE

HEX 5/16

FULL

0.55-1.90

1000

166W-MO

SD HEX METAL/TIMBER WASHERED C4 13-11 X 25 MONUMENT

HEX 5/16

FULL

0.55-1.90

1000

166W-MR

SD HEX METAL/TIMBER WASHERED C4 13-11 X 25 MANOR RED

HEX 5/16

FULL

0.55-1.90

1000

166W-NS

SD HEX METAL/TIMBER WASHERED C4 13-11 X 25 NIGHT SKY

HEX 5/16

FULL

0.55-1.90

1000

166W-PA

SD HEX METAL/TIMBER WASHERED C4 13-11 X 25 PAPERBARK

HEX 5/16

FULL

0.55-1.90

1000

166W-PE

SD HEX METAL/TIMBER WASHERED C4 13-11 X 25 PALE EUCALYPT

HEX 5/16

FULL

0.55-1.90

1000

166W-SA

SD HEX METAL/TIMBER WASHERED C4 13-11 X 25 SANDBANK

HEX 5/16

FULL

0.55-1.90

1000

166W-SG

SD HEX METAL/TIMBER WASHERED C4 13-11 X 25 SHALE GREY

HEX 5/16

FULL

0.55-1.90

1000

166W-SM

SD HEX METAL/TIMBER WASHERED C4 13-11 X 25 SURF MIST

HEX 5/16

FULL

0.55-1.90

1000

166W-SO

SD HEX METAL/TIMBER WASHERED C4 13-11 X 25 SOUTHERLY

HEX 5/16

FULL

0.55-1.90

1000

166W-TE

SD HEX METAL/TIMBER WASHERED C4 13-11 X 25 TERRAIN

HEX 5/16

FULL

0.55-1.90

1000

166W-WA

SD HEX METAL/TIMBER WASHERED C4 13-11 X 25 WALLABY

HEX 5/16

FULL

0.55-1.90

1000

166W-WG

SD HEX METAL/TIMBER WASHERED C4 13-11 X 25 WOODLAND GREY

HEX 5/16

FULL

0.55-1.90

1000

166W-WI

SD HEX METAL/TIMBER WASHERED C4 13-11 X 25 WILDERNESS

HEX 5/16

FULL

0.55-1.90

1000

166W-WO

SD HEX METAL/TIMBER WASHERED C5 13-11 X 25 WOLLEMI

HEX 5/16

FULL

0.55-1.90

1000

166W-WS

SD HEX METAL/TIMBER WASHERED C4 13-11 X 25 WINDSPRAY

HEX 5/16

FULL

0.55-1.90

1000

168W-BA

SD HEX METAL/TIMBER WASHERED C4 14-11 X 30 BASALT

HEX 3/8

FULL

0.55 - 1.90

1000

SD HEX METAL/TIMBER WASHERED C4 14-11 X 30 BLUEGUM

HEX 3/8

FULL

0.55 - 1.90

1000

168W-CC

SD HEX METAL/TIMBER WASHERED C4 14-11 X 30 CLASSIC CREAM

HEX 3/8

FULL

0.55 - 1.90

1000

168W-CG

SD HEX METAL/TIMBER WASHERED C4 14-11 X 30 COTTAGE GREEN

HEX 3/8

FULL

0.55 - 1.90

1000

168W-DO

SD HEX METAL/TIMBER WASHERED C4 14-11 X 30 DEEP OCEAN

HEX 3/8

FULL

0.55 - 1.90

1000

168W-DU

SD HEX METAL/TIMBER WASHERED C4 14-11 X 30 DUNE

HEX 3/8

FULL

0.55 - 1.90

1000

SD HEX METAL/TIMBER WASHERED C4 14-11 X 30 DOVER WHITE

HEX 3/8

FULL

0.55 - 1.90

1000

168W-EH

SD HEX METAL/TIMBER WASHERED C4 14-11 X 30 EVENING HAZE

HEX 3/8

FULL

0.55 - 1.90

1000

168W-GU

SD HEX METAL/TIMBER WASHERED C4 14-11 X 30 GULLY

HEX 3/8

FULL

0.55 - 1.90

1000

168W-IS

SD HEX METAL/TIMBER WASHERED C4 14-11 X 30 IRONSTONE

HEX 3/8

FULL

0.55 - 1.90

1000

168W-JA

SD HEX METAL/TIMBER WASHERED C4 14-11 X 30 JASPER

HEX 3/8

FULL

0.55 - 1.90

1000

168W-MO

SD HEX METAL/TIMBER WASHERED C4 14-11 X 30 MONUMENT

HEX 3/8

FULL

0.55 - 1.90

1000

168W-MR

SD HEX METAL/TIMBER WASHERED C4 14-11 X 30 MANOR RED

HEX 3/8

FULL

0.55 - 1.90

1000

168W-NS

SD HEX METAL/TIMBER WASHERED C4 14-11 X 30 NIGHT SKY

HEX 3/8

FULL

0.55 - 1.90

1000

168W-PA

SD HEX METAL/TIMBER WASHERED C4 14-11 X 30 PAPERBARK

HEX 3/8

FULL

0.55 - 1.90

1000

168W-PE

SD HEX METAL/TIMBER WASHERED C4 14-11 X 30 PALE EUCALYPT

HEX 3/8

FULL

0.55 - 1.90

1000

168W-SG

SD HEX METAL/TIMBER WASHERED C4 14-11 X 30 SHALE GREY

HEX 3/8

FULL

0.55 - 1.90

1000

168W-SM

SD HEX METAL/TIMBER WASHERED C4 14-11 X 30 SURFMIST

HEX 3/8

FULL

0.55 - 1.90

1000

SD HEX METAL/TIMBER WASHERED C4 14-11 X 30 SOUTHERLY

HEX 3/8

FULL

0.55 - 1.90

1000

168W-WA

SD HEX METAL/TIMBER WASHERED C4 14-11 X 30 WALLABY

HEX 3/8

FULL

0.55 - 1.90

1000

168W-WG

SD HEX METAL/TIMBER WASHERED C4 14-11 X 30 WOODLAND GREY

HEX 3/8

FULL

0.55 - 1.90

1000

168W-WI

SD HEX METAL/TIMBER WASHERED C4 14-11 X 30 WILDERNESS

HEX 3/8

FULL

0.55 - 1.90

1000

168W-WO

SD HEX METAL/TIMBER WASHERED C4 14-11 X 30 WOLLEMI

HEX 3/8

FULL

0.55 - 1.90

1000

168W-WS

SD HEX METAL/TIMBER WASHERED C4 14-11 X 30 WINDSPRAY

HEX 3/8

FULL

0.55 - 1.90

1000

Features & Applications

Features
• Universal point for fastening into steel or timber
• EPDM sealing washer
• Available in Class 4 galvanisation, perfect for external applications
• High pull-out loads
• No pre-drilling (please see material thickness for drilling capacities)

Applications
• Ideal for fastening cladding to thin metal battens, steel purlins or timber battens
• Perfect for residential or commercial construction where cladding to steel or timber is required
• Ideal for installations where a rubber seal is required
