Type 17 Hex - Coarse Thread

Type 17 Hex - Coarse Thread

Product Summary

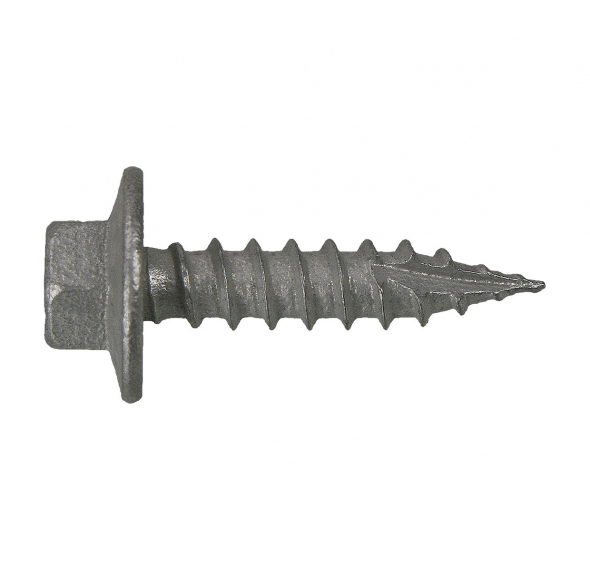

A coarse thread hex head screw designed for a range of general fastening applications such as fixing timber or thin steel to a timber substrate, whilst eliminating the need for pre-drilling. The Type 17 point is a sharp, fluted point offering great timber penetration and drive when accompanied by a coarse biting thread, ultimately allowing for a quicker and cleaner install. This screw is available in zinc yellow or class 4 galvanised variants, making it ideal for internal and external applications.

See Product List Available in 34 variations

Exclusively for ICONX Account Holders. Apply Today.

Browse the ICCONS Dealer Network to find one near you.

  • Product List
  • Features & Applications
  • Downloads

Specifications

Part No / Finish
Description
Head Type
Embedment Depth
Thread Length
Quantity
UoM
Price

Zinc
Gal
SS
T17HX1025C3
501 - TYPE 17 HEX C3 10-12 X 25
HEX 5/16
23
FULL
1000
T17HX1025C4
500 - TYPE 17 HEX C4 10-12 X 25
HEX 5/16
23
FULL
1000
T17HX1225C3
505 - TYPE 17 HEX C3 12-11 X 25
HEX 5/16
23
FULL
1000
T17HX1225C4
504 - TYPE 17 HEX C4 12-11 X 25
HEX 5/16
23
FULL
1000
T17HX1225ZY
540 - TYPE 17 HEX ZY 12-11 X 25
HEX 5/16
23
FULL
1000
T17HX1235C3
507 - TYPE 17 HEX C3 12-11 X 35
HEX 5/16
30
FULL
1000
T17HX1235C4
506 - TYPE 17 HEX C4 12-11 X 35
HEX 5/16
30
FULL
1000
T17HX1240C3
509 - TYPE 17 HEX C3 12-11 X 40
HEX 5/16
30
FULL
1000
T17HX1240C4
508 - TYPE 17 HEX C4 12-11 X 40
HEX 5/16
30
FULL
1000
T17HX1240ZY
542 - TYPE 17 HEX ZY 12-11 X 40
HEX 5/16
30
FULL
1000
T17HX1245C4
510 - TYPE 17 HEX C4 12-11 X 45
HEX 5/16
30
30
1000
T17HX1250C4
512 - TYPE 17 HEX C4 12-11 X 50
HEX 5/16
30
33
1000
T17HX1250ZY
544 - TYPE 17 HEX ZY 12-11 X 50
HEX 5/16
30
33
1000
T17HX1265C4
514 - TYPE 17 HEX C4 12-11 X 65
HEX 5/16
30
43
1000
T17HX1265ZY
545 - TYPE 17 HEX ZY 12-11 X 65
HEX 5/16
30
43
1000
T17HX14025C4
516 - TYPE 17 HEX C4 14-10 X 25
HEX 3/8
23
FULL
1000
T17HX14025SS
684 - TYPE 17 HEX 304SS 14-10 X 25
HEX 3/8
23
FULL
1000
T17HX14030C3
662 - TYPE 17 HEX C3 14-10 X 30
HEX 3/8
25
FULL
1000
T17HX14040C4
518 - TYPE 17 HEX C4 14-10 X 40
HEX 3/8
35
FULL
1000
T17HX14050C3
521 - TYPE 17 HEX C3 14-10 X 50
HEX 3/8
35
33
1000
T17HX14050C4
520 - TYPE 17 HEX C4 14-10 X 50
HEX 3/8
35
33
1000
T17HX14050SS
686 - TYPE 17 HEX 304SS 14-10 X 50
HEX 3/8
35
33
1000
T17HX14065C4
522 - TYPE 17 HEX C4 14-10 X 65
HEX 3/8
35
43
1000
T17HX14075C3
525 - TYPE 17 HEX C3 14-10 X 75
HEX 3/8
35
50
1000
T17HX14075C4
524 - TYPE 17 HEX C4 14-10 X 75
HEX 3/8
35
50
1000
T17HX14090C3
527 - TYPE 17 HEX C3 14-10 X 90
HEX 3/8
35
60
1000
T17HX14090C3-250
527 - TYPE 17 HEX C3 14-10 X 90 (QTY 250)
HEX 3/8
35
60
1000
T17HX14090C4
526 - TYPE 17 HEX C4 14-10 X 90
HEX 3/8
35
60
1000
T17HX14100C3
529 - TYPE 17 HEX C3 14-10 X 100
HEX 3/8
35
60
1000
T17HX14100C4
528 - TYPE 17 HEX C4 14-10 X 100
HEX 3/8
35
60
1000
T17HX14115C4
530 - TYPE 17 HEX C4 14-10 X 115
HEX 3/8
35
60
1000
T17HX14125C4
532 - TYPE 17 HEX C4 14-10 X 125
HEX 3/8
35
60
1000
T17HX14150C3
535 - TYPE 17 HEX C3 14-10 X 150
HEX 3/8
35
100
1000
T17HX14150C4
534 - TYPE 17 HEX C4 14-10 X 150
HEX 3/8
35
100
1000

Features & Applications

Features
• Hex head increases effective clamping area and pull-out resistance
• The Type 17 point is a sharp, fluted point offering great timber penetration and drive when accompanied by a coarse biting thread, ultimately allowing for a quicker and cleaner install
• Available in zinc yellow or class 4 galvanised finish for indoor and outdoor applications

Applications
• Designed to fix timber or thin steel to timber substrates
