Needle Point Bugle Head - Fine Thread

Needle Point Bugle Head - Fine Thread

Product Summary

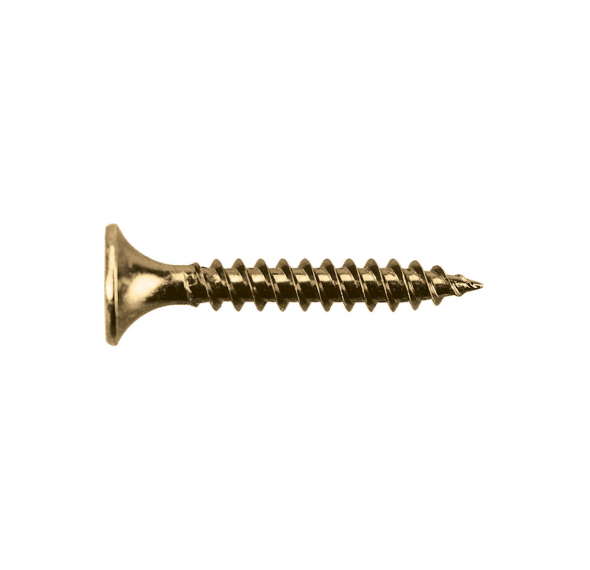

Needle Point Bugle Head Fine Thread screws are ideal for fixing plasterboard to thin steel substrates such as walls and ceilings (ensure steel thickness is no more than 0.75mm). These needle point screws come equip with a No. 2 Philips drive and fine thread for self drilling into thin gauge steel.

Exclusively for ICONX Account Holders. Apply Today.

Browse the ICCONS Dealer Network to find one near you.

See Product List Available in 14 variations
  • Product List
  • Features & Applications

Specifications

Part No / Finish
Description
Head Type
Thread Length
Material Thickness
Quantity
UoM
Price

Zinc
NPBUF0620ZY
700 - NEEDLE POINT BUGLE FINE ZY 6-18 X 20
BUGLE / PH2
FULL
0.5 - 0.75
1000
NPBUF0625ZY
702 - NEEDLE POINT BUGLE FINE ZY 6-18 X 25
BUGLE / PH2
FULL
0.5 - 0.75
1000
NPBUF0632ZY
704 - NEEDLE POINT BUGLE FINE ZY 6-18 X 32
BUGLE / PH2
FULL
0.5 - 0.75
1000
NPBUF0635ZY
706 - NEEDLE POINT BUGLE FINE ZY 6-18 X 35
BUGLE / PH2
FULL
0.5 - 0.75
1000
NPBUF0641ZY
708 - NEEDLE POINT BUGLE FINE ZY 6-18 X 41
BUGLE / PH2
FULL
0.5 - 0.75
1000
NPBUF0645ZY
710 - NEEDLE POINT BUGLE FINE ZY 6-18 X 45
BUGLE / PH2
FULL
0.5 - 0.75
1000
NPBUF0725ZY
714 - NEEDLE POINT BUGLE FINE ZY 7-15 X 25
BUGLE / PH2
FULL
0.5 - 0.75
1000
NPBUF0732ZY
716 - NEEDLE POINT BUGLE FINE ZY 7-15 X 32
BUGLE / PH2
FULL
0.5 - 0.75
1000
NPBUF0745ZY
718 - NEEDLE POINT BUGLE FINE ZY 7-15 X 45
BUGLE / PH2
FULL
0.5 - 0.75
1000
NPBUF0750ZY
720 - NEEDLE POINT BUGLE FINE ZY 7-15 X 50
BUGLE / PH2
FULL
0.5 - 0.75
1000
NPBUF0757ZY
722 -NEEDLE POINT BUGLE ZY 7-15 X 57
BUGLE / PH2
50
0.5 - 0.75
1000
NPBUF0865ZY
726 - NEEDLE POINT BUGLE FINE ZY 8-15 X 65
BUGLE / PH2
50
0.5 - 0.75
1000
NPBUF0875ZY
728 - NEEDLE POINT BUGLE FINE ZY 8-15 X 75
BUGLE / PH2
50
0.5 - 0.75
1000
NPBUF10100ZY
736 - NEEDLE POINT BUGLE FINE ZY 10-12 X 100
BUGLE / PH2
65
0.5 - 0.75
1000

Features & Applications

Features
• Piercing needle point for penetrating thin gauge steel (up to 0.75mm thick)
• Fine thread for greater screw control and self tapping into thin steel
• No. 2 Phillips recess drive
• Bugle head for flush finish

Applications
• Fixing plasterboard to steel frames (wall and ceiling construction)
