Painted - Self Drilling Hex Top Grip with Sealing Washer - Coarse Thread

Painted - Self Drilling Hex Top Grip with Sealing Washer - Coarse Thread

Product Summary

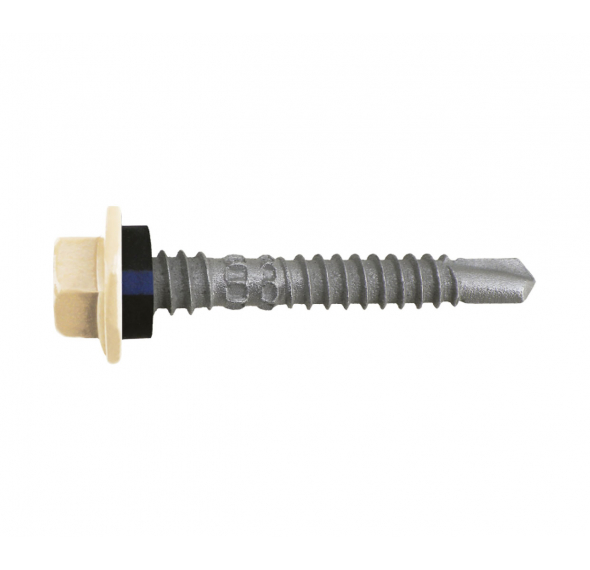

Self-drilling hex head top grip with EPDM sealing washer for fastening metal roof sheet to metal battens, steel purlins or other steel substrates. This screw is perfect in steel roof construction where a heavy duty roofing screw is required. Hardened steel self drilling point (tek) enables the tip to drill through up to 4.5mm mild steel. The flanged hex head lends to high pull-out strength and a class 4 galvanised coating results in strong corrosion resistance. Top grip thread ensures a secure hold on sheeting and prevents dimpling. ICCONS top grip threaded screws also come with upper shank protection the removes burrs that may damage the EPDM washer, and helps protect the galvanised coating on the upper thread. ICCONS Class 4 galvanised coating leaves little swarf (dust) for a quicker clean-up and high corrosion resistance.

Exclusively for ICONX Account Holders. Apply Today.

Browse the ICCONS Dealer Network to find one near you.

See Product List Available in 62 variations
  • Product List
  • Features & Applications
  • Downloads

Specifications

Part No / Finish
Description
Head Type
Thread Length
Material Thickness
Quantity
UoM
Price

Gal
156W-BA
SD HEX TOP GRIP C4 12-14 X 42 BASALT
HEX 5/16
FULL
1.00-4.50
1000
156W-BG
SD HEX TOP GRIP C4 12-14 X 42 BLUEGUM
HEX 5/16
FULL
1.00-4.50
1000
156W-BU
SD HEX TOP GRIP C4 12-14 X 42 BUSHLAND
HEX 5/16
FULL
1.00-4.50
1000
156W-CC
SD HEX TOP GRIP C4 12-14 X 42 CLASSIC CREAM
HEX 5/16
FULL
1.00-4.50
1000
156W-CG
SD HEX TOP GRIP C4 12-14 X 42 COTTAGE GREEN
HEX 5/16
FULL
1.00-4.50
1000
156W-CO
SD HEX TOP GRIP C4 12-14 X 42 COVE
HEX 5/16
FULL
1.00-4.50
1000
156W-DO
SD HEX TOP GRIP C4 12-14 X 42 DEEP OCEAN
HEX 5/16
FULL
1.00-4.50
1000
156W-DU
SD HEX TOP GRIP C4 12-14 X 42 DUNE
HEX 5/16
FULL
1.00-4.50
1000
156W-DW
SD HEX TOP GRIP C4 12-14 X 42 DOVER WHITE
HEX 5/16
FULL
1.00-4.50
1000
156W-EH
SD HEX TOP GRIP C4 12-14 X 42 EVENING HAZE
HEX 5/16
FULL
1.00-4.50
1000
156W-GU
SD HEX TOP GRIP C4 12-14 X 42 GULLY
HEX 5/16
FULL
1.00-4.50
1000
156W-HE
SD HEX TOP GRIP C4 12-14 X 42 HEADLAND
HEX 5/16
FULL
1.00-4.50
1000
156W-IS
SD HEX TOP GRIP C4 12-14 X 42 IRONSTONE
HEX 5/16
FULL
1.00-4.50
1000
156W-JA
SD HEX TOP GRIP C4 12-14 X 42 JASPER
HEX 5/16
FULL
1.00-4.50
1000
156W-LO
SD HEX TOP GRIP C4 12-14 X 42 LOFT
HEX 5/16
FULL
1.00-4.50
1000
156W-MA
SD HEX TOP GRIP C4 12-14 X 42 MANGROVE
HEX 5/16
FULL
1.00-4.50
1000
156W-MO
SD HEX TOP GRIP C4 12-14 X 42 MONUMENT
HEX 5/16
FULL
1.00-4.50
1000
156W-MR
SD HEX TOP GRIP C4 12-14 X 42 MANOR RED
HEX 5/16
FULL
1.00-4.50
1000
156W-NS
SD HEX TOP GRIP C4 12-14 X 42 NIGHT SKY
HEX 5/16
FULL
1.00-4.50
1000
156W-PA
SD HEX TOP GRIP C4 12-14 X 42 PAPERBARK
HEX 5/16
FULL
1.00-4.50
1000
156W-PE
SD HEX TOP GRIP C4 12-14 X 42 PALE EUCALYPT
HEX 5/16
FULL
1.00-4.50
1000
156W-SA
SD HEX TOP GRIP C4 12-14 X 42 SANDBANK
HEX 5/16
FULL
1.00-4.50
1000
156W-SG
SD HEX TOP GRIP C4 12-14 X 42 SHALE GREY
HEX 5/16
FULL
1.00-4.50
1000
156W-SM
SD HEX TOP GRIP C4 12-14 X 42 SURF MIST
HEX 5/16
FULL
1.00-4.50
1000
156W-SO
SD HEX TOP GRIP C4 12-14 X 42 SOUTHERLY
HEX 5/16
FULL
1.00-4.50
1000
156W-TE
SD HEX TOP GRIP C4 12-14 X 42 TERRAIN
HEX 5/16
FULL
1.00-4.50
1000
156W-WA
SD HEX TOP GRIP C4 12-14 X 42 WALLABY
HEX 5/16
FULL
1.00-4.50
1000
156W-WG
SD HEX TOP GRIP C4 12-14 X 42 WOODLAND GREY
HEX 5/16
FULL
1.00-4.50
1000
156W-WI
SD HEX TOP GRIP C4 12-14 X 42 WILDERNESS
HEX 5/16
FULL
1.00-4.50
1000
156W-WO
SD HEX TOP GRIP C4 12-14 X 42 WOLLEMI
HEX 5/16
FULL
1.00-4.50
1000
156W-WS
SD HEX TOP GRIP C4 12-14 X 42 WINDSPRAY
HEX 5/16
FULL
1.00-4.50
1000
158W-BA
SD HEX TOP GRIP C4 12-14 X 53 BASALT
HEX 5/16
FULL
1.00-4.50
1000
158W-BG
SD HEX TOP GRIP C4 12-14 X 53 BLUEGUM
HEX 5/16
FULL
1.00-4.50
1000
158W-BU
SD HEX TOP GRIP C4 12-14 X 53 BUSHLAND
HEX 5/16
FULL
1.00-4.50
1000
158W-CC
SD HEX TOP GRIP C4 12-14 X 53 CLASSIC CREAM
HEX 5/16
FULL
1.00-4.50
1000
158W-CG
SD HEX TOP GRIP C4 12-14 X 53 COTTAGE GREEN
HEX 5/16
FULL
1.00-4.50
1000
158W-CO
SD HEX TOP GRIP C4 12-14 X 53 COVE
HEX 5/16
FULL
1.00-4.50
1000
158W-DO
SD HEX TOP GRIP C4 12-14 X 53 DEEP OCEAN
HEX 5/16
FULL
1.00-4.50
1000
158W-DU
SD HEX TOP GRIP C4 12-14 X 53 DUNE
HEX 5/16
FULL
1.00-4.50
1000
158W-DW
SD HEX TOP GRIP C4 12-14 X 53 DOVER WHITE
HEX 5/16
FULL
1.00-4.50
1000
158W-EH
SD HEX TOP GRIP C4 12-14 X 53 EVENING HAZE
HEX 5/16
FULL
1.00-4.50
1000
158W-GU
SD HEX TOP GRIP C4 12-14 X 53 GULLY
HEX 5/16
FULL
1.00-4.50
1000
158W-HE
SD HEX TOP GRIP C4 12-14 X 53 HEADLAND
HEX 5/16
FULL
1.00-4.50
1000
158W-IS
SD HEX TOP GRIP C4 12-14 X 53 IRONSTONE
HEX 5/16
FULL
1.00-4.50
1000
158W-JA
SD HEX TOP GRIP C4 12-14 X 53 JASPER
HEX 5/16
FULL
1.00-4.50
1000
158W-LO
SD HEX TOP GRIP C4 12-14 X 53 LOFT
HEX 5/16
FULL
1.00-4.50
1000
158W-MA
SD HEX TOP GRIP C4 12-14 X 53 MANGROVE
HEX 5/16
FULL
1.00-4.50
1000
158W-MO
SD HEX TOP GRIP C4 12-14 X 53 MONUMENT
HEX 5/16
FULL
1.00-4.50
1000
158W-MR
SD HEX TOP GRIP C4 12-14 X 53 MANOR RED
HEX 5/16
FULL
1.00-4.50
1000
158W-NS
SD HEX TOP GRIP C4 12-14 X 53 NIGHT SKY
HEX 5/16
FULL
1.00-4.50
1000
158W-PA
SD HEX TOP GRIP C4 12-14 X 53 PAPERBARK
HEX 5/16
FULL
1.00-4.50
1000
158W-PE
SD HEX TOP GRIP C4 12-14 X 53 PALE EUCALYPT
HEX 5/16
FULL
1.00-4.50
1000
158W-SA
SD HEX TOP GRIP C4 12-14 X 53 SANDBANK
HEX 5/16
FULL
1.00-4.50
1000
158W-SG
SD HEX TOP GRIP C4 12-14 X 53 SHALE GREY
HEX 5/16
FULL
1.00-4.50
1000
158W-SM
SD HEX TOP GRIP C4 12-14 X 53 SURF MIST
HEX 5/16
FULL
1.00-4.50
1000
158W-SO
SD HEX TOP GRIP C4 12-14 X 53 SOUTHERLY
HEX 5/16
FULL
1.00-4.50
1000
158W-TE
SD HEX TOP GRIP C4 12-14 X 53 TERRAIN
HEX 5/16
FULL
1.00-4.50
1000
158W-WA
SD HEX TOP GRIP C4 12-14 X 53 WALLABY
HEX 5/16
FULL
1.00-4.50
1000
158W-WG
SD HEX TOP GRIP C4 12-14 X 53 WOODLAND GREY
HEX 5/16
FULL
1.00-4.50
1000
158W-WI
SD HEX TOP GRIP C4 12-14 X 53 WILDERNESS
HEX 5/16
FULL
1.00-4.50
1000
158W-WO
SD HEX TOP GRIP C4 12-14 X 53 WOLLEMI
HEX 5/16
FULL
1.00-4.50
1000
158W-WS
SD HEX TOP GRIP C4 12-14 X 53 WINDSPRAY
HEX 5/16
FULL
1.00-4.50
1000

Features & Applications

Features
• 14 TPI for heavy duty fast and easy installation
• Upper shank protection removes burrs that may damage the EPDM washer, and helps protect the coating on the upper thread
• Self drilling (tek) point for steel up to 4.5mm in thickness
• EPDM sealing washer
• Available in Class 4 galvanised finish, perfect for external applications
• High pull-out loads
• No pre-drilling (please see material thickness for drilling capacities)

Applications
• Ideal for fastening metal roof sheets to metal battens, steel purlins and other steel substrates
