SDS Max - Enduro Y-Cutter (18 - 50mm Sizes)

SDS Max - Enduro Y-Cutter (18 - 50mm Sizes)

Product Summary

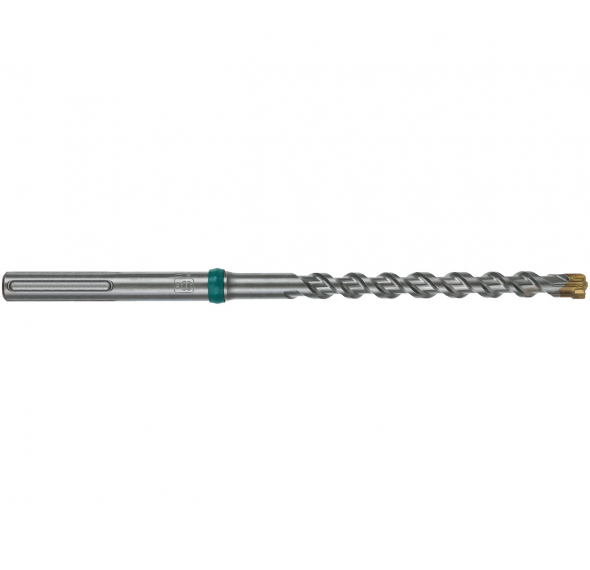

The Y-cutter SDS-plus by Heller is a powerful and robust multi cutter - even in reinforced concrete. The patented Y-cutter technology, in combination with the optimized helix design, offers maximum effectiveness and speed, especially when drilling large diameters. 3-D cutting edge profile in Y-form for exact positioning and perfect starting. Long service life and low probability of breakage even on impact with reinforcements thanks to the highly effective technique of hardening by blasting (HST hardening). High drilling speed thanks to wide Twinmax spiral and customised head geometry. Optimum low-vibration drilling protects the user. If you are after the highest quality SDS-Max drill bits for drilling through concrete, reinforced concrete, asphalt, clinker, marble, brickwork, stone, and granite, the Enduro Y-Cutter by Heller is the best in the business.

Exclusively for ICONX Account Holders. Apply Today.

Browse the ICCONS Dealer Network to find one near you.

See Product List Available in 35 variations
  • Product List
  • Features & Applications

Specifications

Part No
Description
Diameter
Working Length
Total Length
Quantity
UoM
Price
HMAX18-340
SDSMAX Y-CUTTER RANGE 18 X 340MM (22363 8)
18
200
340
each
HMAX18-540
SDSMAX Y-CUTTER RANGE 18 X 540MM (22364 5)
18
400
540
each
HMAX20-320
SDSMAX Y-CUTTER RANGE 20 X 320MM (22365 2)
20
200
320
each
HMAX20-520
SDSMAX Y-CUTTER RANGE 20 X 520MM (22366 9)
20
400
520
each
HMAX20-720
SDSMAX Y-CUTTER RANGE 20 X 720MM (28194 2)
20
600
720
each
HMAX20-920
SDSMAX Y-CUTTER RANGE 20 X 920MM (22367 6)
20
800
920
each
HMAX22-320
SDSMAX Y-CUTTER RANGE 22 X 320MM (22368 3)
22
200
320
each
HMAX22-520
SDSMAX Y-CUTTER RANGE 22 X 520MM (22369 0)
22
400
520
each
HMAX24-320
SDSMAX Y-CUTTER RANGE 24 X 320MM (22371 3)
24
200
320
each
HMAX24-520
SDSMAX Y-CUTTER RANGE 24 X 520MM (22372 0)
24
400
520
each
HMAX25-1320
SDSMAX Y-CUTTER RANGE 25 X 1320MM
25
1200
1320
each
HMAX25-520
SDSMAX Y-CUTTER RANGE 25 X 520MM (22374 4)
25
400
520
each
HMAX25-920
SDSMAX Y-CUTTER RANGE 25 X 920MM (22375 1)
25
800
920
each
HMAX26-340
SDSMAX Y-CUTTER RANGE 26 X 340MM (23113 8)
26
200
320
each
HMAX26-520
SDSMAX Y-CUTTER RANGE 26 X 520MM (23114 5)
26
400
520
each
HMAX28-340
SDSMAX Y-CUTTER RANGE 28 X 340MM (22377 5)
28
200
320
each
HMAX28-520
SDSMAX Y-CUTTER RANGE 28 X 520MM (22378 2)
28
400
520
each
HMAX30-320
SDSMAX Y-CUTTER RANGE 30 X 320MM (22380 5)
30
200
320
each
HMAX30-520
SDSMAX Y-CUTTER RANGE 30 X 520MM (22381 2)
30
400
520
each
HMAX32-320
SDSMAX Y-CUTTER RANGE 32 X 320MM (22382 9)
32
200
320
each
HMAX32-520
SDSMAX Y-CUTTER RANGE 32 X 520MM (22383 6)
32
400
520
each
HMAX32-720
SDSMAX Y-CUTTER RANGE 32 X 720MM (28199 7)
32
600
720
each
HMAX35-320
SDSMAX Y-CUTTER RANGE 35 X 320MM (22386 7)
35
200
320
each
HMAX35-520
SDSMAX Y-CUTTER RANGE 35 X 520MM (22387 4)
35
400
520
each
HMAX35-720
SDSMAX Y-CUTTER RANGE 35 X 720MM (22388 1)
35
600
720
each
HMAX38-320
SDSMAX Y-CUTTER RANGE 38 X 320MM (22389 8)
38
200
320
each
HMAX38-520
SDSMAX Y-CUTTER RANGE 38 X 520MM (22390 4)
38
400
520
each
HMAX38-720
SDSMAX Y-CUTTER RANGE 38 X 720MM (28200 0)
38
600
720
each
HMAX40-1320
SDSMAX Y-CUTTER RANGE 40 X 1320MM (22394 2)
40
1200
1320
each
HMAX40-370
SDSMAX Y-CUTTER RANGE 40 X 320MM (22391 1)
40
200
320
each
HMAX40-520
SDSMAX Y-CUTTER RANGE 40 X 520MM (22392 8)
40
400
520
each
HMAX40-720
SDSMAX Y-CUTTER RANGE 40 X 720MM (28201 7)
40
600
720
each
HMAX40-920
SDSMAX Y-CUTTER RANGE 40 X 920MM (22393 5)
40
800
920
each
HMAX45-520
SDSMAX Y-CUTTER RANGE 45 X 520MM (23343 9)
45
400
520
each
HMAX50-520
SDSMAX Y-CUTTER RANGE 50 X 520MM (23344 6)
50
400
520
each

Features & Applications

Features
• Y-cutter providing perfect positioning
• Long service life
• High drilling speed
• Low vibration
• Certified by the Prüfgemeinschaft Mauerbohrer (PGM) in accordance with the requirements of the Deutsches Institute für Bautechnik (DIBt)

Applications
• Concrete
• Reinforced Concrete
• Gas concrete/YTONG
• Granite
• Sand and lime stone
• Clinker
• Aerated concrete
• Marble
• Brickwork
• Stone
