Thunderbolt Pro - Eyebolt

Product Summary

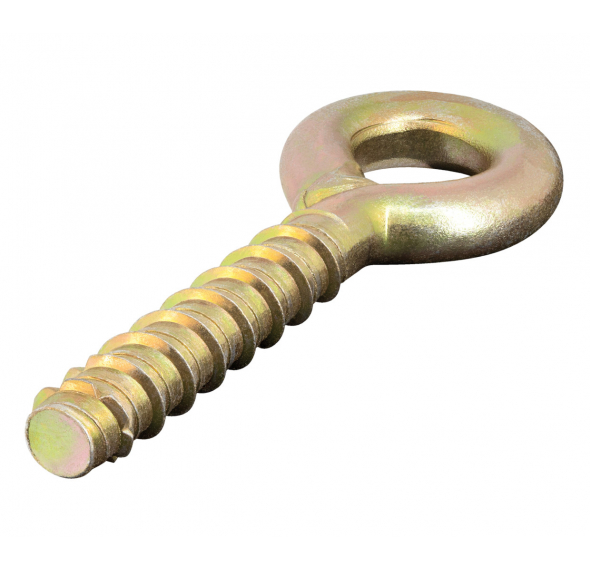

ICCONS Thunderbolt Pro Eyebolt is a high tensile self-tapping concrete and masonry anchor for use in a whole range of base materials such as concrete, block, brick, marble, and stone, just to name a few.

The Thunderbolt Pro is particularly suitable for close-to-edge applications as the cutting thread does not expand or put pressure on the surrounding substrate.

Installation is quick and easy, simply drill, clean the hole and screw in the anchor with our specially designed setting tool, making the Thunderbolt Pro® Eyebolt an ideal general purpose anchor, even on temporary jobs as it’s completely removable.

*Galvanised finish available on request only, lead times may apply.

Dealer Login

Exclusively for ICONX Account Holders. Apply Today.

Find a dealer

Browse the ICCONS Dealer Network to find one near you.

See Product List Available in 4 variations
Show Related Products
Back
  • Product List
  • Features & Applications
  • Installation
  • Video

Specifications

Part No / Finish
Description
Drill Diameter
Head Type
Embedment Depth
Eye Hole Diameter
Quantity
UoM
Price

Zinc
Gal
SXEYE08055
SCREWBOLT EYE BOLT 8 X 55MM
8
EYE
55
14
100
SXEYE12075
SCREWBOLT EYE BOLT 12 X 75MM
12
EYE
75
20
100
SXEYE12075G
SCREWBOLT EYE BOLT 12 X 75MM GAL
12
EYE
75
20
100
BI-900 - SCREWBOLT EYE BOLT SETTING TOOL
each

Features & Applications

Features
• Quick install
• Removable
• High tensile self-tapping concrete and masonry anchor

Applications
• Ideal for close-to-edge applications due to minimal expansion force
• Concrete
• Brick
• Block
• Marble
• Stone

Installation

Installation

  • Use the correct diameter drill bit
  • Drill a hole to the required anchor embedment depth, plus at least one anchor diameter deeper
  • DO NOT use a worn drill bit outside tolerance specification
  • Ensure the hole is drilled perpendicular to the concrete, with a maximum deviation up to 5 degrees. Failure to do so may cause anchor breakage
  • Clean dust and other materials from the hole. Use ICCONS Blow Pump for a perfect result
  • Use a torque wrench or an impact driver
  • Ensure correct clearance hole in the fixture
  • Apply pressure against the fixing
  • Rotate to engage the first thread
  • Tighten the anchor until it is firmly seated
  • When using an impact driver DO NOT overtighten! Follow the torque guidance table, failure to comply may result in anchor breakage. Refer to ICCONS TDS for further information

Video

Video

ICCONS Black-Tip Eyebolt is a high tensile self-tapping concrete and masonry anchor for use in a whole range of base materials such as concrete, block, brick, marble, and stone, just to name a few. The Thunderbolt is particularly suitable for close-to-edge applications as the cutting thread does not expand or put pressure on the surrounding substrate. Installation is quick and easy, simply drill, clean the hole and screw in the anchor, making the Black-Tip Thunderbolt® Eyebolt an ideal general purpose anchor, even on temporary jobs as it’s completely removable.

ICCONS Black-Tip Eyebolt is a high tensile self-tapping concrete and masonry anchor for use in a whole range of base materials such as concrete, block, brick, marble, and stone, just to name a few. The Thunderbolt is particularly suitable for close-to-edge applications as the cutting thread does not expand or put pressure on the surrounding substrate. Installation is quick and easy, simply drill, clean the hole and screw in the anchor, making the Black-Tip Thunderbolt® Eyebolt an ideal general purpose anchor, even on temporary jobs as it’s completely removable.
