Painted - Trade Pack - Self Drilling Hex with Sealing Washer - Coarse Thread

Painted - Trade Pack - Self Drilling Hex with Sealing Washer - Coarse Thread

Product Summary

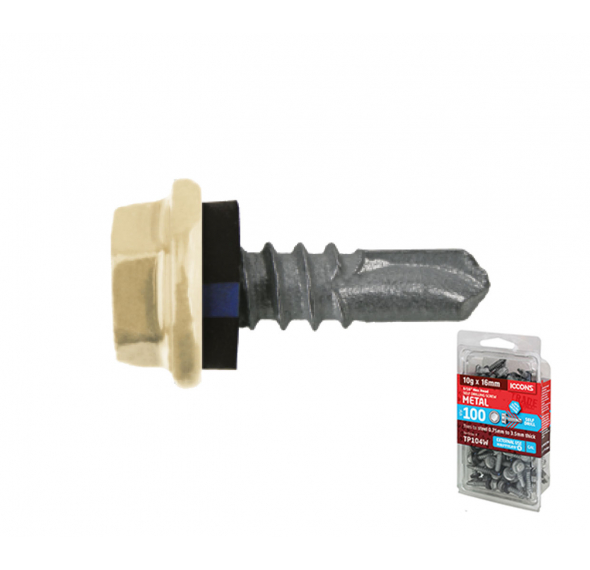

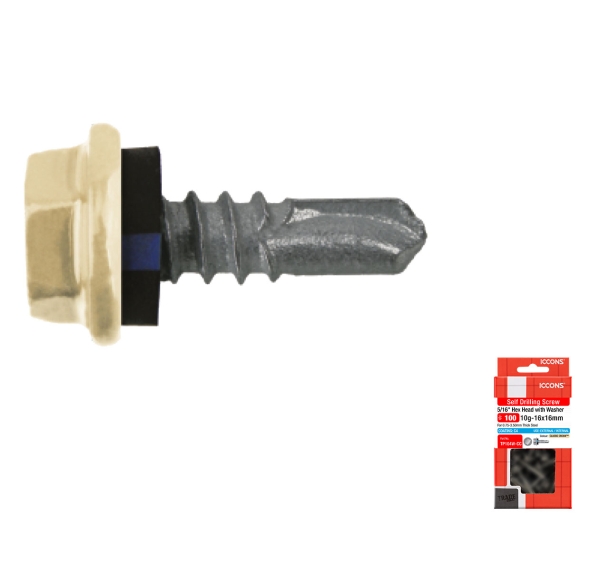

Self-drilling hex head screw with EPDM sealing washer for fastening through mild steel in metal brackets, components, steel sections and assemblies where a rubber seal is required. This screw is an all-rounder with countless applications in the steel construction field, however the coarse thread has a slightly faster install than its fine thread counterpart leading it to have fast installation characteristics. The flanged hex head lends to high pull-out strength and available in both zinc and galvanised coating making them perfect for internal and external applications. ICCONS self drilling hex head screw has a hardened steel point (tek point), and coarse thread enabling the screw to drill and tap its own thread, without the need to pre-drill (please see screw self drilling capacities).

Exclusively for ICONX Account Holders. Apply Today.

Browse the ICCONS Dealer Network to find one near you.

See Product List Available in 29 variations
  • Product List
  • Features & Applications
  • Downloads

Specifications

Part No / Finish
Description
Head Type
Thread Length
Material Thickness
Quantity
UoM
Price

Gal
TP104W-BA
SD HEX COARSE WASHERED C4 10-16 X 16 BASALT TRADE PACK OF 100
HEX 5/16
FULL
0.75-3.50
each
TP104W-BG
SD HEX COARSE WASHERED C4 10-16 X 16 BLUEGUM TRADE PACK OF 100
HEX 5/16
FULL
0.75-3.50
each
TP104W-BU
SD HEX COARSE WASHERED C4 10-16 X 16 BUSHLAND TRADE PACK OF 100
HEX 5/16
FULL
0.75-3.50
each
TP104W-CC
SD HEX COARSE WASHERED C4 10-16 X 16 CLASSIC CREAM TRADE PACK OF 100
HEX 5/16
FULL
0.75-3.50
each
TP104W-CG
SD HEX COARSE WASHERED C4 10-16 X 16 COTTAGE GREEN TRADE PACK OF 100
HEX 5/16
FULL
0.75-3.50
each
TP104W-CO
SD HEX COARSE WASHERED C4 10-16 X 16 COVE TRADE PACK OF 100
HEX 5/16
FULL
0.75-3.50
each
TP104W-DO
SD HEX COARSE WASHERED C4 10-16 X 16 DEEP OCEAN TRADE PACK OF 100
HEX 5/16
FULL
0.75-3.50
each
TP104W-DU
SD HEX COARSE WASHERED C4 10-16 X 16 DUNE TRADE PACK OF 100
HEX 5/16
FULL
0.75-3.50
each
TP104W-EH
SD HEX COARSE WASHERED C4 10-16 X 16 EVENING HAZE TRADE PACK OF 100
HEX 5/16
FULL
0.75-3.50
each
TP104W-GU
SD HEX COARSE WASHERED C4 10-16 X 16 GULLY TRADE PACK OF 100
HEX 5/16
FULL
0.75-3.50
each
TP104W-IR
SD HEX COARSE WASHERED C4 10-16 X 16 IRONSTONE TRADE PACK OF 100
HEX 5/16
FULL
0.75-3.50
each
TP104W-JA
SD HEX COARSE WASHERED C4 10-16 X 16 JASPER TRADE PACK OF 100
HEX 5/16
FULL
0.75-3.50
each
TP104W-LO
SD HEX COARSE WASHERED C4 10-16 X 16 LOFT TRADE PACK OF 100
HEX 5/16
FULL
0.75-3.50
each
TP104W-MA
SD HEX COARSE WASHERED C4 10-16 X 16 MANGROVE TRADE PACK OF 100
HEX 5/16
FULL
0.75-3.50
each
TP104W-MO
SD HEX COARSE WASHERED C4 10-16 X 16 MONUMENT TRADE PACK OF 100
HEX 5/16
FULL
0.75-3.50
each
TP104W-MR
SD HEX COARSE WASHERED C4 10-16 X 16 MANOR RED TRADE PACK OF 100
HEX 5/16
FULL
0.75-3.50
each
TP104W-NS
SD HEX COARSE WASHERED C4 10-16 X 16 NIGHT SKY TRADE PACK OF 100
HEX 5/16
FULL
0.75-3.50
each
TP104W-PA
SD HEX COARSE WASHERED C4 10-16 X 16 PAPERBARK TRADE PACK OF 100
HEX 5/16
FULL
0.75-3.50
each
TP104W-PE
SD HEX COARSE WASHERED C4 10-16 X 16 PALE EUCALYPT TRADE PACK OF 100
HEX 5/16
FULL
0.75-3.50
each
TP104W-RS
SD HEX COARSE WASHERED C4 10-16 X 16 RIVERSAND TRADE PACK OF 100
HEX 5/16
FULL
0.75-3.50
each
TP104W-SA
SD HEX COARSE WASHERED C4 10-16 X 16 SANDBANK TRADE PACK OF 100
HEX 5/16
FULL
0.75-3.50
each
TP104W-SG
SD HEX COARSE WASHERED C4 10-16 X 16 SHALE GREY TRADE PACK OF 100
HEX 5/16
FULL
0.75-3.50
each
TP104W-SM
SD HEX COARSE WASHERED C4 10-16 X 16 SURFMIST TRADE PACK OF 100
HEX 5/16
FULL
0.75-3.50
each
TP104W-TE
SD HEX COARSE WASHERED C4 10-16 X 16 TERRAIN TRADE PACK OF 100
HEX 5/16
FULL
0.75-3.50
each
TP104W-WA
SD HEX COARSE WASHERED C4 10-16 X 16 WALLABY TRADE PACK OF 100
HEX 5/16
FULL
0.75-3.50
each
TP104W-WG
SD HEX COARSE WASHERED C4 10-16 X 16 WOODLAND GREY TRADE PACK OF 100
HEX 5/16
FULL
0.75-3.50
each
TP104W-WI
SD HEX COARSE WASHERED C4 10-16 X 16 WILDERNESS TRADE PACK OF 100
HEX 5/16
FULL
0.75-3.50
each
TP104W-WO
SD HEX COARSE WASHERED C4 10-16 X 16 WOLLEMI TRADE PACK OF 100
HEX 5/16
FULL
0.75-3.50
each
TP104W-WS
SD HEX COARSE WASHERED C4 10-16 X 16 WINDSPRAY TRADE PACK OF 100
HEX 5/16
FULL
0.75-3.50
each

Features & Applications

Features
• EPDM sealing washer
• Fast and easy installation
• Coarse thread for fast install
• Available in class 4 galvanisation, perfect for internal or external applications
• High pull-out loads
• No pre-drilling (please see material thickness for drilling capacities)

Applications
• Ideal for fastening steel brackets, metal components, steel sections and assemblies where a rubber seal is required
• Perfect for countless applications in the steel construction field
