Product Summary

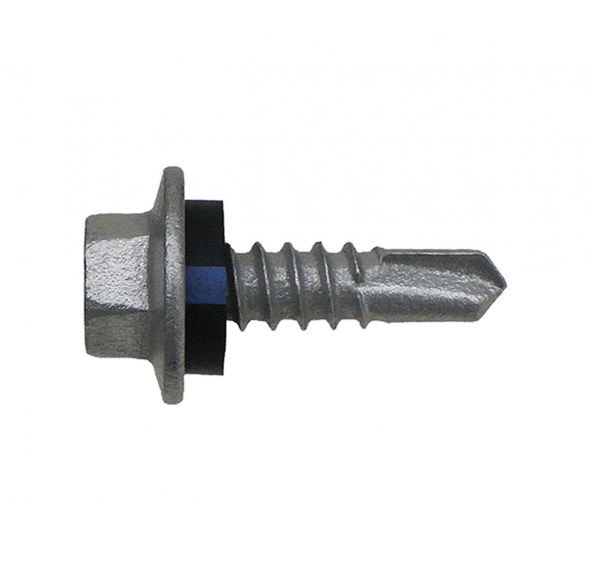

Self-drilling hex head screw with EPDM sealing washer for fastening through mild steel in metal brackets, components, steel sections and assemblies where a rubber seal is required. This screw is an all-rounder with countless applications in the steel construction field, however the coarse thread has a slightly faster install than its fine thread counterpart leading it to have fast installation characteristics. The flanged hex head lends to high pull-out strength and available in both zinc and galvanised coating making them perfect for internal and external applications. ICCONS self drilling hex head screw has a hardened steel point (tek point), and coarse thread enabling the screw to drill and tap its own thread, without the need to pre-drill (please see screw self drilling capacities).

Exclusively for ICONX Account Holders. Apply Today.

Browse the ICCONS Dealer Network to find one near you.

See Product List Available in 30 variations
  • Product List
  • Features & Applications
  • Project Profiles
  • Downloads

Specifications

Part No / Finish
Description
Head Type
Thread Length
Material Thickness
Quantity
UoM
Price

Gal
SS
438W-SM
SD HEX COARSE WASHERED C4 14-14 X 135 SURF MIST
HEX 3/8
70
1.00 - 5.00
1000
SDHXC0812C4W
100W - SD HEX COARSE WASHERED C4 8-18 X 12
HEX 1/4
FULL
0.75 - 2.50
1000
SDHXC1016C4W
104W - SD HEX COARSE WASHERED C4 10-16 X 16
HEX 5/16
FULL
0.75 - 3.50
1000
SDHXC1016SSW
350W - SD HEX COARSE WASHERED 304SS 10-16 X 16
HEX 5/16
FULL
2.00 - 4.00
1000
SDHXC1025C4W
106W - SD HEX COARSE WASHERED C4 10-16 X 25
HEX 5/16
FULL
0.75 - 3.50
1000
SDHXC1220C4W
110W - SD HEX COARSE WASHERED C4 12-14 X 20
HEX 5/16
FULL
1.00 - 4.50
1000
SDHXC1220SSW
354W - SD HEX COARSE WASHERED 304SS 12-14 X 20
HEX 5/16
FULL
3.00 - 6.00
1000
SDHXC1225C4W
109W - SD HEX COARSE WASHERED C4 12-14 X 25
HEX 5/16
FULL
1.00 - 4.50
1000
SDHXC1230C3W
142W - SD HEX COARSE WASHERED C3 12-14 X 30
HEX 5/16
FULL
1.00 - 4.50
1000
SDHXC1230C4W
111W - SD HEX COARSE WASHERED C4 12-14 X 30
HEX 5/16
FULL
1.00 - 4.50
1000
SDHXC1235C4W
112W - SD HEX COARSE WASHERED C4 12-14 X 35
HEX 5/16
FULL
1.00 - 4.50
1000
SDHXC1245C4W
114W - SD HEX COARSE WASHERED C4 12-14 X 45
HEX 5/16
FULL
1.00 - 4.50
1000
SDHXC1255C4W
116W - SD HEX COARSE WASHERED C4 12-14 X 55
HEX 5/16
42
1.00 - 4.50
1000
SDHXC1265C4W
118W - SD HEX COARSE WASHERED C4 12-14 X 65
HEX 5/16
50
1.00 - 4.50
1000
SDHXC1275C4W
120W - SD HEX COARSE WASHERED C4 12-14 X 75
HEX 5/16
50
1.00 - 4.50
1000
SDHXC14025C4W
124W - SD HEX COARSE WASHERED C4 14-10 X 25
HEX 3/8
FULL
1.00 - 5.00
1000
SDHXC14025SSW
360W - SD HEX COARSE WASHERED 304SS 14-14 X 25
HEX 3/8
FULL
1.50 - 6.00
1000
SDHXC14042C4W
126W - SD HEX COARSE WASHERED C4 14-10 X 42
HEX 3/8
FULL
1.00 - 5.00
1000
SDHXC14050C4W
128W - SD HEX COARSE WASHERED C4 14-10 X 50
HEX 3/8
FULL
1.00 - 5.00
1000
SDHXC14050SSW
362W - SD HEX COARSE WASHER 304SS 14-14 X 50
HEX 3/8
FULL
1.50 - 6.00
1000
SDHXC14065C4W
130W - SD HEX COARSE WASHERED C4 14-10 X 65
HEX 3/8
35
1.00 - 5.00
1000
SDHXC14075C4W
132W - SD HEX COARSE WASHERED C4 14-10 X 75
HEX 3/8
35
1.00 - 5.00
1000
SDHXC14075SSW
364W - SD HEX COARSE WASHERED 304SS 14-14 X 75
HEX 3/8
62
1.50 - 6.00
1000
SDHXC14095C4W
134W - SD HEX COARSE WASHERED C4 14-10 X 95
HEX 3/8
50
1.00 - 5.00
1000
SDHXC14115C4W
436W - SD HEX COARSE WASHERED C4 14-14 X 115
HEX 3/8
70
1.00 - 5.00
1000
SDHXC14125C4W
437W - SD HEX COARSE WASHERED C4 14-14 X 125
HEX 3/8
70
1.00 - 5.00
1000
SDHXC14135C4W
438W - SD HEX COARSE WASHERD C4 14-14 X 135
HEX 3/8
70
1.00 - 5.00
1000
SDHXC14150C4W
440W - SD HEX COARSE WASHERD C4 14-14 X 150
HEX 3/8
70
1.00 - 5.00
1000
SDHXC14175C4W
442W - SD HEX COARSE WASHERD C4 14-14 X 175
HEX 3/8
70
1.00 - 5.00
1000
SDHXC14205C4W
444W - SD HEX COARSE WASHERED C4 14-14 X 205
HEX 3/8
70
1.00 - 5.00
1000

Features & Applications

Features
• EPDM sealing washer
• Fast and easy installation
• Coarse thread for fast install
• Available in class 4 galvanisation, perfect for internal or external applications
• High pull-out loads
• No pre-drilling (please see material thickness for drilling capacities)

Applications
• Ideal for fastening steel brackets, metal components, steel sections and assemblies where a rubber seal is required
• Perfect for countless applications in the steel construction field
