Friulsider X3 Nylon Frame Fixing - Hex Head

New NCC
Friulsider X3 Nylon Frame Fixing - Hex Head

Product Summary

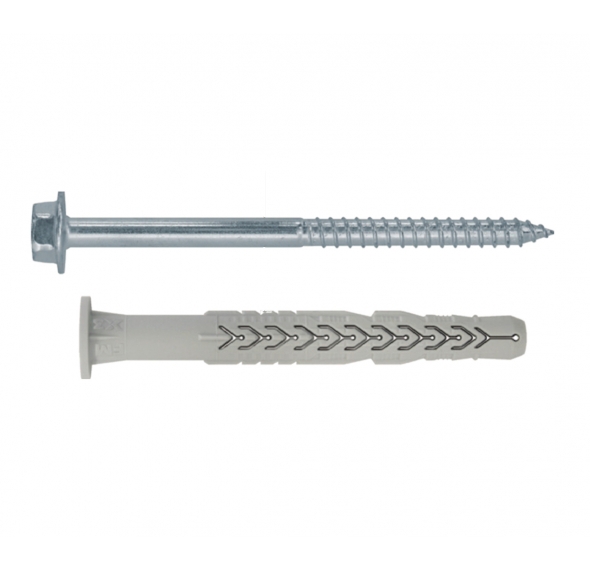

The Friulsider X3 Nylon Frame Fixing is the most versatile nylon anchor of its kind, guaranteeing a perfect installation in almost all hollow or solid base materials. The X3 Nylon Frame Fixing distinguishes itself through its innovative anti-rotation wings and multi-expansion design that creates undercuts with various shapes and diameters: the plug occupies all empty spaces, while the tip has a differentiated expansion, increasing pull-out resistance and safety. Available in a Hex Head for quick and simple application.

Dealer Login

Exclusively for ICONX Account Holders. Apply Today.

Find a dealer

Browse the ICCONS Dealer Network to find one near you.

See Product List Available in 15 variations
Show Related Products
Back
  • Product List
  • Features & Applications
  • Downloads
  • Video

Specifications

Part No / Finish
Description
Drill Diameter
Head Type
Embedment Depth
Max Material Thickness
Thread Width
ETA Approval
Quantity
UoM
Price

Zinc
Gal
SS
FMX3TH10060
10 X 60MM HEX T40 COLLARED X3 F/FIXING (64703b10060)
10
HEX / INT TX40
50
10
7X68
YES
100
FMX3TH10060G
10 X 60MM GAL HEX T40 COLLARED X3 F/FIXING (64703C10060)
10
HEX / INT TX40
50
10
7X68
YES
100
FMX3TH10080
10 X 80MM HEX T40 COLLARED X3 F/FIXING (64703b10080n6)
10
HEX / INT TX40
50
30
7X88
YES
100
FMX3TH10080G
10 X 80MM GAL HEX T40 COLLARED X3 F/FIXING (64703c10080n6)
10
HEX / INT TX40
50
30
7X88
YES
100
FMX3TH10080SS
10 X 80MM SS HEX T40 COLLARED X3 F/FIXING (64703010080n6)
10
HEX / INT TX40
50
30
7X88
YES
100
FMX3TH10100
10 X 100MM HEX T40 COLLARED X3 F/FIXING (64703b10100n6)
10
HEX / INT TX40
50
50
7X108
YES
100
FMX3TH10100G
10 X 100MM GAL HEX T40 COLLARED X3 F/FIXING (64703c10100n6)
10
HEX / INT TX40
50
50
7X108
YES
100
FMX3TH10100SS
10 X 100MM SS HEX T40 COLLARED X3 F/FIXING (64703010100n6)
10
HEX / INT TX40
50
50
7X108
YES
100
FMX3TH10120
10 X 120MM HEX T40 COLLARED X3 F/FIXING (64703b10120n6)
10
HEX / INT TX40
50
70
7X128
YES
100
FMX3TH10120G
10 X 120MM GAL HEX T40 COLLARED X3 F/FIXING (64703c10120n6)
10
HEX / INT TX40
50
70
7X128
YES
100
FMX3TH10120SS
10 X 120MM SS HEX T40 COLLARED X3 F/FIXING (64703010120n6)
10
HEX / INT TX40
50
70
7X128
YES
100
FMX3TH10140
10 X 140MM HEX T40 COLLARED X3 F/FIXING (64703b10140n6)
10
HEX / INT TX40
50
90
7X148
YES
100
FMX3TH10140G
10 X 140MM GAL HEX T40 COLLARED X3 F/FIXING (64703c10140n6)
10
HEX / INT TX40
50
90
7X148
YES
100
FMX3TH10140SS
10 X 140MM SS HEX T40 COLLARED X3 F/FIXING (64703010140n6)
10
HEX / INT TX40
50
90
7X148
YES
100
FMX3TH10160SS
10 X 160MM SS HEX T40 COLLARED X3 F/FIXING (64703010160n6)
10
HEX / INT TX40
50
110
7X168
YES
100

Features & Applications

Features
• Maximum pull-out values meaning extraordinary performance on all base materials
• Up to three embedment depths for extreme versatility and significant reduction in installation time
• Increased expansion designed for facades and heavy carpentry

Applications
• Facades
• Heavy carpentry
