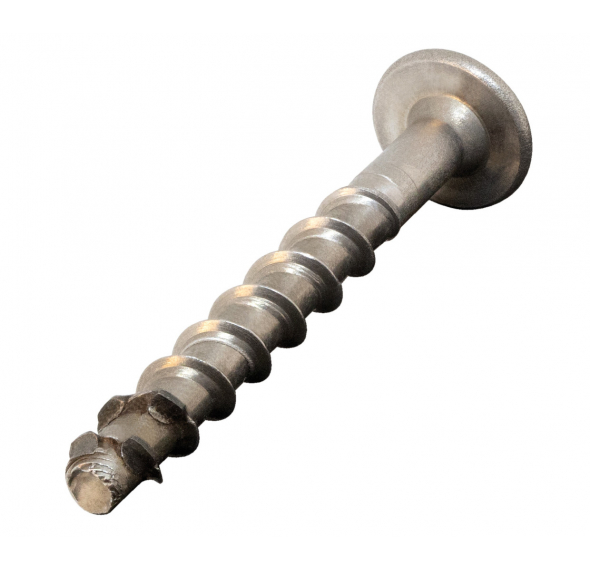

Toge TSM Screw Bolt - Pan Head

Product Summary

Toge Dubel is one of the leading innovative screw manufacturers in the world, specialising in concrete screw anchor technology. Screw anchors give a positive connection that is free of expansion pressure in most base materials lending them great close-to-edge fixing characteristics. Toge screw-bolts have endured the highest level of product assessments that equips them with fire ratings, seismic approvals (C1 - 6mm diameter and C2 - 8mm to 14mm), cracked concrete approvals and Australian Standard Compliance (AS5216:2021 Design of post-installed and cast-in fastenings in concrete).

The Toge TSM range features quick and safe installation, high load capacities in both cracked and non-cracked concrete with undercut load transmission. The TSM can be easily removed and does not leave residue or metal components in the drilled hole that can cause corrosion. Loads can be achieved immediately upon installation. Available in zinc and stainless steel, various head styles and configurations.

Exclusively for ICONX Account Holders. Apply Today.

Browse the ICCONS Dealer Network to find one near you.

See Product List Available in 11 variations
  • Product List
  • Features & Applications
  • Downloads
  • Installation
  • Video

Specifications

Part No / Finish
Description
Drill Diameter
Head Type
Embedment Depth
Max Material Thickness
ETA Approval
Quantity
UoM
Price

Zinc
SS
TSMC06060
TSM CSK 6 X 60 T30 DRIVE (311 006 060)
6
TX30 / VZ30
40
20
Option 1 & RNSS
100
TSMC06080
TSM CSK 6 X 80 T30 DRIVE (311 006 080)
6
TX30 / VZ30
40
40
Option 1 & RNSS
100
TSMC06100
TSM CSK 6 X 100 T30 DRIVE (311 006 100)
6
TX30 / VZ30
40
60
Option 1 & RNSS
100
TSMP06050
TSM PAN 6 X 50 T30 DRIVE (322 006 050)
6
TX30 / VZ30
40
10
Option 1 & RNSS
100
TSMP06050SS
TSM PAN 6 X 50 T30 DRIVE SS (822 006 050)
6
TX30 / VZ30
40
10
Option 1 & RNSS
100
TSMP06060
TSM PAN 6 X 60 T30 DRIVE (322 006 060)
6
TX30 / VZ30
40
20
Option 1 & RNSS
100
TSMP06060SS
TSM PAN 6 X 60 T30 DRIVE SS (822 006 060)
6
TX30 / VZ30
40
20
Option 1 & RNSS
100
TSMP06080
TSM PAN 6 X 80 T30 DRIVE (322 006 080)
6
TX30 / VZ30
40
40
Option 1 & RNSS
100
TSMP06080SS
TSM PAN 6 X 80 T30 DRIVE SS (822 006 080)
6
TX30 / VZ30
40
40
Option 1 & RNSS
100
TSMP06100
TSM PAN 6 X 100 T30 DRIVE (322 006 100)
6
TX30 / VZ30
40
60
Option 1 & RNSS
100
TSMP06100SS
TSM PAN 6 X 100 T30 DRIVE SS (822 006 100)
6
TX30 / VZ30
40
60
Option 1 & RNSS
100

Features & Applications

Features
• National Code Compliant (NCC)
• ETA Approved
• Cracked Concrete Approval
• Fire Rated
• CE Certification
• High load performance
• Suitable for overhead applications
• Removable
• Available in Hex, countersunk and pan head variations
• Available in Zinc clear and 316 stainless steel variants
• Ideal for close-to-edge applications due to minimal expansion force

Applications
• Structural fixings in cracked and uncracked concrete
• Tunnel fit out
• Cable tray support systems
• Seismic bracing of MEP systems
• Fastening steel strut channel and support straps for MEP
• Facade structures
• Guard rails
• Bollards and protective barriers
• Machinery and plant equipment
• Stadium and theatre seating
• Acoustic barriers
• balustrades and hand rails
• Scaffolding ties
• Formwork
• Plumbing and fire services
• Steel frame construction
• Timber frame construction
• Glazing, windows and storefronts
• Racking and shelving
• Fixings wood structures in concrete

Downloads

Installation

Installation

  • Use the correct diameter drill bit
  • Drill a hole to the required anchor embedment depth, plus at least one anchor diameter deeper
  • DO NOT use a worn drill bit outside tolerance specification
  • Ensure the hole is drilled perpendicular to the concrete, with a maximum deviation up to 5 degrees. Failure to do so may cause anchor breakage
  • Clean dust and other materials from the hole. Use ICCONS Blow Pump for a perfect result
  • Use a torque wrench or an impact driver
  • Ensure correct clearance hole in the fixture
  • Apply pressure against the fixing
  • Rotate to engage the first thread
  • Tighten the anchor until it is firmly seated
  • When using an impact driver DO NOT overtighten! Follow the torque guidance table, failure to comply may result in anchor breakage. Refer to ICCONS TDS for further information

Video

Video

Toge Dubel is one of the leading innovative screw manufacturers in the world, specialising in concrete screw anchor technology. Screw anchors give a positive connection that is free of expansion pressure in most base materials lending them great close-to-edge fixing characteristics. Available in zinc and stainless steel, various head styles and configurations with fire rating, seismic approval (C1) (only applicable to sizes greater than 6mm diameter) and ETA cracked concrete approval. The Toge TSM range features quick and safe installation, high load capacities in both cracked and non-cracked concrete with undercut load transmission. The TSM can be easily removed and does not leave residue or metal components in the drilled hole that can cause corrosion. Loads can be achieved immediately upon installation.

Toge Dubel is one of the leading innovative screw manufacturers in the world, specialising in concrete screw anchor technology. Screw anchors give a positive connection that is free of expansion pressure in most base materials lending them great close-to-edge fixing characteristics. Available in zinc and stainless steel, various head styles and configurations with fire rating, seismic approval (C1) (only applicable to sizes greater than 6mm diameter) and ETA cracked concrete approval. The Toge TSM range features quick and safe installation, high load capacities in both cracked and non-cracked concrete with undercut load transmission. The TSM can be easily removed and does not leave residue or metal components in the drilled hole that can cause corrosion. Loads can be achieved immediately upon installation.
