Product Summary

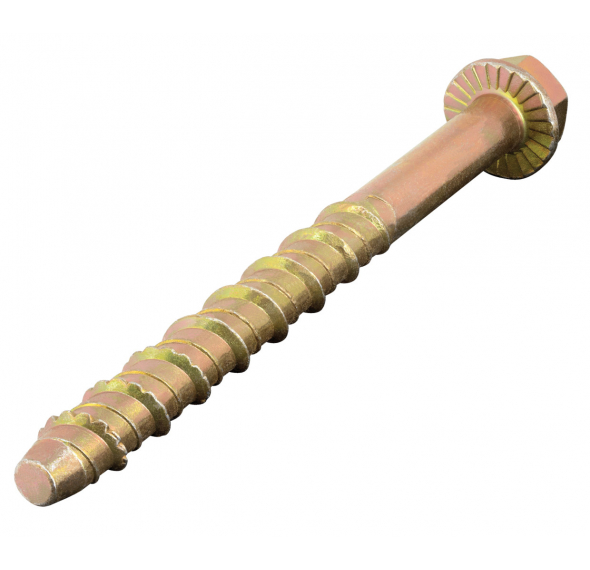

CONCA Hex Head Screw Bolt by ICCONS is the latest screw-in, self-tapping concrete and masonry anchor for use in a wide range of materials used in the construction industry. Installation is quick and easy, simply drill, clean the hole and screw in the anchor. Ranging from 6mm to 16mm in various lengths, CONCA Screw Bolts by ICCONS are the economical solution for non safety-critical applications.

CONCA Screw Bolts by ICCONS acheive high loads while generating low expansion forces which can make it a great alternative to adhesive anchors. Unlike mechanical expansion anchors, the CONCA Screw Bolt keys into the base material for the entire depth and diameter of the hole, not just at the base of the hole. The CONCA Screw Bolt is a truly versatile anchor, as it can be installed in whole range of base materials such as concrete, block, brick, timber, marble, and stone, just to name a few.

For safety-critical applications, please see Thunderbolt PRO, Thunderbolt PRO-XTM and Toge screw bolt ranges.

Exclusively for ICONX Account Holders. Apply Today.

Browse the ICCONS Dealer Network to find one near you.

See Product List Available in 32 variations
  • Product List
  • Features & Applications
  • Downloads

Specifications

Part No / Finish
Description
Drill Diameter
Head Type
Embedment Depth
Max Material Thickness
Head Width
Quantity
UoM
Price

Zinc
Gal
ESB06030
6 X 30MM HEX CONCA ECONOMY SCREWBOLT
6
HEX
25
5
10
100
ESB06030G
6 X 30MM HEX GAL CONCA ECONOMY SCREWBOLT
6
HEX
25
5
10
100
ESB06050
6 X 50MM HEX CONCA ECONOMY SCREWBOLT
6
HEX
30
20
10
100
ESB06050G
6 X 50MM HEX GAL CONCA ECONOMY SCREWBOLT
6
HEX
30
20
10
100
ESB06075
6 X 75MM HEX CONCA ECONOMY SCREWBOLT
6
HEX
30
45
10
100
ESB06075G
6 X 75MM HEX GAL CONCA ECONOMY SCREWBOLT
6
HEX
30
45
10
100
ESB06100
6 X 100MM HEX CONCA ECONOMY SCREWBOLT
6
HEX
30
70
10
100
ESB06100G
6 X 100MM HEX GAL CONCA ECONOMY SCREWBOLT
6
HEX
30
70
10
100
ESB08050
8 X 50MM HEX CONCA ECONOMY SCREWBOLT
8
HEX
40
10
13
100
ESB08050G
8 X 50MM HEX GAL CONCA ECONOMY SCREWBOLT
8
HEX
40
10
13
100
ESB08060
8 X 60MM HEX CONCA ECONOMY SCREWBOLT
8
HEX
40
20
13
100
ESB08060G
8 X 60MM HEX GAL CONCA ECONOMY SCREWBOLT
8
HEX
40
20
13
100
ESB08075
8 X 75MM HEX CONCA ECONOMY SCREWBOLT
8
HEX
40
35
13
100
ESB08075G
8 X 75MM HEX GAL CONCA ECONOMY SCREWBOLT
8
HEX
40
35
13
100
ESB08100
8 X 100MM HEX CONCA ECONOMY SCREWBOLT
8
HEX
40
60
13
100
ESB08100G
8 X 100MM HEX GAL CONCA ECONOMY SCREWBOLT
8
HEX
40
60
13
100
ESB10060
10 X 60MM HEX CONCA ECONOMY SCREWBOLT
10
HEX
50
10
17
100
ESB10060G
10 X 60MM HEX GAL CONCA ECONOMY SCREWBOLT
10
HEX
50
10
17
100
ESB10075
10 X 75MM HEX CONCA ECONOMY SCREWBOLT
10
HEX
50
25
17
100
ESB10075G
10 X 75MM HEX GAL CONCA ECONOMY SCREWBOLT
10
HEX
50
25
17
100
ESB10100
10 X 100MM HEX CONCA ECONOMY SCREWBOLT
10
HEX
50
50
17
100
ESB10100G
10 X 100MM HEX GAL CONCA ECONOMY SCREWBOLT
10
HEX
50
50
17
100
ESB12075
12 X 75MM HEX CONCA ECONOMY SCREWBOLT
12
HEX
60
15
19
100
ESB12075G
12 X 75MM HEX GAL CONCA ECONOMY SCREWBOLT
12
HEX
60
15
19
100
ESB12100
12 X 100MM HEX CONCA ECONOMY SCREWBOLT
12
HEX
60
40
19
100
ESB12100G
12 X 100MM HEX GAL CONCA ECONOMY SCREWBOLT
12
HEX
60
40
19
100
ESB12150
12 X 150MM HEX CONCA ECONOMY SCREWBOLT
12
HEX
60
90
19
100
ESB12150G
12 X 150MM HEX GAL CONCA ECONOMY SCREWBOLT
12
HEX
60
90
19
100
ESB16100
16 X 100MM HEX CONCA ECONOMY SCREWBOLT
16
HEX
80
20
24
100
ESB16100G
16 X 100MM HEX GAL CONCA ECONOMY SCREWBOLT
16
HEX
80
20
24
100
ESB16150
16 X 150MM HEX CONCA ECONOMY SCREWBOLT
16
HEX
80
70
24
100
ESB16150G
16 X 150MM HEX GAL CONCA ECONOMY SCREWBOLT
16
HEX
80
70
24
100

Features & Applications

Features
• Heat Treated Carbon Steel body
• Zinc and galvanised options
• Fast installation at reduced torque
• Suitable for installation with impact drivers

Applications
• Non safety-critical applications in uncracked concrete
• Fixing wood structures in concrete
