Product Summary

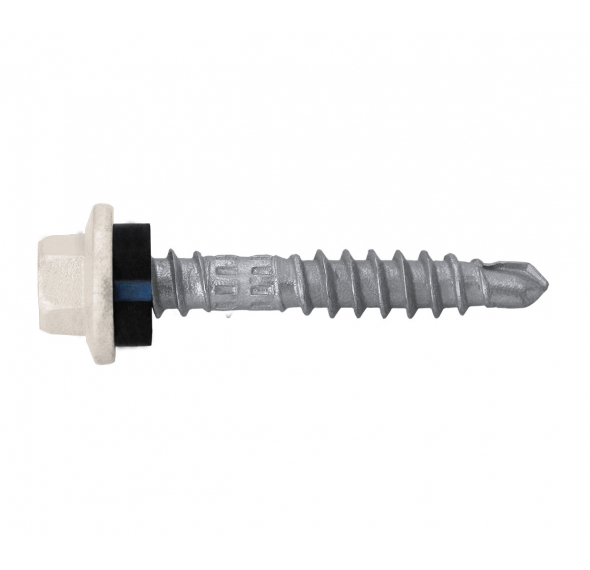

Roof Star Pros are a self-drilling universal point screw with a EPDM sealing washer for fastening corrugated metal roof sheet to thin metal battens and steel purlins, making this screw ideal for corrugated steel roof construction. Universal self drilling point enables the tip to drill through light gauge mild steel. The flanged hex head lends to high pull-out strength and a class 4 galvanised coating results in strong corrosion resistance. Top grip thread ensures a secure hold on sheeting and prevents dimpling. ICCONS Roof Star Pros also come with upper shank protection that creates a clearance hole that protects the EPDM washer, and helps protect the galvanised coating on the upper thread. ICCONS Class 4 galvanised coating leaves little swarf for a quicker clean-up and high corrosion resistance.

Exclusively for ICONX Account Holders. Apply Today.

Browse the ICCONS Dealer Network to find one near you.

See Product List Available in 28 variations
  • Product List
  • Features & Applications
  • Downloads

Specifications

Part No / Finish
Description
Head Type
Thread Length
Material Thickness
Quantity
UoM
Price

Gal
161W-BA
SD HEX METAL/TIMBER WASHERED C4 13-11 X 38 BASALT
HEX 5/16
FULL
0.55-1.90
1000
161W-BG
SD HEX METAL/TIMBER WASHERED C4 13-11 X 38 BLUEGUM
HEX 5/16
FULL
0.55-1.90
1000
161W-CC
SD HEX METAL/TIMBER WASHERED C4 13-11 X 38 CLASSIC CREAM
HEX 5/16
FULL
0.55-1.90
1000
161W-CG
SD HEX METAL/TIMBER WASHERED C4 13-11 X 38 COTTAGE GREEN
HEX 5/16
FULL
0.55-1.90
1000
161W-CO
SD HEX METAL/TIMBER WASHERED C4 13-11 X 38 COVE
HEX 5/16
FULL
0.55-1.90
1000
161W-DO
SD HEX METAL/TIMBER WASHERED C4 13-11 X 38 DEEP OCEAN
HEX 5/16
FULL
0.55-1.90
1000
161W-DU
SD HEX METAL/TIMBER WASHERED C4 13-11 X 38 DUNE
HEX 5/16
FULL
0.55-1.90
1000
161W-DW
SD HEX METAL/TIMBER WASHERED C4 13-11 X 38 DOVER WHITE
HEX 5/16
FULL
0.55-1.90
1000
161W-EH
SD HEX METAL/TIMBER WASHERED C4 13-11 X 38 EVENING HAZE
HEX 5/16
FULL
0.55-1.90
1000
161W-GU
SD HEX METAL/TIMBER WASHERED C4 13-11 X 38 GULLY
HEX 5/16
FULL
0.55-1.90
1000
161W-IS
SD HEX METAL/TIMBER WASHERED C4 13-11 X 38 IRONSTONE
HEX 5/16
FULL
0.55-1.90
1000
161W-JA
SD HEX METAL/TIMBER WASHERED C4 13-11 X 38 JASPER
HEX 5/16
FULL
0.55-1.90
1000
161W-LO
SD HEX METAL/TIMBER WASHERED C4 13-11 X 38 LOFT
HEX 5/16
FULL
0.55-1.90
1000
161W-MA
SD HEX METAL/TIMBER WASHERED C4 13-11 X 38 MANGROVE
HEX 5/16
FULL
0.55-1.90
1000
161W-MO
SD HEX METAL/TIMBER WASHERED C4 13-11 X 38 MONUMENT
HEX 5/16
FULL
0.55-1.90
1000
161W-MR
SD HEX METAL/TIMBER WASHERED C4 13-11 X 38 MANOR RED
HEX 5/16
FULL
0.55-1.90
1000
161W-NS
SD HEX METAL/TIMBER WASHERED C4 13-11 X 38 NIGHT SKY
HEX 5/16
FULL
0.55-1.90
1000
161W-PA
SD HEX METAL/TIMBER WASHERED C4 13-11 X 38 PAPERBARK
HEX 5/16
FULL
0.55-1.90
1000
161W-PE
SD HEX METAL/TIMBER WASHERED C4 13-11 X 38 PALE EUCALYPT
HEX 5/16
FULL
0.55-1.90
1000
161W-SG
SD HEX METAL/TIMBER WASHERED C4 13-11 X 38 SHALE GREY
HEX 5/16
FULL
0.55-1.90
1000
161W-SM
SD HEX METAL/TIMBER WASHERED C4 13-11 X 38 SURF MIST
HEX 5/16
FULL
0.55-1.90
1000
161W-SO
SD HEX METAL/TIMBER WASHERED C4 13-11 X 38 SOUTHERLY
HEX 5/16
FULL
0.55-1.90
1000
161W-TE
SD HEX METAL/TIMBER WASHERED C4 13-11 X 38 TERRAIN
HEX 5/16
FULL
0.55-1.90
1000
161W-WA
SD HEX METAL/TIMBER WASHERED C4 13-11 X 38 WALLABY
HEX 5/16
FULL
0.55-1.90
1000
161W-WG
SD HEX METAL/TIMBER WASHERED C4 13-11 X 38 WOODLAND GREY
HEX 5/16
FULL
0.55-1.90
1000
161W-WI
SD HEX METAL/TIMBER WASHERED C4 13-11 X 38 WILDERNESS
HEX 5/16
FULL
0.55-1.90
1000
161W-WO
SD HEX METAL/TIMBER WASHERED C4 13-11 X 38 WOLLEMI
HEX 5/16
FULL
0.55-1.90
1000
161W-WS
SD HEX METAL/TIMBER WASHERED C4 13-11 X 38 WINDSPRAY
HEX 5/16
FULL
0.55-1.90
1000

Features & Applications

Features
• 11 TPI for fast and easy installation
• Upper shank protection creates clearance hole that protects the EPDM washer, and helps protect the coating on the upper thread
• Universal point for fastening into metal battens
• EPDM sealing washer
• Available in Class 4 galvanised finish perfect for external applications
• High pull-out loads
• No pre-drilling (please see material thickness for drilling capacities)
• 70% Australian made

Applications
• Ideal for fastening corrugated metal roof sheets to metal battensup to 1.9mm
• Perfect for steel roofing construction
