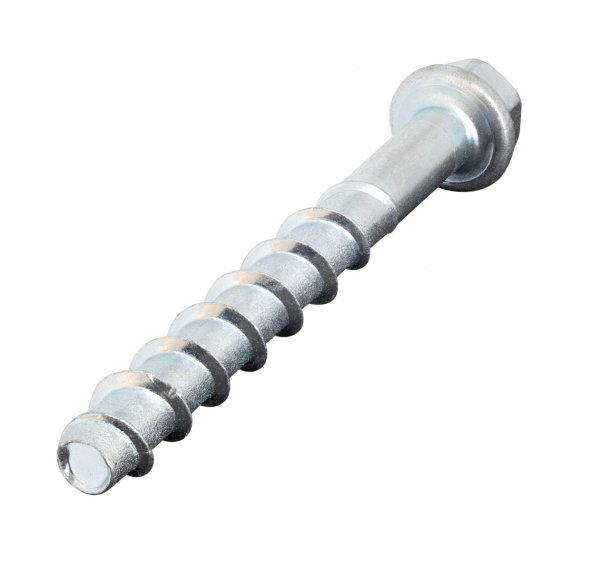

Toge TSM Screw Bolt - Hex Head

Product Summary

Toge Dubel is one of the leading innovative screw manufacturers in the world, specialising in concrete screw anchor technology. Screw anchors give a positive connection that is free of expansion pressure in most base materials lending them great close-to-edge fixing characteristics. Toge screw-bolts have endured the highest level of product assessments that equips them with fire ratings, seismic approval C1 (6mm to 14mm diameter), C2 approval (8mm to 14mm in zinc only), cracked concrete approvals and Australian Standard Compliance (AS5216:2021 Design of post-installed and cast-in fastenings in concrete).

The Toge TSM range features quick and safe installation, high load capacities in both cracked and non-cracked concrete with undercut load transmission. The TSM can be easily removed and does not leave residue or metal components in the drilled hole that can cause corrosion. Loads can be achieved immediately upon installation. Available in zinc and stainless steel, various head styles and configurations

Exclusively for ICONX Account Holders. Apply Today.

Browse the ICCONS Dealer Network to find one near you.

See Product List Available in 25 variations
  • Product List
  • Features & Applications
  • Downloads
  • Installation
  • Video

Specifications

Part No / Finish
Description
Drill Diameter
Head Type
Embedment Depth
Max Material Thickness
Head Width
ETA Approval
Quantity
UoM
Price

Zinc
SS
TSM06043
TSM HEX 6 X 43 SW13 DRIVE - ETA 1 (300 006 043)
6
HEX
40
3
13
Option 1
100
TSM06050
TSM HEX 6 X 50 SW13 DRIVE (300 006 050)
6
HEX
40
10
13
Option 1
100
TSM06050SS
TSM HEX 6 X 50 SW13 DRIVE SS (800 006 050)
6
HEX
40
10
13
Option 1
100
TSM06060
TSM HEX 6 X 60 SW13 DRIVE (300 006 060)
6
HEX
40
20
13
Option 1
100
TSM06060SS
TSM HEX 6 X 60 SW13 DRIVE SS (800 006 060)
6
HEX
40
20
13
Option 1
100
TSM06080
TSM HEX 6 X 80 SW13 DRIVE (300 006 080)
6
HEX
40
40
13
Option 1
100
TSM08050
TSM HEX 8 X 50 SW13 DRIVE (300 008 050)
8
HEX
45
5
13
Option 1
100
TSM08060
TSM HEX 8 X 60 SW13 DRIVE (300 008 060)
8
HEX
45
15
13
Option 1
100
TSM08070
TSM HEX 8 X 70 SW13 DRIVE (300 008 070)
8
HEX
65
5
13
Option 1
100
TSM08070SS
TSM HEX 8 X 70 SW13 DRIVE SS (800 008 070)
8
HEX
65
5
13
Option 1
100
TSM08080
TSM HEX 8 X 80 SW13 DRIVE (300 008 080)
8
HEX
65
15
13
Option 1
100
TSM08080SS
TSM HEX 8 X 80 SW13 DRIVE SS (800 008 080)
8
HEX
65
15
13
Option 1
100
TSM08100
TSM HEX 8 X 100 SW13 DRIVE (300 008 100)
8
HEX
45
55
13
Option 1
100
TSM10060
TSM HEX 10 X 60 SW15 DRIVE (300 010 060)
10
HEX
55
5
15
Option 1
100
TSM10080
TSM HEX 10 X 80 SW15 DRIVE (300 010 080)
10
HEX
55
25
15
Option 1
100
TSM10090
TSM HEX 10 X 90 SW15 DRIVE (300 0100 090)
10
HEX
85
5
15
Option 1
100
TSM10090SS
TSM HEX 10 X 90 SW15 DRIVE SS (800 010 090)
10
HEX
55
35
15
Option 1
100
TSM10100
TSM HEX 10 X 100 SW15 DRIVE (300 010 100)
10
HEX
55
15
15
Option 1
100
TSM10100SS
TSM HEX 10 X 100 SW15 DRIVE SS (800 010 100)
10
HEX
55
45
15
Option 1
100
TSM10120
TSM HEX 10 X 120 SW15 DRIVE (300 010 120)
10
HEX
85
35
15
Option 1
100
TSM10120SS
TSM HEX 10 X 120 SW15 DRIVE SS (800 010 120)
10
HEX
55
65
15
Option 1
100
TSM12080
TSM HEX 12 X 80 SW17 DRIVE (300 012 080)
12
HEX
65
15
17
Option 1
100
TSM12110
TSM HEX 12 X 110 SW17 DRIVE (300 012 110)
12
HEX
100
10
17
Option 1
100
TSM14080
TSM HEX 14 X 80 SW21 DRIVE (300 014 080)
14
HEX
75
5
21
Option 1
100
TSM14150
TSM HEX 14 X 150 SW21 DRIVE (300 014 150)
14
HEX
115
35
21
Option 1
100

Features & Applications

Features
• National Code Compliant (NCC)
• ETA Approved
• Cracked Concrete Approval
• Seismic C1 approval (sizes 6mm-14mm)
• Seismic C2 approval (sizes 8mm-14mm in zinc only)
• Fire Rated
• CE Certification
• High load performance
• Suitable for overhead applications
• Removable
• Available in Hex, countersunk and pan head variations
• Available in Zinc clear and 316 stainless steel variants
• Ideal for close-to-edge applications due to minimal expansion force

Applications
• Structural fixings in cracked and uncracked concrete
• Tunnel fit out
• Cable tray support systems
• Seismic bracing of MEP systems
• Fastening steel strut channel and support straps for MEP
• Facade structures
• Guard rails
• Bollards and protective barriers
• Machinery and plant equipment
• Stadium and theatre seating
• Acoustic barriers
• balustrades and hand rails
• Scaffolding ties
• Formwork
• Plumbing and fire services
• Steel frame construction
• Timber frame construction
• Glazing, windows and storefronts
• Racking and shelving
• Fixings wood structures in concrete

Downloads

Installation

Installation

  • Use the correct diameter drill bit
  • Drill a hole to the required anchor embedment depth, plus at least one anchor diameter deeper
  • DO NOT use a worn drill bit outside tolerance specification
  • Ensure the hole is drilled perpendicular to the concrete, with a maximum deviation up to 5 degrees. Failure to do so may cause anchor breakage
  • Clean dust and other materials from the hole. Use ICCONS Blow Pump for a perfect result
  • Use a torque wrench or an impact driver
  • Ensure correct clearance hole in the fixture
  • Apply pressure against the fixing
  • Rotate to engage the first thread
  • Tighten the anchor until it is firmly seated
  • When using an impact driver DO NOT overtighten! Follow the torque guidance table, failure to comply may result in anchor breakage. Refer to ICCONS TDS for further information
