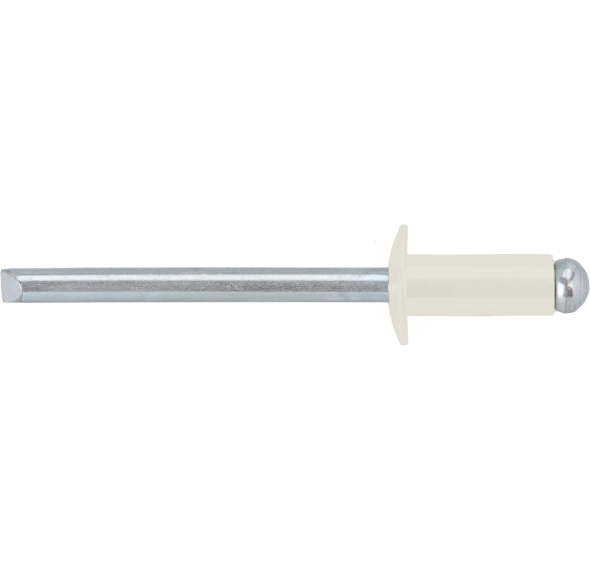

Painted - Aluminium / Steel - Dome Head Rivets

Painted - Aluminium / Steel - Dome Head Rivets

Product Summary

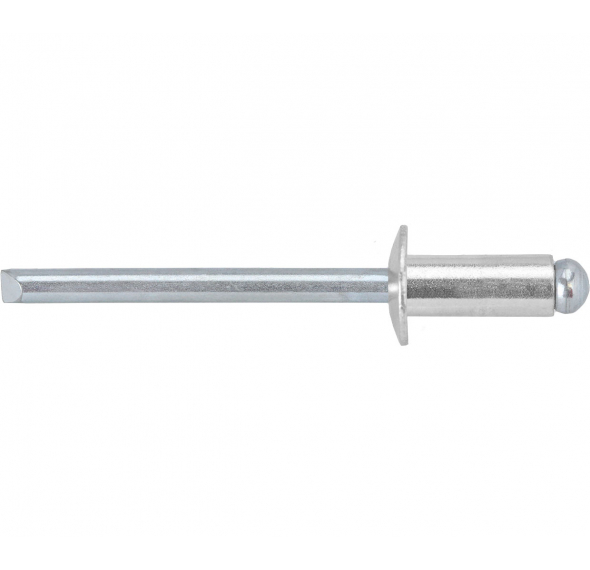

Consisting of high quality, low carbon content, zinc plated steel mandrel and 5050 grade aluminium alloy body, the Scell-it dome head rivet is suitable for applications where a flush finish is required. Suitable for both the Professional Blind Rivet Tool (hand held: RTP-55) as well as the Scell-It 18V Cordless Blind Rivet Tool (power tool: RT-18VE5). The entire Scell-it rivet range is ideal for applications in manufacturing, maintenance, assembly, repair and DIY projects.

Dealer Login

Exclusively for ICONX Account Holders. Apply Today.

Find a dealer

Browse the ICCONS Dealer Network to find one near you.

See Product List Available in 60 variations
Show Related Products
Back
  • Product List
  • Features & Applications
  • Downloads

Specifications

Part No
Description
Finish
Drill Diameter
Body Diameter
Body Length
Grip Range
Shear (N)
Tensile (N)
Quantity
UoM
Price
166W-BA
SD HEX METAL/TIMBER WASHERED C4 13-11 X 25 BASALT
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AS410SM
RIVET DOME ALU-STEEL 4-10 SURFMIST
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
19.7
12.7 - 15.9
530
670
1000
RD-AS43BA
RIVET DOME ALU-STEEL 4-3 BASALT
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AS43CC
RIVET DOME ALU-STEEL 4-3 CLASSIC CREAM
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AS43CG
RIVET DOME ALU-STEEL 4-3 COTTAGE GREEN
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AS43CO
RIVET DOME ALU-STEEL 4-3 COVE
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AS43DO
RIVET DOME ALU-STEEL 4-3 DEEP OCEAN
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AS43DU
RIVET DOME ALU-STEEL 4-3 DUNE
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AS43EH
RIVET DOME ALU-STEEL 4-3 EVENING HAZE
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AS43GU
RIVET DOME ALU-STEEL 4-3 GULLY
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AS43HE
RIVET DOME ALU-STEEL 4-3 HEADLAND
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AS43IS
RIVET DOME ALU-STEEL 4-3 IRONSTONE
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AS43JA
RIVET DOME ALU-STEEL 4-3 JASPER
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AS43MA
RIVET DOME ALU-STEEL 4-3 MANGROVE
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AS43MO
RIVET DOME ALU-STEEL 4-3 MONUMENT
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AS43MR
RIVET DOME ALU-STEEL 4-3 MANOR RED
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AS43NS
RIVET DOME ALU-STEEL 4-3 NIGHT SKY
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AS43PA
RIVET DOME ALU-STEEL 4-3 PAPERBARK
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AS43PE
RIVET DOME ALU-STEEL 4-3 PALE EUCALYPT
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AS43SB
RIVET DOME ALU-STEEL 4-3 STONE BEIGE
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AS43SG
RIVET DOME ALU-STEEL 4-3 SHALE GREY
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AS43SM
RIVET DOME ALU-STEEL 4-3 SURFMIST
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AS43TE
RIVET DOME ALU-STEEL 4-3 TERRAIN
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AS43W
RIVET DOME ALU-STEEL 4-3 WHITE
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AS43WA
RIVET DOME ALU-STEEL 4-3 WALLABY
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AS43WG
RIVET DOME ALU-STEEL 4-3 WOODLAND GREY
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AS43WI
RIVET DOME ALU-STEEL 4-3 WILDERNESS
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AS43WS
RIVET DOME ALU-STEEL 4-3 WINDSPRAY
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.6
3.2 - 4.8
530
670
1000
RD-AS44NS
RIVET DOME ALU-STEEL 4-4 NIGHT SKY
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
10.2
4.8 - 6.4
530
670
1000
RD-AS44SM
RIVET DOME ALU-STEEL 4-4 SURFMIST
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
10.2
4.8 - 6.4
530
670
1000
RD-AS54BA
RIVET DOME ALU-STEEL 5-4 BASALT
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AS54CC
RIVET DOME ALU-STEEL 5-4 CLASSIC CREAM
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AS54CG
RIVET DOME ALU-STEEL 5-4 COTTAGE GREEN
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AS54CO
RIVET DOME ALU-STEEL 5-4 COVE
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AS54DO
RIVET DOME ALU-STEEL 5-4 DEEP OCEAN
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AS54DU
RIVET DOME ALU-STEEL 5-4 DUNE
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AS54EH
RIVET DOME ALU-STEEL 5-4 EVENING HAZE
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AS54GU
RIVET DOME ALU-STEEL 5-4 GULLY
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AS54IS
RIVET DOME ALU-STEEL 5-4 IRONSTONE
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AS54JA
RIVET DOME ALU-STEEL 5-4 JASPER
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AS54MA
RIVET DOME ALU-STEEL 5-4 MANGROVE
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AS54MO
RIVET DOME ALU-STEEL 5-4 MONUMENT
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AS54MR
RIVET DOME ALU-STEEL 5-4 MANOR RED
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AS54NS
RIVET DOME ALU-STEEL 5-4 NIGHT SKY
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AS54PA
RIVET DOME ALU-STEEL 5-4 PAPERBARK
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AS54PE
RIVET DOME ALU-STEEL 5-4 PALE EUCALYPT
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AS54SG
RIVET DOME ALU-STEEL 5-4 SHALE GREY
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AS54SM
RIVET DOME ALU-STEEL 5-4 SURFMIST
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AS54TE
RIVET DOME ALU-STEEL 5-4 TERRAIN
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AS54W
RIVET DOME ALU-STEEL 5-4 WHITE
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AS54WA
RIVET DOME ALU-STEEL 5-4 WALLABY
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AS54WG
RIVET DOME ALU-STEEL 5-4 WOODLAND GREY
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AS54WS
RIVET DOME ALU-STEEL 5-4 WINDSPRAY
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
10.8
4.8 - 6.4
850
1020
1000
RD-AS56CC
RIVET DOME ALU-STEEL 5-6 CLASSIC CREAM
1000
RD-AS56MO
RIVET DOME ALU-STEEL 5-6 MONUMENT
1000
RD-AS56NS
RIVET DOME ALU-STEEL 5-6 NIGHT SKY
1000
RD-AS56PA
RIVET DOME ALU-STEEL 5-6 PAPERBARK
1000
RD-AS56SM
RIVET DOME ALU-STEEL 5-6 SURF MIST
1000
RD-AS56W
RIVET DOME ALU-STEEL 5-6 WHITE
1000
RD-AS56WG
RIVET DOME ALU-STEEL 5-6 WOODLAND GREY
1000

Features & Applications

Features
• 5050 grade aluminium alloy body and low carbon content, zinc plated steel mandrel
• Quick and easy to use
• Suitable for both the Professional Blind Rivet Tool (hand held: RTP-55) as well as the Scell-It 18V Cordless Blind Rivet Tool (power tool: RT-18VE5)
• Designed to have an extended grip range
• Available in COLORBOND colour range

Applications
• Applications where a flush finish is required
