What's New 🔥ICCONS UNI-BOLT™, The Certified Solution for Hollow Section Steel Connections with limited access

08 December 2025
What's New 🔥ICCONS UNI-BOLT™, The Certified Solution for Hollow Section Steel Connections with limited access
On this page

Introducing UNI-BOLT™, the blind fastener for hollow steel connections with limited access.

Traditional ways of connecting hollow section steel, like drilling and tapping, strapping, welding, or through-bolting can be slow and awkward when access is limited, driving up installation time and labour costs.

ICCONS® UNI-BOLT™ makes the job simpler: drill, insert, and tighten. This faster installation method reduces labour costs while still delivering a neat, clean finish. UNI-BOLT™ is also ETA assessed and can be designed to AS 4100 (Steel Structures Standard), giving designers and users confidence in its performance.

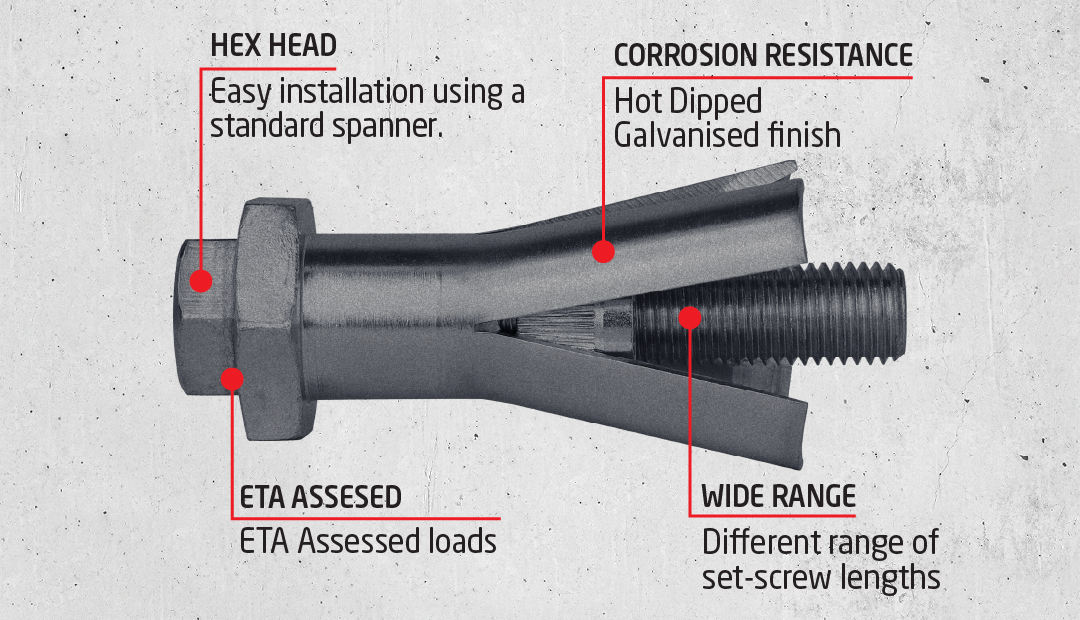

The expanding sleeve provides high-strength connections and allows installation from one side only, which is ideal for tight or restricted-access areas. It installs with just a standard spanner and torque wrench, and works with rectangular, square, and circular hollow sections.


Key Features of UNI-BOLT™

  • ETA Assessed loads
  • Suitable for design in accordance with AS 4100 (Steel Structures Standard)
  • Easy to use
  • Lower labour costs
  • Works with all hollow steel section shapes (square, rectangular, round)
  • Ideal for combined loads
  • Different corrosion resistant options
  • Aesthetic finish
  • Multiple lengths per size to suit various fixing ranges

Applications

  • Two hollow sections at 90 degrees using an end plate
  • Hollow section to I-Beam at 90 degrees using a combination of UNI-BOLT™ and BEAM CLAMP fixings
  • Two hollow sections at 90 degrees using angle brackets
  • Hollow section sleeve style joints for clean external aesthetics
  • Angle to vertical hollow section post
  • Side fixing of handrail base to hollow section
  • Top fixing of handrail base to hollow section
  • Glazing bracket to hollow section
  • Where limited access is available

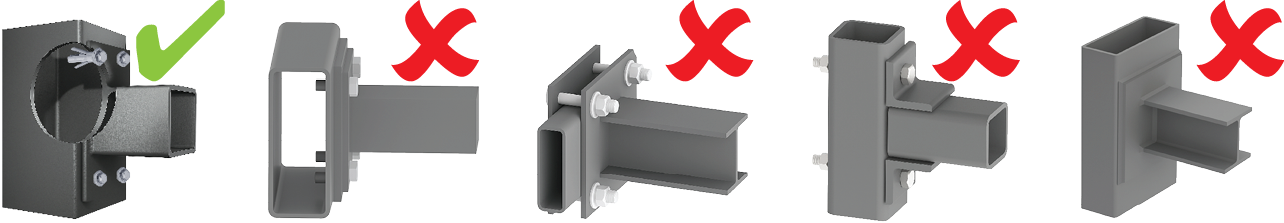

Easy Installation Vs Other Fixings

UNI-BOLT™ DRILLING & TAPPING STRAPPING THRU BOLTING WELDING
    1. Drill clearance holes
    1. Drill pilot holes
    1. Place plate and bolts around one side
    1. Drill clearance holes
    1. Prepare surfaces to weld
    2. Insert UNI-BOLT™
    2. Tap holes
    2. Place plate on other side and align bolts
    2. Drill clearance holes other side
    2. Position welding equipment
    3. Tighten UNI-BOLT™
    3. Connect bolts
    3. Connect nuts and washers
    3. Connect bolts through aligned holes
    3. Perform weld
    4. Tighten bolts to torque
    4. Tighten equally to avoid twisting
    4. Tighten bolts to torque
    4. Leave to cool (under supervision)
    5. Weak connection
    5. Perform proof test on the weld

Takeaways and Benefits of UNI-BOLT™

The ICCONS® UNI-BOLT™ is an ETA-assessed, NCC-compliant blind fastener. It provides engineers, builders, and installers with a fast, compliant, and structurally certified method of connecting hollow steel sections. With multiple finish options and a simple installation process, UNI-BOLT™ is a modern, ideal alternative to welding or traditional bolting in hard-to-reach areas.

UNI-BOLT™ Range Overview

  • UNI-BOLT™ it comes in different lengths, making it suitable for nearly any application.
  • Diameters from M6 to M20
  • Multiple lengths per size (varies by SKU)
  • Hot Dip Galvanised variant offers excellent durability in harsh environments
  • Fixing ranges from 5mm to over 90mm depending on model

Galvanised
Item No.		 Item
Description		 Set Screw
Length (mm)		 Clearance
(mm)		 Fixing Range
(mm)		 Torque
(Nm)		 Inner Box
Qty		 Outer Box
Qty
UNIBH-M08050G UNI-BOLT™ M8 X 50 - ETA 50 14 5-26 25 25 120
UNIBH-M08070G UNI-BOLT™ M8 X 70 - ETA 70 14 26-46 25 20 120
UNIBH-M08090G UNI-BOLT™ M8 X 90 - ETA 90 14 46-66 25 20 120
UNIBH-M10050G UNI-BOLT™ M10 X 50 - ETA 50 18 5-22 45 20 120
UNIBH-M10070G UNI-BOLT™ M10 X 70 - ETA 70 18 22-42 45 20 120
UNIBH-M10090G UNI-BOLT™ M10 X 90 - ETA 9018 42-62 45 20 120
UNIBH-M12055G UNI-BOLT™ M12 X 55 - ETA 55 20 5-25 80 20 80
UNIBH-M12080G UNI-BOLT™ M12 X 80 - ETA 80 20 23-50 80 20 80
UNIBH-M12100G UNI-BOLT™ M12 X 100 - ETA 100 20 48-70 80 20 80
UNIBH-M16075G UNI-BOLT™ M16 X 75 - ETA 75 26 8-35 190 10 60
UNIBH-M16100G UNI-BOLT™ M16 X 100 - ETA 100 26 35-60 190 10 60
UNIBH-M16120G UNI-BOLT™ M16 X 120 - ETA 120 26 60-80 190 10 60
UNIBH-M20100G UNI-BOLT™ M20 X 100 - ETA 100 33 12-43 300 5 30
UNIBH-M20120G UNI-BOLT™ M20 X 120 - ETA 120 33 43-63 300 5 30
UNIBH-M20150G UNI-BOLT™ M20 X 150 - ETA 150 33 63-93 300 5 30

UNI-BOLT™ FAQ

1. What is ICCONS® UNI-BOLT™?
ICCONS® UNI-BOLT™ is an ETA-assessed structural blind fastener for rectangular, square and circular hollow section steel. Its expanding sleeve creates a strong geometric interlock from one side only, making it ideal where access is limited.

2. Where is UNI-BOLT™ used in structural steel?
UNI-BOLT™ is used for hollow section steel connections in building, facades, handrails, glazing, production lines, stadiums, civil infrastructure and solar frameworks – anywhere a fast, certified hollow section connection is required.

3. Is UNI-BOLT™ compliant with Australian standards?
Yes. UNI-BOLT™ is ETA 25/0374 assessed, NCC™ National Code Compliant and suitable for design in accordance with AS 4100 Steel Structures, giving engineers confidence in structural performance and compliance.

4. How does UNI-BOLT™ install compared to welding or thru-bolting?
UNI-BOLT™ installs in three steps – drill a clearance hole, insert the UNI-BOLT™, tighten to the specified torque. Unlike welding, drilling and tapping or strapping, there is no hot work, no tapping and no need for access to both sides of the steel section.

5. What sizes and finishes are available?
The UNI-BOLT™ range covers M6 to M20 in multiple lengths and fixing ranges, in Hot Dip Galvanised finishes for harsh environments. Full size and torque data is listed in the product table and on the ICCONS® product page.

6. What tools do I need to install UNI-BOLT™?
UNI-BOLT™ can be installed with a standard spanner or torque wrench. ICCONS® recommends the ATW40200N 1/2" Industrial Adjustable Torque Wrench (40–200 Nm) for accurate torque on site.

7. Is UNI-BOLT™ available now?
Yes! Available now through authorised ICCONS® distributors.

8. Where to Buy UNI-BOLT™ fasteners in Australia
You can purchase ICCONS® UNI-BOLT™ fasteners through authorised ICCONS® distributors across Australia. Use the ICCONS® online Store Locator to find your nearest distributor.


For more information, contact ICCONS® engineers or explore our comprehensive design tools and technical resources.

Note: ICCONS® has taken extreme care in compiling the above information. ICCONS® may change our products at any time as may our competitors. ICCONS® believe the information is true and correct as of the date of this article.
