What's New 🔥 ICCONS Mini-Stars™, New Self Drilling Mini Cladding Screw
13 November 2025
On this page
Introducing Mini-Stars™, purpose-built SDS for valley fixing mini corrugated cladding.
Installing mini corrugated sheeting can be challenging due to its tight profiles, narrow ribs, and the need for a clean, modern finish. Mini-Stars™ screws are engineered to solve these challenges with precision.
Featuring a washer-free under-head design, Mini-Stars™ deliver a smooth, flush appearance while providing secure valley fixing on mini corrugated profiles.
The universal drill-point design makes them suitable for both steel and timber substrates, ensuring fast, reliable installation across multiple materials. With Category 4 corrosion resistance, these fasteners deliver long-term durability for both interior and exterior environments.

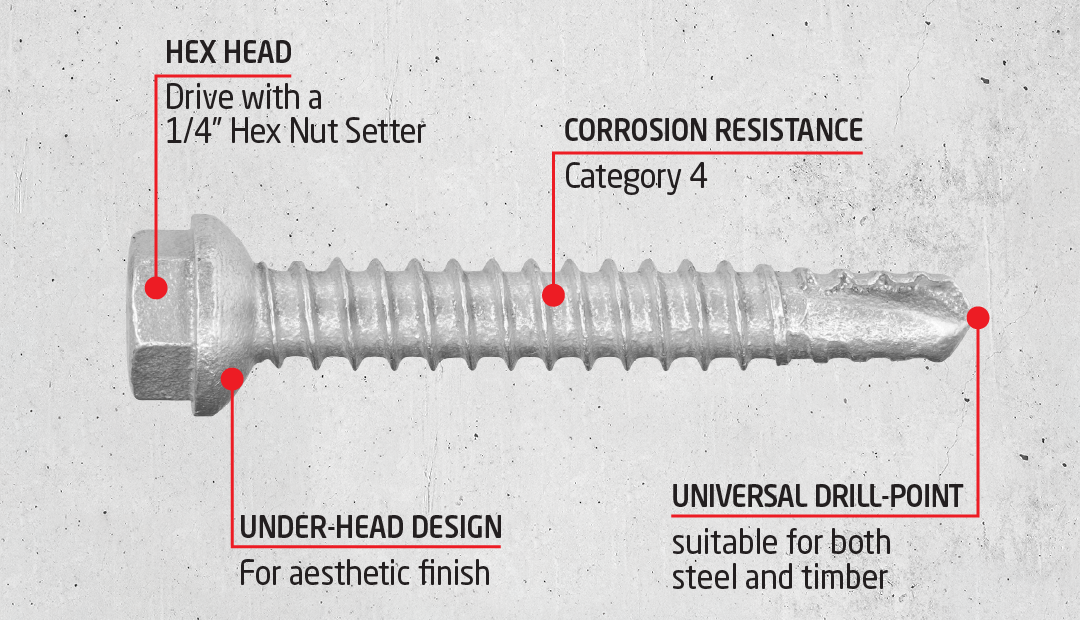

Key Features of Mini-Stars™ SDS Screws
- Universal drill-point suitable for both steel and timber
- Under-head design for aesthetic finish
- No washer required - screw is engineered to sit flush within the valley
- Category 4 corrosion resistance
- Available in plain and painted (standard COLORBOND® colours)
- Drive with a 1/4” Hex Nut Setter
Applications and Uses of Mini-Stars™ SDS Screws
- Suitable for both internal and external wall cladding

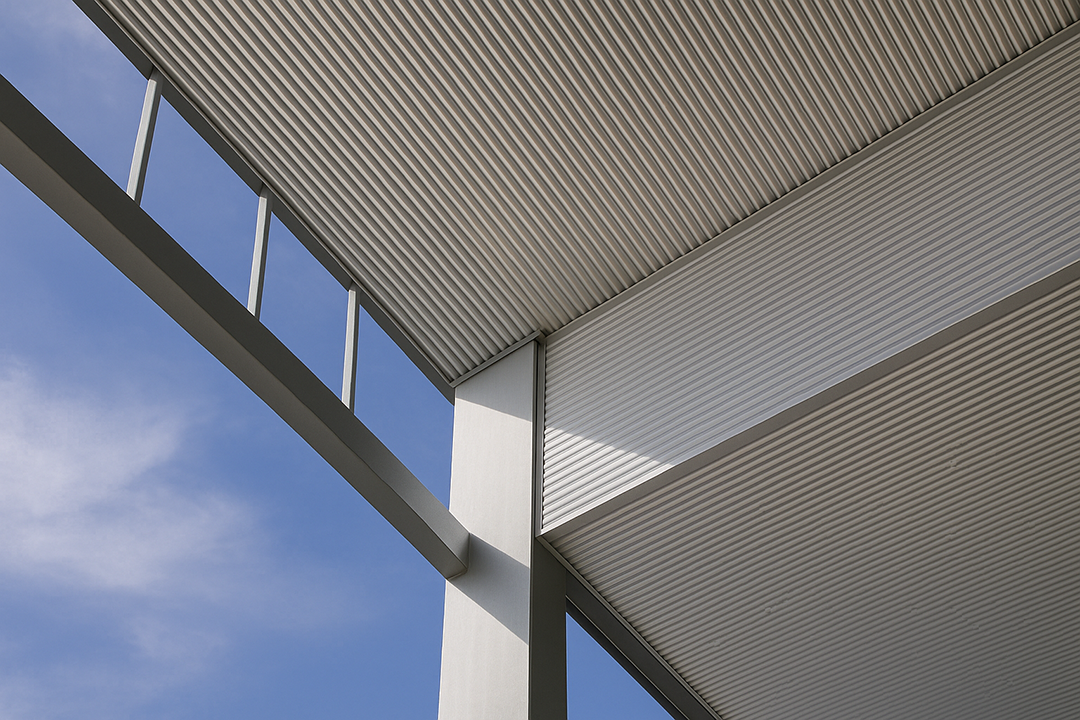

- Architectural cladding applications
- Shed construction

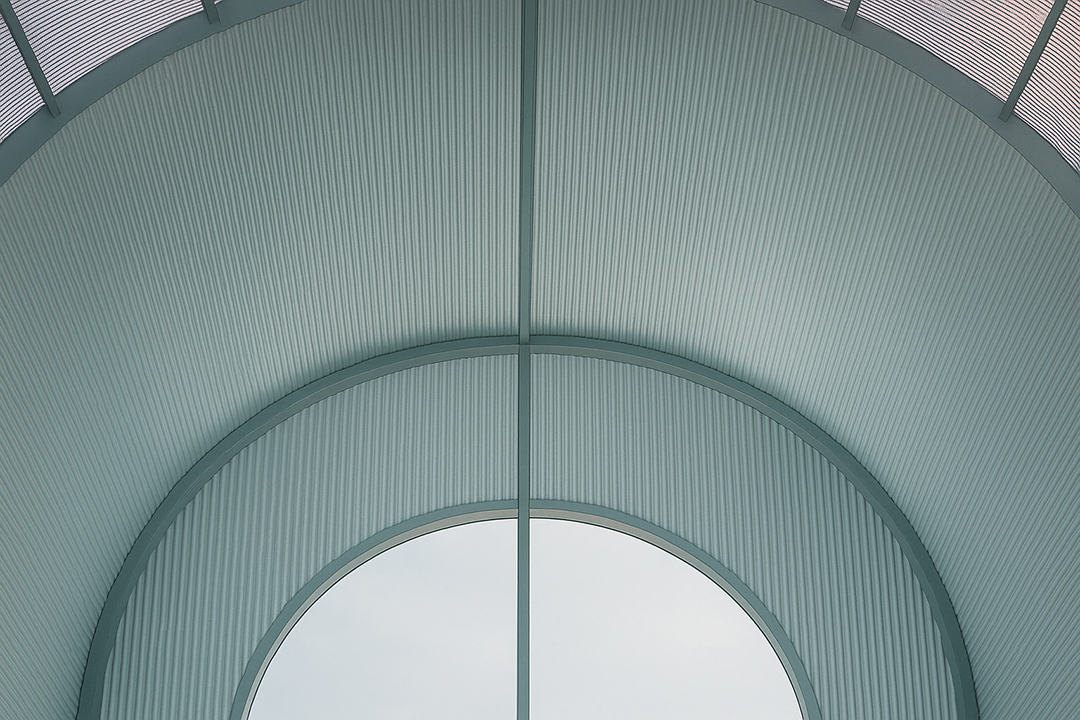

- Façades construction

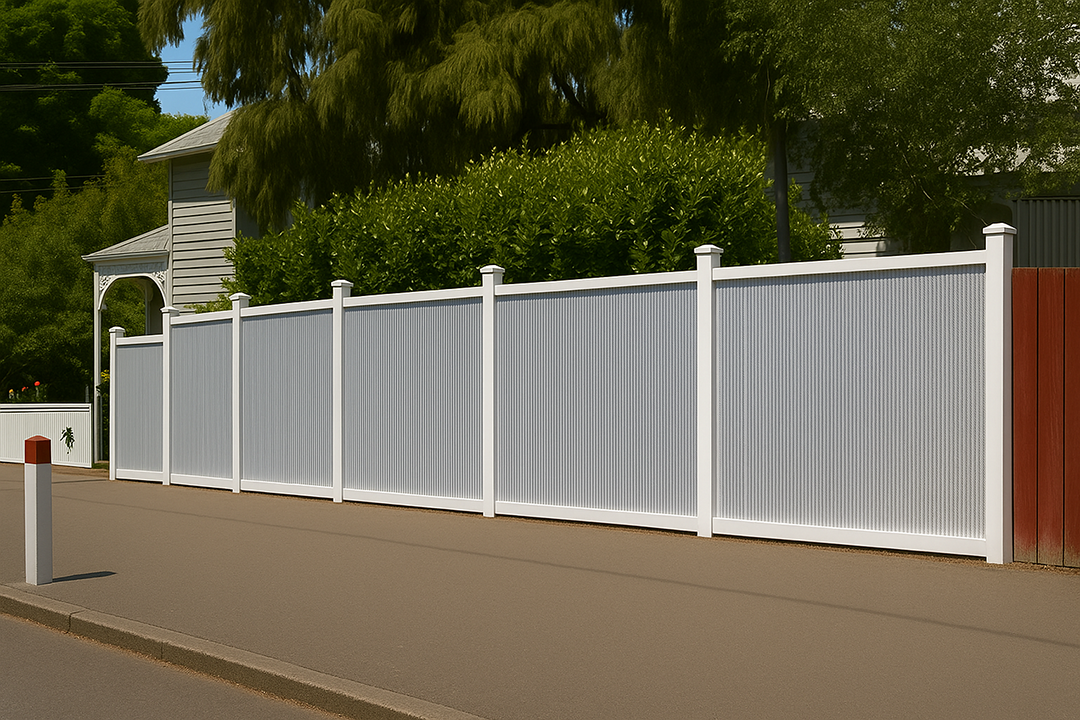

- Fencing projects
- Compatible with mini corrugated sheeting

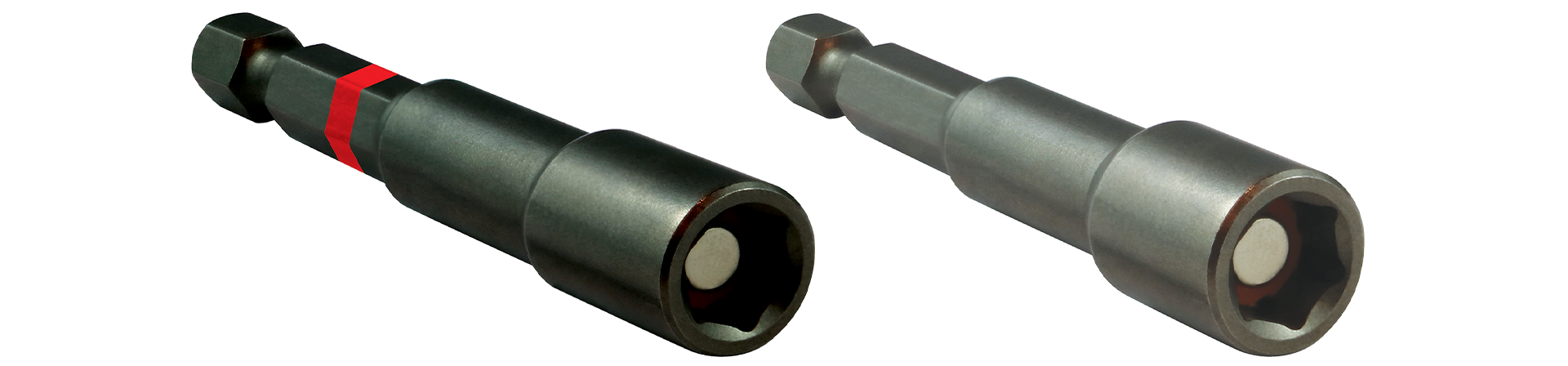

Recommended Tools – What Mini-Stars™ Work With
ICCONS Mini-Stars™ work seamlessly with ICCONS Impact Nut Setters. These durable, precision-built tools deliver smooth, efficient driving every time.
- BTI065NS14 - BI-510 - IMPACT NUT SETTER - 1/4H X 65MM X 1/4"
- BTS065NS14 - BS-510 - STANDARD NUT SETTER - 1/4H X 65MM X 1/4"
Takeaways and Benefits of Mini-Stars™
The Mini-Stars™ range is ideal for a wide variety of corrugated cladding applications, including architectural façade systems, internal and external wall cladding, sheds, fencing, and any project where valley fixing mini-corrugated sheets are specified.

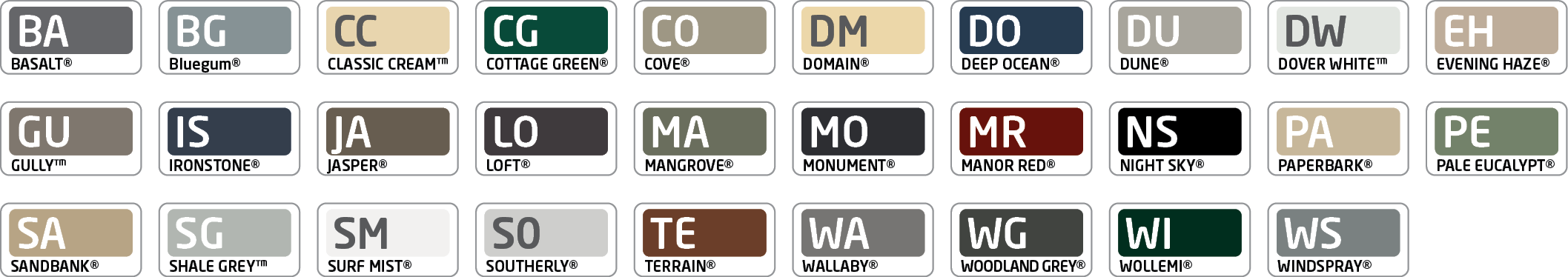

Mini-Stars™ Range and Colours (Available Now)
The Mini-Stars™ range is now available from your local ICCONS dealer, with a new selection of Colorbond® colours range.
| Item No. | Item Description | Inner Box Qty | Outer Box Qty |
| SDHXMS1030C4 | 167 - SD HEX MINI STARS METAL/TIMBER C4 10-16 X 30 | 500 | 2,000 |
| 167-BA | SD HEX COARSE MINI STARS C4 10-16 X 30 BASALT | 500 | 2,000 |
| 167-BG | SD HEX COARSE MINI STARS C4 10-16 X 30 BLUEGUM | 500 | 2,000 |
| 167-CC | SD HEX COARSE MINI STARS C4 10-16 X 30 CLASSIC CREAM | 500 | 2,000 |
| 167-CG | SD HEX COARSE MINI STARS C4 10-16 X 30 COTTAGE GREEN | 500 | 2,000 |
| 167-CO | SD HEX COARSE MINI STARS C4 10-16 X 30 COVE | 500 | 2,000 |
| 167-DM | SD HEX COARSE MINI STARS C4 10-16 X 30 DOMAIN | 500 | 2,000 |
| 167-DO | SD HEX COARSE MINI STARS C4 10-16 X 30 DEEP OCEAN | 500 | 2,000 |
| 167-DU | SD HEX COARSE MINI STARS C4 10-16 X 30 DUNE | 500 | 2,000 |
| 167-DW | SD HEX COARSE MINI STARS C4 10-16 X 30 DOVER WHITE | 500 | 2,000 |
| 167-EH | SD HEX COARSE MINI STARS C4 10-16 X 30 EVENING HAZE | 500 | 2,000 |
| 167-GU | SD HEX COARSE MINI STARS C4 10-16 X 30 GULLY | 500 | 2,000 |
| 167-IS | SD HEX COARSE MINI STARS C4 10-16 X 30 IRONSTONE | 500 | 2,000 |
| 167-JA | SD HEX COARSE MINI STARS C4 10-16 X 30 JASPER | 500 | 2,000 |
| 167-LO | SD HEX COARSE MINI STARS C4 10-16 X 30 LOFT | 500 | 2,000 |
| 167-MA | SD HEX COARSE MINI STARS C4 10-16 X 30 MANGROVE | 500 | 2,000 |
| 167-MO | SD HEX COARSE MINI STARS C4 10-16 X 30 MONUMENT | 500 | 2,000 |
| 167-MR | SD HEX COARSE MINI STARS C4 10-16 X 30 MANOR RED | 500 | 2,000 |
| 167-NS | SD HEX COARSE MINI STARS C4 10-16 X 30 NIGHT SKY | 500 | 2,000 |
| 167-PA | SD HEX COARSE MINI STARS C4 10-16 X 30 PAPERBARK | 500 | 2,000 |
| 167-PE | SD HEX COARSE MINI STARS C4 10-16 X 30 PALE EUCALYPT | 500 | 2,000 |
| 167-SA | SD HEX COARSE MINI STARS C4 10-16 X 30 SANDBANK | 500 | 2,000 |
| 167-SG | SD HEX COARSE MINI STARS C4 10-16 X 30 SHALE GREY | 500 | 2,000 |
| 167-SM | SD HEX COARSE MINI STARS C4 10-16 X 30 SURF MIST | 500 | 2,000 |
| 167-SO | SD HEX COARSE MINI STARS C4 10-16 X 30 SOUTHERLY | 500 | 2,000 |
| 167-TE | SD HEX COARSE MINI STARS C4 10-16 X 30 TERRAIN | 500 | 2,000 |
| 167-WA | SD HEX COARSE MINI STARS C4 10-16 X 30 WALLABY | 500 | 2,000 |
| 167-WG | SD HEX COARSE MINI STARS C4 10-16 X 30 WOODLAND GREY | 500 | 2,000 |
| 167-WI | SD HEX COARSE MINI STARS C4 10-16 X 30 WILDERNESS | 500 | 2,000 |
| 167-WS | SD HEX COARSE MINI STARS C4 10-16 X 30 WINDSPRAY | 500 | 2,000 |
Mini-Stars™ FAQ
1. What are ICCONS Mini-Stars™?
Mini-Stars™ are purpose-built screws designed for mini corrugated cladding profiles. They provide a secure, aesthetic valley fixing solution for both steel and timber substrates.
2. What makes Mini-Stars™ different from standard screws?
Unlike standard screws, Mini-Stars™ are designed with a smaller hex head and under-head contour that sits neatly in the narrow valleys of mini corrugated sheets. This allows for a flush, washer-free finish that enhances the look of architectural and façade cladding.
3. Can Mini-Stars™ be used on both steel and timber?
Yes. Mini-Stars™ feature a universal drill-point, making them suitable for fixing mini corrugated sheeting to steel or timber frames and perfect for mixed-material projects.
4. Are washers required when installing Mini-Stars™?
No. The under-head design eliminates the need for a washer, allowing the screw to sit flush within the cladding valley while maintaining a clean finish.
5. What corrosion protection do Mini-Stars™ offer?
Mini-Stars™ are rated for Category 4 corrosion resistance, making them ideal for external applications where long-term durability is essential.
6. What finishes and colours are available?
Mini-Stars™ are available in both plain and painted finishes, with standard COLORBOND® colours to match a wide range of architectural profiles and cladding systems.
7. What tool is required to install Mini-Stars™?
They are designed to drive easily with a 1/4" Hex Nut Setter. ICCONS recommends using the BS-510 or BI-510 Impact Nut Setters for optimum installation performance.
8. Where can Mini-Stars™ be used?
They’re ideal for:
- Architectural and facade cladding
- Internal and external wall cladding
- Shed construction
- Fencing and screening systems
- Mini corrugated sheeting projects
9. Are Mini-Stars™ available now?
Yes! Available now through ICONX and authorised ICCONS distributors.
10. Where to Buy Mini-Stars™ Screw in Australia
You can purchase ICCONS Mini-Stars™ screws through authorised ICCONS distributors across Australia. Use the ICCONS online Store Locator to find your nearest distributor.
