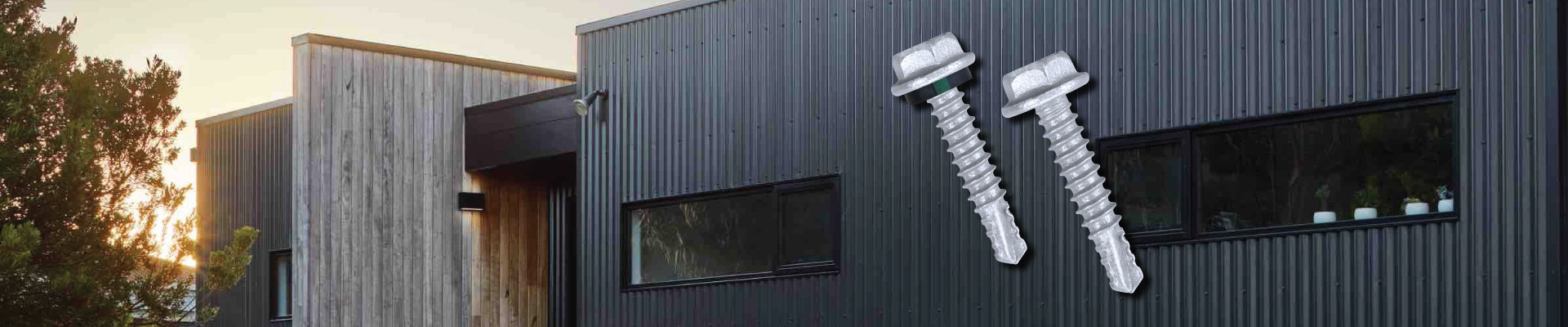

ICCONS® presents the Design-Stars™, a unique self-drilling hex head screw ideal for various cladding applications where an aesthetic, low-profile appearance is required.
Designed for flat or valley fixing to various light gauge steel profiles to steel or timber. It’s galvanised class 4 coating makes it ideal for internal and external applications.
Incorporating a hardened steel universal drill point (for timber or steel substrates), and coarse thread enabling the screw to drill and tap its own thread without the need to pre-drill.
FEATURES:
- Low profile head for aesthetic appearance
- Rapid installation
- Coarse thread for fast install
- Galvanised class 4 for internal and external applications
- Universal drill point for fastening to steel or timber substrates
- Available with or without EPDM sealing washer
- Full COLORBOND® colour range available
APPLICATIONS:
- Flat or valley fixing light gauge steel

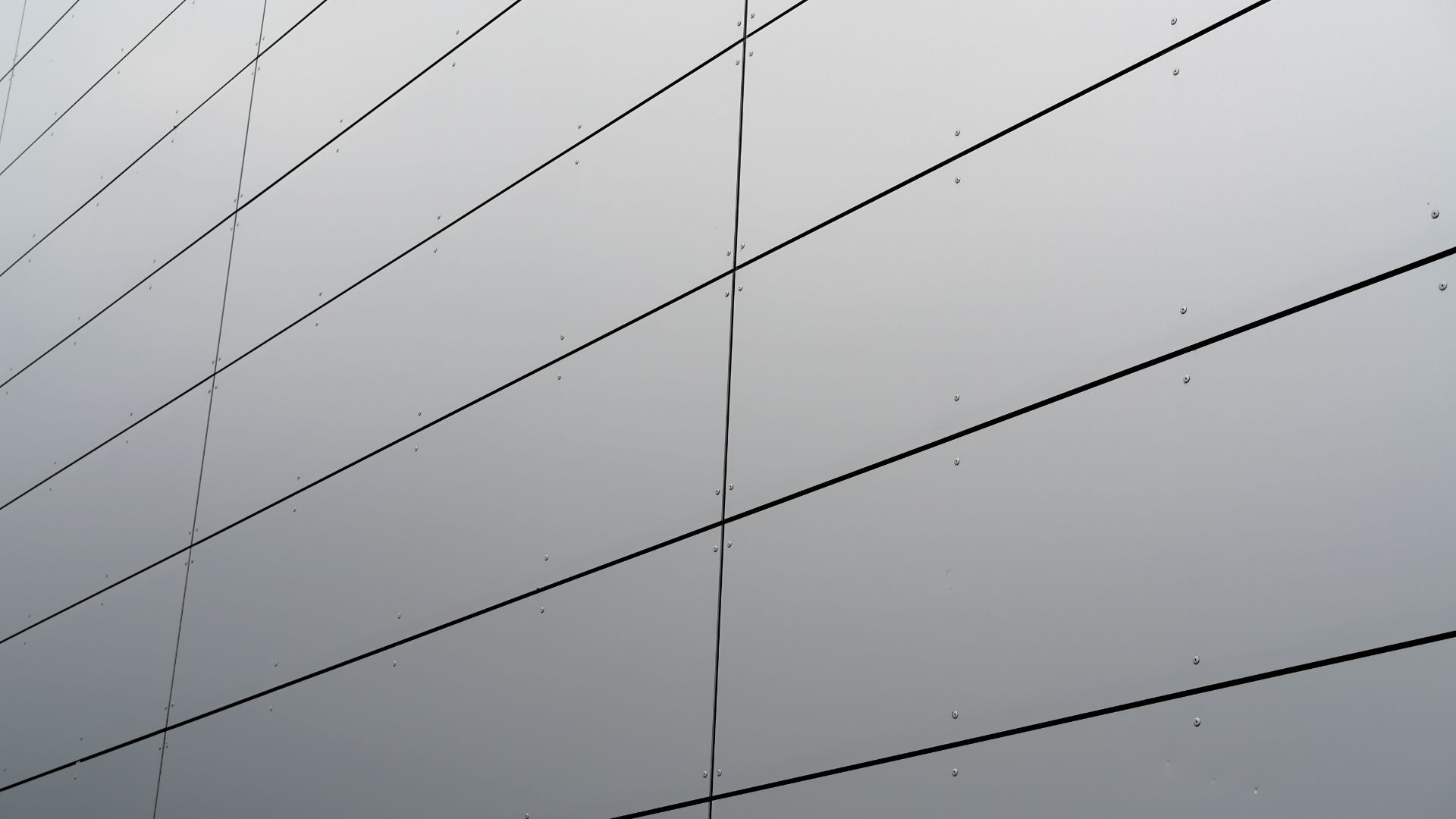

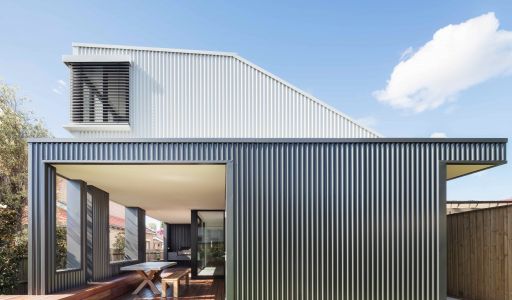

- Cladding
- Architectural panels
- Fences, gates and other applications requiring a low-profile finish
- Internal and external applications
If you have any questions about the range, please contact your local Technical Sales Specialist, or your local branch here.
| Item No. | Item Description | InnerBox | OuterBox |
| SDHXLP1025C4 | 188 - SD HEX LOW PROFILE COARSE C4 10-16 X 25 | 1000 | 3000 |
| SDHXLP1025C4W | 188W - SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 | 1000 | 3000 |
| 188W-BA | SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 BASALT | 1000 | 3000 |
| 188W-BG | SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 BLUEGUM | 1000 | 3000 |
| 188W-CC | SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 CLASSIC CREAM | 1000 | 3000 |
| 188W-CG | SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 COTTAGE GREEN | 1000 | 3000 |
| 188W-CO | SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 COVE | 1000 | 3000 |
| 188W-DM | SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 DOMAIN | 1000 | 3000 |
| 188W-DO | SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 DEEP OCEAN | 1000 | 3000 |
| 188W-DU | SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 DUNE | 1000 | 3000 |
| 188W-DW | SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 DOVER WHITE | 1000 | 3000 |
| 188W-EH | SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 EVENING HAZE | 1000 | 3000 |
| 188W-GU | SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 GULLY | 1000 | 3000 |
| 188W-IS | SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 IRONSTONE | 1000 | 3000 |
| 188W-JA | SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 JASPER | 1000 | 3000 |
| 188W-LO | SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 LOFT | 1000 | 3000 |
| 188W-MA | SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 MANGROVE | 1000 | 3000 |
| 188W-MO | SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 MONUMENT | 1000 | 3000 |
| 188W-MR | SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 MANOR RED | 1000 | 3000 |
| 188W-NS | SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 NIGHT SKY | 1000 | 3000 |
| 188W-PA | SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 PAPERBARK | 1000 | 3000 |
| 188W-PE | SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 PALE EUCALYPT | 1000 | 3000 |
| 188W-SA | SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 SANDBANK | 1000 | 3000 |
| 188W-SG | SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 SHALE GREY | 1000 | 3000 |
| 188W-SM | SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 SURF MIST | 1000 | 3000 |
| 188W-SO | SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 SOUTHERLY | 1000 | 3000 |
| 188W-TE | SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 TERRAIN | 1000 | 3000 |
| 188W-WA | SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 WALLABY | 1000 | 3000 |
| 188W-WG | SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 WOODLAND GREY | 1000 | 3000 |
| 188W-WI | SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 WILDERNESS | 1000 | 3000 |
| 188W-WS | SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 WINDSPRAY | 1000 | 3000 |
