What Are Self-Drilling Screws (SDS / Tek Screws)?

Self-drilling screws, also known as SDS or Tek screws, are engineered and manufactured with a built-in drill point, allowing them to drill and tap its own thread through materials like steel, light gauge steel (LGS) and sometimes timber without requiring a pre-drilled hole.

This feature speeds up installation while ensuring a strong and precise fastening. Depending on your application they are available in a coarse thread and a fine thread with multiple head styles.

Key Features of Self-Drilling Screws (SDS):

  • Self-Drilling Point - Eliminates the need for pre-drilling.
  • Timesaving - Drills and taps thread in one
  • Versatile Applications - Commonly used in roofing, cladding, fabrication and general construction applications.
  • Wider Range - Different head and thread styles for application specific usage.

Self-Drilling Screws vs Self-Tapping Screws

All screws can be considered self -tapping screws, however the SDS screw has have a drill tip that drills and threads in one, whereas other screw types may require a predrilled hole.

FeatureSelf-Drilling Screws (Tek Screws)Self-Tapping Screws
Tip DesignIntegrated drill point Sharp pencil like point
Pre-Drilling Required?NoYes, in steel and other hard materials a pilot hole is required
Best forSteel-to-steel/ light gauge steel, steel-to-wood (in certain applications)Plastic, wood, thin steel, aluminium, and softer materials


In summary, Self-Drilling Screws (SDS) are a type of self-tapping screw, but their integrated drill point allows them to drill through tougher materials without requiring a separate 'pilot hole' drilling step.

How Much Weight Can a Self-Drilling Screw Hold?

The load-bearing capacity of a Self-Drilling Screws depends on several factors:

  1. Material (Grade and Thickness) - The grade and thickness of the material play a significant role in overall load performance.
  2. Screw Thread Type (TPI) - The choice between coarse and fine thread screws can affect how load is distributed and supported.
  3. Screw Diameter (Gauge) - Screws with a larger diameter generally have a greater capacity to support heavier loads.
  4. Screw Length (Embedment Depth) - Increased embedment depth in timber applications may enhance load-bearing capability.
  5. Installation Method - Appropriate drilling speed and pressure during installation can contribute to consistent and reliable performance.

Typical Weight Capacities

See ICCONS Screw Guide for detailed information

  • 12 Gauge Self-Drilling Screw in 1.5mm (G450) steel has an ultimate average pullout value of 3.7kN, equating to 377Kg in tension.
  • 12 Gauge Self-Drilling Screw in 3.0mm (G450) steel has an ultimate average pullout value of 8.6kN, equating to 877Kg in tension.

NOTE: Ultimate average pull-out loads for SDS and Type 17 Screws must be divided by an appropriate safety factor (typically 2-3) in order to determine either design or recommended loads. ICCONS® screw technical data should also be reviewed and approved by a design professional responsible for the given application prior to product use.

Benefits of Using Self-Drilling Screws

Self-Drilling Screws provide a range of advantages for construction and DIY projects:

  • Time-Saving – Eliminates the need to drill pilot holes, speeding up installation.
  • Strong and Reliable Fastening – Consistent performance if installed properly.
  • Coating Options – Available in zinc, galvanised, and stainless-steel options for various corrosion resistance options.


Common Applications of Self-Drilling Screws

Self-Drilling Screw are widely used across the construction industry due to their ease and reliability. Common applications include:

  • Roofing and Cladding - Fast and reliable fixing of steel roof sheet and cladding.
  • Steel Framing - Essential for assembling light gauge steel frame construction.

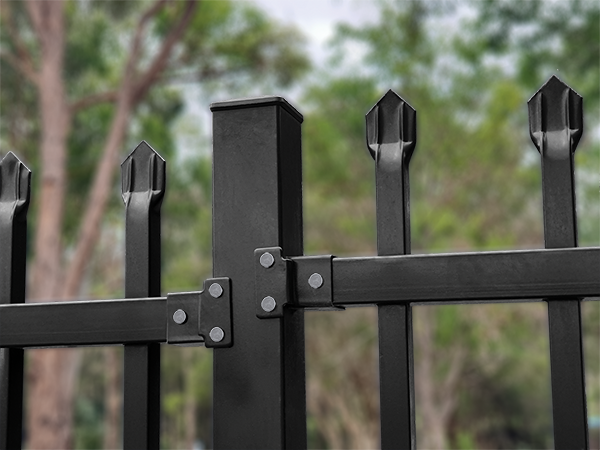

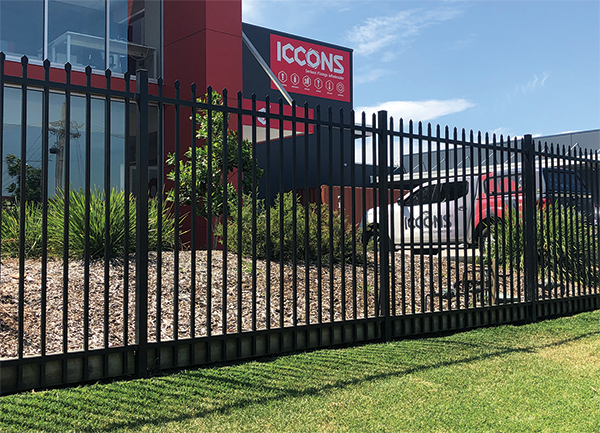

  • Fencing and Outdoor Structures – Ideal for various fencing applications.
  • General Construction – SDS or Tek screw versatility mean they can be used in countless general construction applications.



Choosing the Right Self-Drilling Screw for Your Project

Selecting the right Self-Drilling Screw involves considering several key factors:

  1. Material Compatibility – Ensure the screw is suited for your material (e.g., steel, wood, or composite).
  2. Corrosion Resistance – Refer ICCONS corrosivity category and screw recommendation to select the right screw.

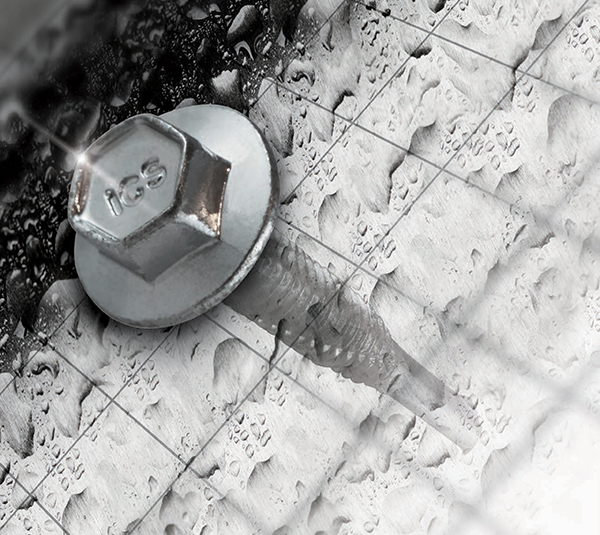

  3. Head Type – Hex head screws provide better installation and clamping performance, while countersunk screws offer a flush finish.
  4. Screw Length and Diameter (Gauge) – Match screw size to material thickness and load requirements.


Explore ICCONS’ comprehensive range of Self-Drilling Screws (SDS), tailored for various construction applications or ask your local ICCONS Technical Specialist for advice.

FAQs About Self-Drilling Screw

Are Self-Drilling Screw and Tek Screws the Same?

Yes, Self-Drilling Screws and Tek Screws are terms often used interchangeably.

How Do Self-Drilling Screws Differ from Self-Tapping Screws?

Self-drilling screws have a drill point that eliminates the need for a pilot hole, whereas self-tapping screws require a pre-drilled hole in hard materials.

How Do I Select the Right Screw Size?

Choose screw size based on material thickness and project requirements. Always refer to manufacturer guidelines.

Can Self-Drilling Screw Be Reused?

While they can be removed it is not recommended to use Self-Drilling Screw more than once.

Are Self-Drilling Screw Suitable for Outdoor Use?

Yes, but opt for corrosion-resistant finishes such as stainless steel or galvanised finishes for long-term durability in outdoor environments.
