Thunderbolt Pro-XTM - Countersunk Head

NCC
Thunderbolt Pro-XTM - Countersunk Head

Product Summary

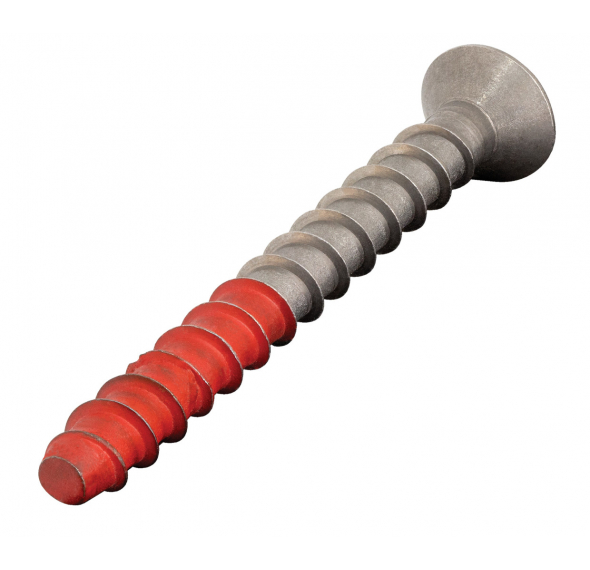

ICCONS Thunderbolt Pro-XTM Countersunk Head is an approved high tensile screw-in, self-tapping concrete and masonry anchor for use in the residential, commercial and infrastructure spaces. Installation is quick and easy, simply drill, clean the hole and screw in the anchor. The Thunderbolt Pro-XTM is a great entry-level approved screw-bolt with ETA assessments for cracked concrete and fire performance (please see technical data for specification requirements).

ICCONS Thunderbolt Pro-XTM achieves the Highest Loads while generating low expansion forces. The Thunderbolt Pro-XTM is also completely removable making it ideal for temporary applications. Unlike mechanical expansion anchors, the Thunderbolt Pro-XTM keys into the base material for the entire depth and diameter of the hole, not just at the base of the hole. This reduces high energy forces within the concrete allowing close anchor spacing and near-to edge anchor locations. Sharp thread forming teeth ensure the most secure connection in hard base materials. The Thunderbolt Pro-XTM is a truly versatile anchor, as it can be installed in a whole range of base materials such as concrete, block, brick, timber, marble, and stone, just to name a few.

Exclusively for ICONX Account Holders. Apply Today.

Browse the ICCONS Dealer Network to find one near you.

  • Product List
  • Features & Applications
  • Downloads
  • Installation
  • Video

Specifications

Part No / Finish
Description
Drill Diameter
Head Type
Embedment Depth
Max Material Thickness
Head Width
ETA Approval
Quantity
UoM
Price

SS
SXTMCS06080SS-A
THUNDERBOLT XTM CSK 6 X 80MM 316 SS - ETA
6
CSK / TX40
70
10
15.5
RNSS
100
SXTMCS08095SS-A
THUNDERBOLT XTM CSK 8 X 95MM 316 SS - ETA
8
CSK / TX45
85
10
18.1
Option 1
100

Features & Applications

Features
• Available in Zinc Plated Carbon Steel, Galvanised Carbon Steel or Bi-metal Stainless Steel 316 A4
• Perfect for internal or external applications
• Fast installation at reduced torque
• Removable
• Stamped Hex Head for fast and accurate identification
• Flanged Hex head locking serrations designed to resist loosening and improve dynamic load performance
• Chamfered tip centres anchor and aids in installation
• Designed for cracked and non-cracked concrete
• No expansion, ideal for close-to-edge applications
• Complies with AS5216:2018 (Design of post-installed and cast-in fastenings in concrete – refer to select range)

Applications
• Structural fixings in cracked and uncracked concrete
• Tunnel fit out
• Cable tray support systems
• Seismic bracing of MEP systems
• Fastening steel strut channel and support straps for MEP
• Facade structures
• Guard rails
• Bollards and protective barriers
• Machinery and plant equipment
• Stadium and theatre seating
• Acoustic barriers
• balustrades and hand rails
• Scaffolding ties
• Formwork
• Plumbing and fire services
• Steel frame construction
• Timber frame construction
• Glazing, windows and storefronts
• Racking and shelving
• Fixings wood structures in concrete

Downloads

Installation

Installation

  • Use the correct diameter drill bit
  • Drill a hole to the required anchor embedment depth, plus at least one anchor diameter deeper
  • DO NOT use a worn drill bit outside tolerance specification
  • Ensure the hole is drilled perpendicular to the concrete, with a maximum deviation up to 5 degrees. Failure to do so may cause anchor breakage
  • Clean dust and other materials from the hole. Use ICCONS Blow Pump for a perfect result
  • Use a torque wrench or an impact driver
  • Ensure correct clearance hole in the fixture
  • Apply pressure against the fixing
  • Rotate to engage the first thread
  • Tighten the anchor until it is firmly seated
  • When using an impact driver DO NOT overtighten! Follow the torque guidance table, failure to comply may result in anchor breakage. Refer to ICCONS TDS for further information

Video

Video

ICCONS Thunderbolt Pro-XTM Countersunk Head is the latest approved high tensile screw-in, self-tapping concrete and masonry anchor for use in a wide range of materials used in the construction industry. Installation is quick and easy, simply drill, clean the hole and screw in the anchor. If you are after the best general-purpose Screw Bolt in the business, ICCONS Thunderbolt Pro-XTM Countersunk Head is your anchor. ICCONS Thunderbolt Pro-XTM achieves the Highest Loads while generating low expansion forces. The Thunderbolt Pro-XTM is also completely removable making it ideal for temporary applications. Unlike mechanical expansion anchors, the Thunderbolt Pro-XTM keys into the base material for the entire depth and diameter of the hole, not just at the base of the hole. This reduces high energy forces within the concrete allowing close anchor spacing and near-to edge anchor locations. Sharp thread forming teeth ensure the most secure connection in hard base materials. The Thunderbolt Pro-XTM is a truly versatile anchor, as it can be installed in a whole range of base materials such as concrete, block, brick, timber, marble, and stone, just to name a few. The highly engineered design of ICCONS Thunderbolt Pro-XTM is the result of extensive testing and provides market-leading load performance. ICCONS Thunderbolt Pro-XTM is a one-piece, fast, efficient and cost-effective fixing solution for any job.

ICCONS Thunderbolt Pro-XTM Countersunk Head is the latest approved high tensile screw-in, self-tapping concrete and masonry anchor for use in a wide range of materials used in the construction industry. Installation is quick and easy, simply drill, clean the hole and screw in the anchor. If you are after the best general-purpose Screw Bolt in the business, ICCONS Thunderbolt Pro-XTM Countersunk Head is your anchor. ICCONS Thunderbolt Pro-XTM achieves the Highest Loads while generating low expansion forces. The Thunderbolt Pro-XTM is also completely removable making it ideal for temporary applications. Unlike mechanical expansion anchors, the Thunderbolt Pro-XTM keys into the base material for the entire depth and diameter of the hole, not just at the base of the hole. This reduces high energy forces within the concrete allowing close anchor spacing and near-to edge anchor locations. Sharp thread forming teeth ensure the most secure connection in hard base materials. The Thunderbolt Pro-XTM is a truly versatile anchor, as it can be installed in a whole range of base materials such as concrete, block, brick, timber, marble, and stone, just to name a few. The highly engineered design of ICCONS Thunderbolt Pro-XTM is the result of extensive testing and provides market-leading load performance. ICCONS Thunderbolt Pro-XTM is a one-piece, fast, efficient and cost-effective fixing solution for any job.
